直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
06025VA-12Q-AU-03FAN AXIAL 60X25MM 12VDC WIRE |
1,990 |
|
数据手册 |
06025VA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 39.2 CFM (1.10m³/min) | 0.980 in H2O (244.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 54.0dB | 6 W | 9200 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cULus, VDE | - |
|
AFB0824SHFAN AXIAL 80X25.4MM 24VDC WIRE |
381 |
|
数据手册 |
AFB | Tray | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 46.6 CFM (1.30m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 3.84 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
9GA0424P3M001FAN AXIAL 40X28MM 24VDC WIRE |
1,790 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 1.040 in H2O (258.0 Pa) | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 47.0dB(A) | 2.64 W | 12500 RPM | 4 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.117 lb (53.07 g) |
|
109P0412J3023FAN AXIAL 40X28MM 12VDC WIRE |
1,544 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 16.2 CFM (0.454m³/min) | 0.843 in H2O (210.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 4.2 W | 12500 RPM | 2 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
OD7025-12HHB10AFAN AXIAL 70X25MM 12VDC WIRE |
761 |
|
数据手册 |
OD7025 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 51.0 CFM (1.43m³/min) | - | Ball | Tubeaxial | PWM Control, Speed Sensor (Tach) | 46.0dB | 5.04 W | 5000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.198 lb (89.81 g) |
|

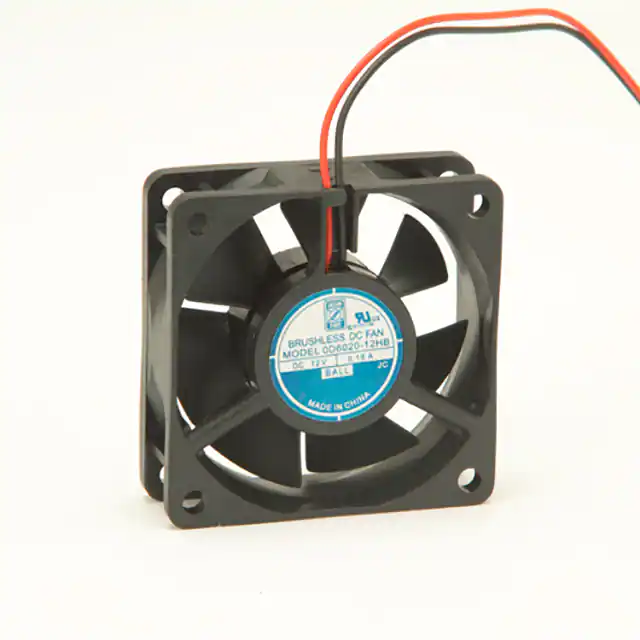

OD6020-24HB02AFAN AXIAL 60X20MM 24VDC WIRE |
200 |
|
数据手册 |
OD6020 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 18.0 CFM (0.504m³/min) | 0.140 in H2O (34.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.0dB | - | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD4010-12HB02AFAN AXIAL 40X10.5MM 12VDC WIRE |
132 |
|
数据手册 |
OD4010 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.50mm | 9.2 CFM (0.258m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 33.4dB | 720 mW | 8000 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.441 lb (200.00 g) |
|

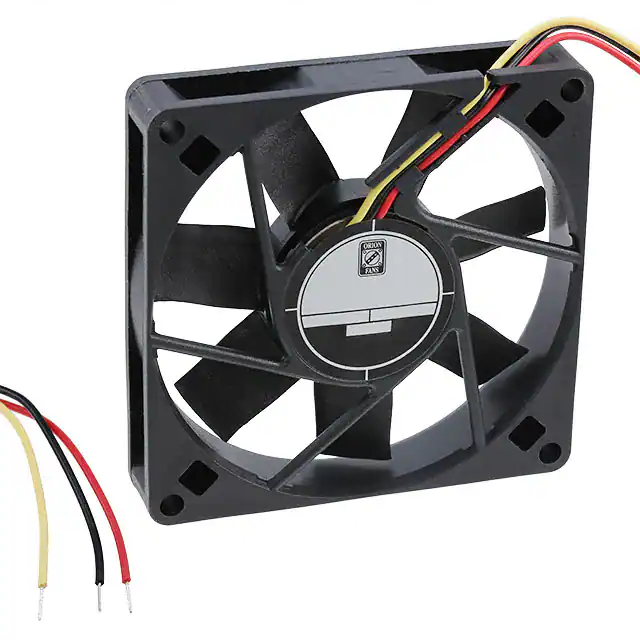

OD8015-24HB02AFAN AXIAL 80X15.5MM 24VDC WIRE |
319 |
|
数据手册 |
OD8015 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.50mm | 30.0 CFM (0.840m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 33.0dB | 2.28 W | 3200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.137 lb (62.14 g) |
|

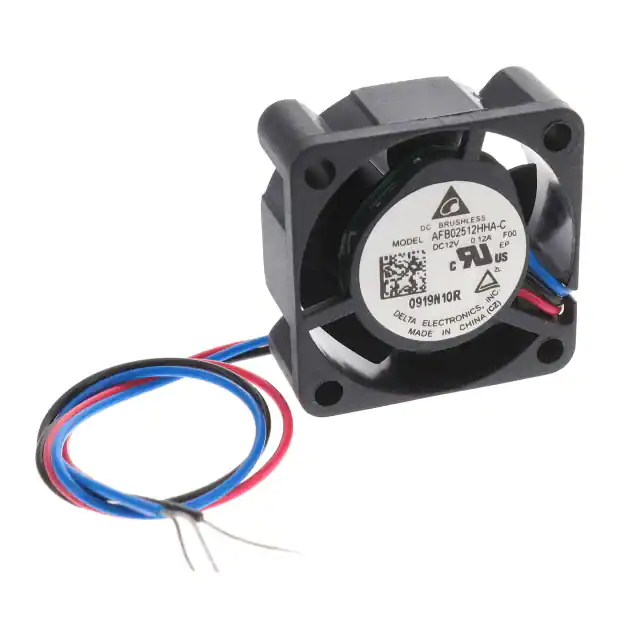

AFB02512HHA-CF00FAN AXIAL 25X10MM 12VDC WIRE |
380 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 28.0dB(A) | 960 mW | 13000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.018 lb (8.16 g) |
|

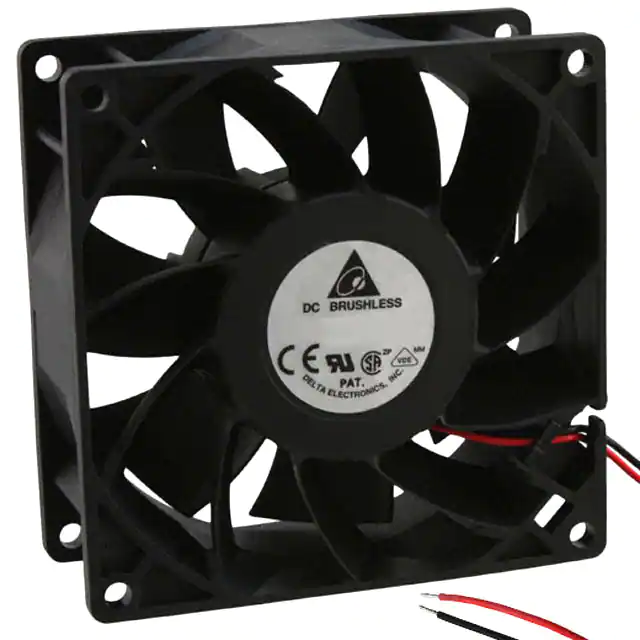

FFB0912HHEFAN AXIAL 92X38MM 12VDC WIRE |
534 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 38.00mm | 71.7 CFM (2.01m³/min) | 0.298 in H2O (74.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.5dB(A) | 4.2 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
9A0812G4D01FAN AXIAL 80X25MM 12VDC WIRE |
165 |
|
数据手册 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 53.0 CFM (1.48m³/min) | 0.323 in H2O (80.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 4.56 W | 4500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
DC0803212U2B-2T0FAN AXIAL 80X32MM 12VDC WIRE |
103 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 86.9 CFM (2.43m³/min) | 0.890 in H2O (221.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 54.0dB(A) | 9.6 W | 6800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0624H7D01FAN AXIAL 60X15MM 24VDC WIRE |
780 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.153 in H2O (38.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 32.0dB(A) | 1.44 W | 4100 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|
MR3010H05B1-RSRFAN AXIAL 30X10MM BALL 5VDC WIRE |
427 |
|
数据手册 |
MR3010 | Box | Active | 5VDC | Square - 30mm L x 30mm H | 10.00mm | 6.4 CFM (0.179m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 31.6dB(A) | - | 10000 RPM | 3 Wire Leads | - | - | CE, cUL, TUV, UL | 0.018 lb (8.16 g) |
|
G4020H24B-RSR-EMFAN AXIAL 40X20MM 24VDC WIRE |
266 |
|
数据手册 |
G4020 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.0 CFM (0.308m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 7000 RPM | 2 Wire Leads | IP57 - Dust Protected, Waterproof | - | CE, cUL, TUV, UL | 0.062 lb (28.12 g) |
|
PF80251V1-1000U-A99FAN AXIAL 80X25MM 12VDC WIRE |
627 |
|
数据手册 |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.7dB(A) | 3.72 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|

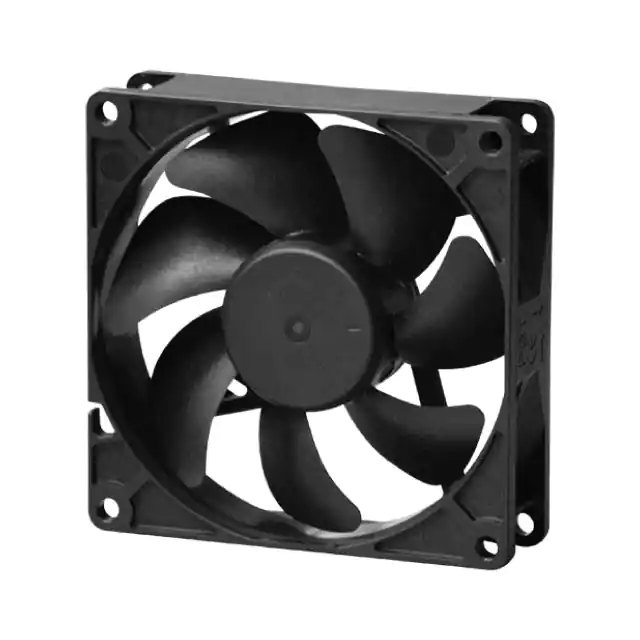

PF92251V1-1000U-G99FAN AXIAL 92X25MM 12VDC WIRE |
182 |
|
数据手册 |
MagLev® PF | Bulk | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 45.5dB(A) | 4.44 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.234 lb (106.14 g) |
|
PF80251V1-1000U-G99FAN AXIAL 80X25MM 12VDC WIRE |
101 |
|
数据手册 |
MagLev® PF | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 60.0 CFM (1.68m³/min) | 0.410 in H2O (102.1 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.7dB(A) | 3.72 W | 4800 RPM | 3 Wire Leads | - | - | CE, CUR, TUV, UL | 0.201 lb (91.17 g) |
|

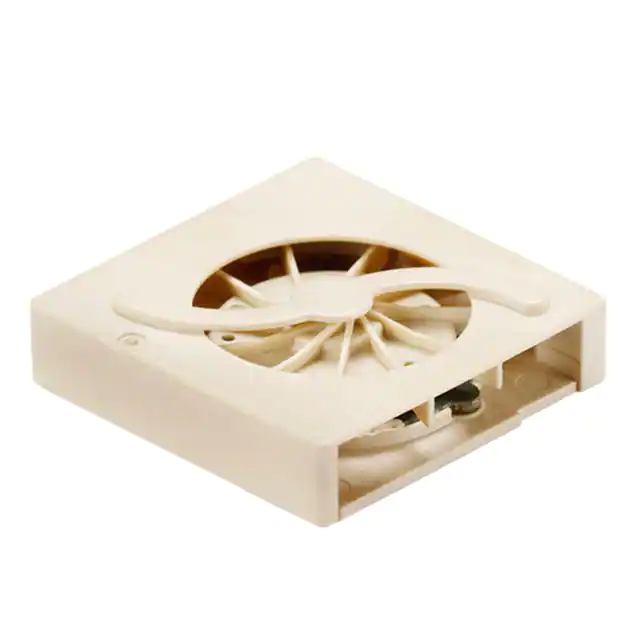

UB3F3-700TCFAN BLOWER 15X3MM VAPO 3VDC WIRE |
807 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Active | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.160 CFM (0.004m³/min) | 0.116 in H2O (28.8 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 30.0dB(A) | 100 mW | 14000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|

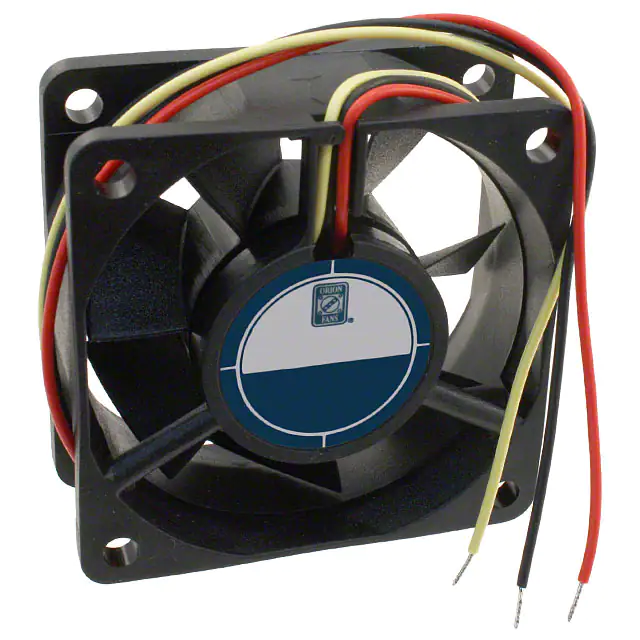

OD6025-12HB02AFAN AXIAL 60X25MM 12VDC WIRE |
636 |
|
数据手册 |
OD6025 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.0 CFM (0.700m³/min) | 0.220 in H2O (54.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 30.0dB(A) | 1.8 W | 3975 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.141 lb (63.96 g) |
