直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AFC0712DB-F00FAN AXIAL 70X15MM 12VDC WIRE Delta Electronics |
1,437 |
|
数据手册 |
AFC | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 42.0 CFM (1.18m³/min) | 0.327 in H2O (81.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 46.5dB(A) | 4.2 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
FFB0924SHEFAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
4,142 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 100.3 CFM (2.81m³/min) | 0.572 in H2O (142.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 52.5dB(A) | 9.6 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
FFB0412UHN-TYYKFAN AXIAL 40X28MM 12VDC WIRE Delta Electronics |
1,487 |
|
数据手册 |
FFB | Box | Not For New Designs | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 27.1 CFM (0.759m³/min) | 2.111 in H2O (525.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 58.5dB(A) | 7.8 W | 18500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.104 lb (47.17 g) |
|
FFB0924EHE-F00FAN AXIAL 92X38MM 24VDC WIRE Delta Electronics |
2,009 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 110.2 CFM (3.09m³/min) | 0.665 in H2O (165.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 55.0dB(A) | 12 W | 4800 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.437 lb (198.00 g) |
|
AFB1212HHEFAN AXIAL 120X38MM 12VDC WIRE Delta Electronics |
3,815 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 120.1 CFM (3.36m³/min) | 0.354 in H2O (88.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 44.0dB(A) | 5.52 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.565 lb (256.28 g) |
|
FFB1212EH-F00FAN AXIAL 120X25.4MM 12VDC WIRE Delta Electronics |
1,053 |
|
数据手册 |
FFB | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.40mm | 150.3 CFM (4.21m³/min) | 0.489 in H2O (121.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 56.4dB(A) | 17.4 W | 4000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.452 lb (205.02 g) |
|
FFB0812SHFAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
4,612 |
|
数据手册 |
FFB | Tray | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 48.6dB(A) | 6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.253 lb (114.76 g) |
|

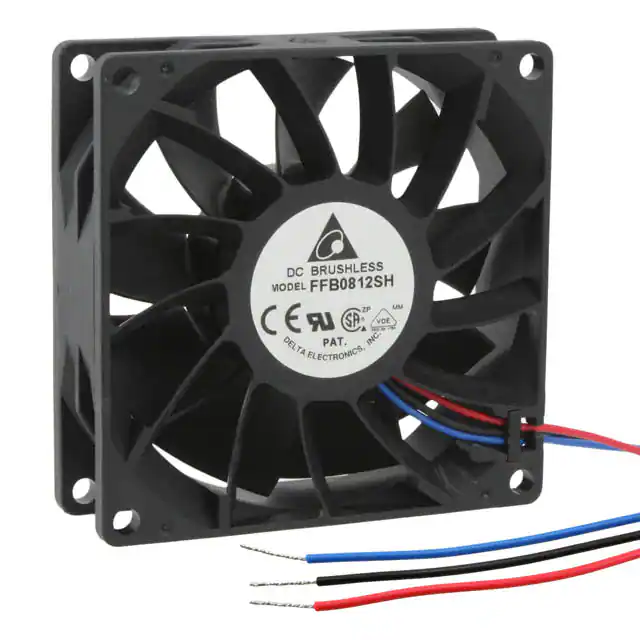

FFB0812SH-R00FAN AXIAL 80X25.4MM 12VDC WIRE Delta Electronics |
2,771 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 67.0 CFM (1.88m³/min) | 0.392 in H2O (97.6 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 48.6dB(A) | 6 W | 4500 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.253 lb (114.76 g) |
|
|
PFB0824UHEFAN AXIAL 80X38MM 24VDC WIRE Delta Electronics |
3,762 |
|
数据手册 |
PFB | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 107.3 CFM (3.00m³/min) | 1.368 in H2O (340.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 61.0dB(A) | 18.48 W | 7500 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.441 lb (200.03 g) |
|
FFB1224SHEFAN AXIAL 120X38MM 24VDC WIRE Delta Electronics |
4,287 |
|
数据手册 |
FFB | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 170.9 CFM (4.79m³/min) | 0.563 in H2O (140.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 56.5dB(A) | 19.2 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.816 lb (370.13 g) |
