直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN-PX12-16SILENT 12 PWM - BLACK Gelid Solutions LLC |
1,929 |
|
数据手册 |
FN | Retail Package | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 64.5 CFM (1.81m³/min) | 0.063 in H2O (15.7 Pa) | Hydrodynamic | Tubeaxial | PWM Control | 25.5dB(A) | - | 750/1600 RPM | 4 Position Rectangular Connector | - | - | CE | - |
|
FN-GALE-02GALE EXTREME MINING FAN ASIC Gelid Solutions LLC |
4,323 |
|
数据手册 |
FN | Retail Package | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 195.0 CFM (5.52m³/min) | 0.945 in H2O (235.4 Pa) | Ball | Tubeaxial | PWM Control | 60.0dB(A) | 33.6 W | 500/6000 RPM | 4 Position Rectangular Connector | - | - | - | - |
|

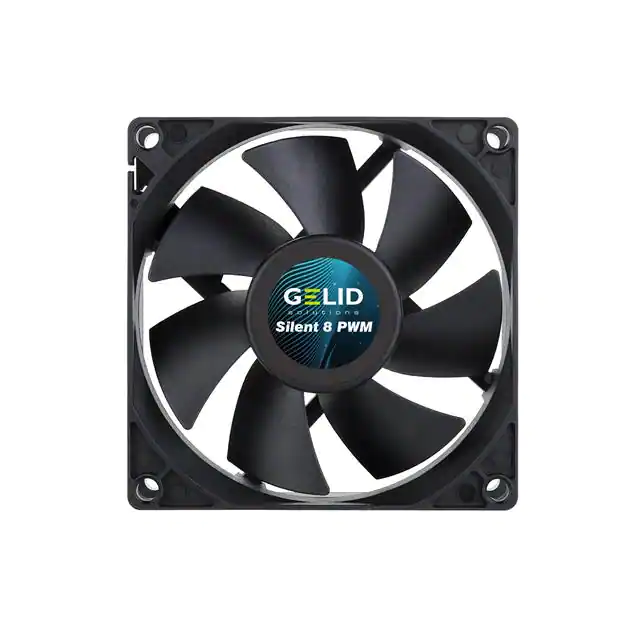

FN-PX08-16SILENT 8 BLACK Gelid Solutions LLC |
2,442 |
|
数据手册 |
FN | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 21.0 CFM (0.588m³/min) | 0.041 in H2O (10.3 Pa) | Hydrodynamic | Tubeaxial | - | 18.9dB(A) | 960 mW | 1600 RPM | 3 Position Rectangular Connector | - | - | - | - | |
|
FN-PX09-16SILENT 9 BLACK Gelid Solutions LLC |
3,333 |
|
数据手册 |
Silent 9 Black | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 31.3 CFM (0.876m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included | 20.0dB(A) | - | 1500 RPM | 3 Position Rectangular Connector | - | - | CE | - | |
|
|
FN-PX08-20FAN AXL 80X25MM 12VDC RECT CONN Gelid Solutions LLC |
1,618 |
|
数据手册 |
Silent 8 PWM | Obsolete | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 27.0 CFM (0.756m³/min) | 0.065 in H2O (16.2 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 21.5dB(A) | - | 2000 RPM | 4 Position Rectangular Connector | - | - | CE | - | |
|

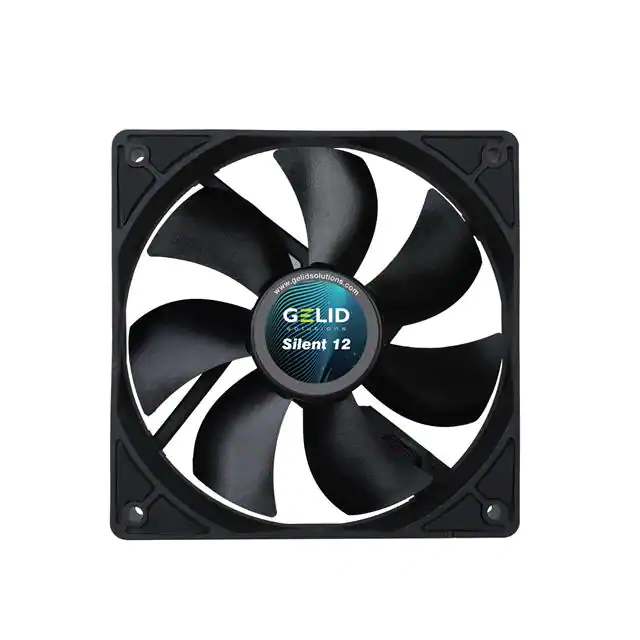

FN-PX12-11SILENT 12 BLACK Gelid Solutions LLC |
3,364 |
|
数据手册 |
FN | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 40.3 CFM (1.13m³/min) | 0.063 in H2O (15.7 Pa) | Hydrodynamic | Tubeaxial | - | 20.2dB(A) | - | 1000 RPM | 3 Position Rectangular Connector | - | - | CE | - | |
|

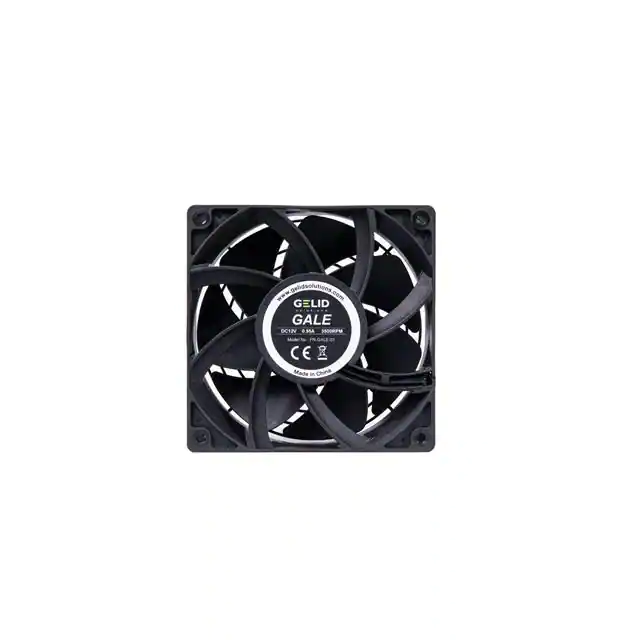

FN-GALE-01GALE MINING FAN Gelid Solutions LLC |
1,597 |
|
数据手册 |
FN | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 110.0 CFM (3.08m³/min) | 0.472 in H2O (117.6 Pa) | Ball | Tubeaxial | PWM Control | 45.0dB(A) | 7 W | 500/3500 RPM | 4 Position Rectangular Connector | - | - | - | - |
