直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FN-SX04-42FAN AXL 40X10MM 12VDC RECT CONN Gelid Solutions LLC |
186 |
|
数据手册 |
Silent 4 | Retail Package | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 4.5 CFM (0.126m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 18.9dB(A) | - | 4200 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|
|
FN-SX07-22FAN AXL 70X15MM 12VDC RECT CONN Gelid Solutions LLC |
1,952 |
|
数据手册 |
Silent 7 | Retail Package | Active | 12VDC | Square - 70mm L x 70mm H | 15.00mm | 19.8 CFM (0.554m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 21.8dB(A) | - | 2200 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|
|
FN-SX05-40FAN AXL 50X15MM 12VDC RECT CONN Gelid Solutions LLC |
4,379 |
|
数据手册 |
Silent 5 | Retail Package | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.9 CFM (0.361m³/min) | 0.110 in H2O (27.4 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 23.0dB(A) | - | 4000 RPM | 3 Position Rectangular Connector | - | - | CE | 0.012 lb (5.44 g) |
|
|
FN-SX06-32FAN AXL 60X15.5MM 12VDC RECT Gelid Solutions LLC |
2,647 |
|
数据手册 |
Silent 6 | Retail Package | Active | 12VDC | Square - 60mm L x 60mm H | 15.50mm | 16.0 CFM (0.448m³/min) | 0.102 in H2O (25.5 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Speed Sensor (Tach) | 24.0dB(A) | - | 3200 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|
FN-PX08-21SILENT 8 PWM - BLACK Gelid Solutions LLC |
3,056 |
|
数据手册 |
FN | Retail Package | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 20.7 CFM (0.580m³/min) | 0.041 in H2O (10.3 Pa) | Hydrodynamic | Tubeaxial | - | 18.9dB(A) | 2.16 W | 1600 RPM | 3 Position Rectangular Connector | - | - | - | 0.15 lb (68.04 g) |
|
|
FN-PX09-20FAN AXL 92X25MM 12VDC RECT CONN Gelid Solutions LLC |
2,539 |
|
数据手册 |
Silent 9 PWM | Retail Package | Last Time Buy | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 37.9 CFM (1.07m³/min) | 0.079 in H2O (19.6 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 23.5dB(A) | - | 2000 RPM | 4 Position Rectangular Connector | - | - | CE | - |
|
|
FN-TX09-20FAN AXL 92X25MM 12VDC RECT CONN Gelid Solutions LLC |
3,523 |
|
数据手册 |
Silent 9 TC | Retail Package | Last Time Buy | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 38.0 CFM (1.06m³/min) | 0.079 in H2O (19.6 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, Temperature Sensor | 23.5dB(A) | - | 2000 RPM | 3 Position Rectangular Connector | - | - | CE | - |
|

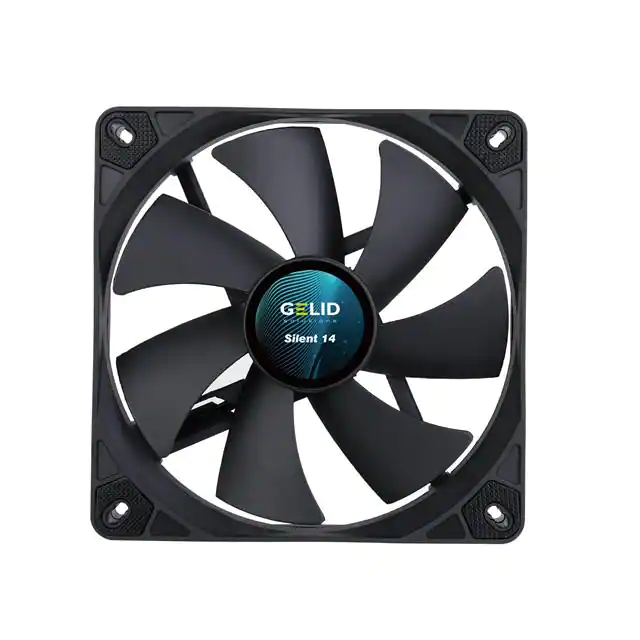

FN-PX14-11SILENT 14 BLACK Gelid Solutions LLC |
1,766 |
|
数据手册 |
FN | Retail Package | Active | 12VDC | Square - 140mm L x 140mm H | 25.00mm | 67.4 CFM (1.89m³/min) | 0.053 in H2O (13.2 Pa) | Hydrodynamic | Tubeaxial | - | 21.0dB(A) | - | 1000 RPM | 3 Position Rectangular Connector | - | - | - | - |
|
|
FN-PX14P-15FAN AXL 140X25MM 12VDC RECT CONN Gelid Solutions LLC |
2,955 |
|
数据手册 |
Silent Pro 14 PWM | Retail Package | Last Time Buy | 12VDC | Square/Rounded - 140mm L x 140mm H | 25.00mm | 80.7 CFM (2.26m³/min) | 0.073 in H2O (18.2 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 27.8dB(A) | - | 1500 RPM | 4 Position Rectangular Connector | - | - | CE | - |
|
|
FN-PX14-12FAN AXL 140X25MM 12VDC RECT CONN Gelid Solutions LLC |
3,910 |
|
数据手册 |
Silent 14 PWM | Retail Package | Last Time Buy | 12VDC | Square - 140mm L x 140mm H | 25.00mm | 74.5 CFM (2.09m³/min) | 0.059 in H2O (14.7 Pa) | Hydrodynamic | Tubeaxial | Fan Mounts Included, PWM Control, Speed Sensor (Tach) | 20.0dB(A) | - | 1200 RPM | 4 Position Rectangular Connector | - | - | CE | - |
