直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

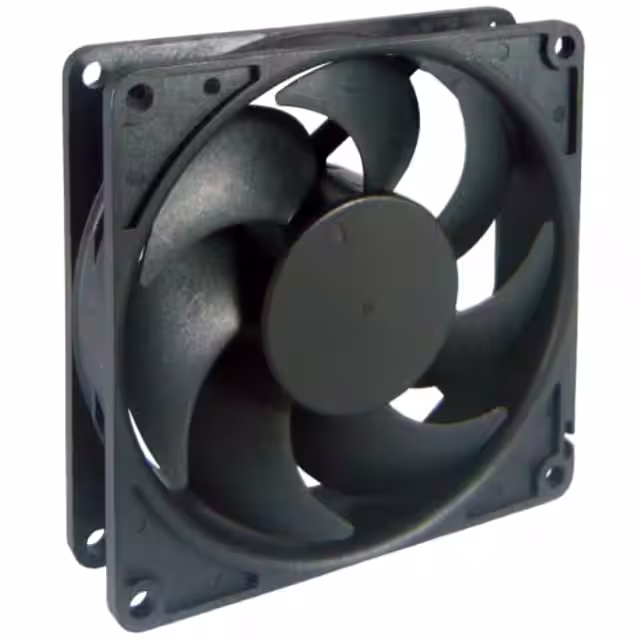

QYW09225012BL-12FAN AXIAL 92X25MM 12VDC WIRE YS TECH USA |
4,764 |
|
数据手册 |
QYW9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 25.9 CFM (0.725m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | - | 16.7dB(A) | 420 mW | 2000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225012BH-12FAN AXIAL 92X25MM 12VDC WIRE YS TECH USA |
3,444 |
|
数据手册 |
QYW9225 | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 1.74 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225024BH-12FAN AXIAL 92X25MM 24VDC WIRE YS TECH USA |
1,926 |
|
数据手册 |
QYW9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 2.4 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225024BL-12FAN AXIAL 92X25MM 24VDC WIRE YS TECH USA |
2,301 |
|
数据手册 |
QYW9225 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 25.9 CFM (0.725m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | - | 16.7dB(A) | 1.08 W | 2000 RPM | 2 Wire Leads | - | - | - | - |
|
YW04020012BS-N-5FAN AXIAL 40X20MM 12VDC WIRE YS TECH USA |
4,727 |
|
数据手册 |
YW04020-N | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
QYW09225048BV-12FAN AXIAL 92X25MM 48VDC WIRE YS TECH USA |
3,730 |
|
数据手册 |
QYW9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 92.5 CFM (2.59m³/min) | 0.800 in H2O (199.3 Pa) | Ball | Tubeaxial | - | 50.3dB(A) | 8.64 W | 7000 RPM | 2 Wire Leads | - | - | - | - |
|
|
QYW09225048BH-12FAN AXIAL 92X25MM 48VDC WIRE YS TECH USA |
3,473 |
|
数据手册 |
QYW9225 | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 50.3 CFM (1.41m³/min) | 0.272 in H2O (67.7 Pa) | Ball | Tubeaxial | - | 35.0dB(A) | 3.36 W | 4000 RPM | 2 Wire Leads | - | - | - | - |
|
|
YW04020024BM-N-5FAN AXIAL 40X20MM 24VDC WIRE YS TECH USA |
1,172 |
|
数据手册 |
YW04020-N | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | - | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | - | - |
|
|
YW04020024BS-N-5FAN AXIAL 40X20MM 24VDC WIRE YS TECH USA |
2,444 |
|
数据手册 |
YW04020-N | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 11.4 CFM (0.319m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Tubeaxial | - | 29.5dB(A) | 2.04 W | 8500 RPM | 2 Wire Leads | - | - | - | - |
|
NYW06025024BSS-W-12FAN AXIAL 60X25MM 24VDC WIRE YS TECH USA |
3,702 |
|
数据手册 |
NYW06025-W | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 31.2 CFM (0.873m³/min) | 0.500 in H2O (124.5 Pa) | Ball | Tubeaxial | - | 51.5dB(A) | 2.64 W | 6500 RPM | 2 Wire Leads | - | - | - | - |
