直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NYW08025012BSS-NAE-1280X25MM 4500RPM 12VDC W/PWM, 4 W YS Tech USA |
398 |
|
数据手册 |
NYW08025 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 59.5 CFM (1.67m³/min) | 0.346 in H2O (86.2 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.36 W | 4500 RPM | 2 Wire Leads | - | - | - | - |
|
|
NYW06025012BH-5(M338)60X25 12V 4300RPM, 3 WIRES YS Tech USA |
199 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EYW12038048BH-EAH-12IP55FAN AXIAL 120X38MM 48VDC WIRE YS Tech USA |
101 |
|
数据手册 |
EYW | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 238.8 CFM (6.76m³/min) | 1.630 in H2O (406.0 Pa) | Ball | Tubeaxial | PWM Control | 64.9dB(A) | 43.2 W | 6000 RPM | 3 Wire Leads | - | - | - | - |
|
|
NYW06025024BS-5 IPX460X25MM 24V BALL 5200RPM TACH IP YS Tech USA |
105 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XYW17251024BS-4172X51MM 24V BALL 4500RPM W/ALAR YS Tech USA |
159 |
|
数据手册 |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
YW05015012BL50X15MM 12V BALL, 3900RPM, 2 WIR YS Tech USA |
1,524 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.00mm | 12.0 CFM (0.336m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | - | 24.5dB(A) | 1.02 W | 3800 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | - |
|
|
YW08025012BMFAN AXIAL 80X25MM 12VDC WIRE YS Tech USA |
1,747 |
|
数据手册 |
YW | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.0 CFM (1.04m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 1.92 W | 2500 RPM | 2 Wire Leads | - | - | CE, cURus, TUV | - |
|
|
BW09733012BH-597X33MM 12V BALL 3300RPM W/TACH, YS Tech USA |
4,672 |
|
数据手册 |
BW09733 | Box | Active | 12VDC | Square/Rounded - 97mm L x 97mm H | 33.00mm | 32.4 CFM (0.907m³/min) | 1.106 in H2O (275.5 Pa) | Ball | Blower | - | 48.5dB(A) | 8.88 W | 3300 RPM | 2 Wire Leads | - | - | - | - |
|
|
NYW03010005BH-630X10MM 5V BALL 7800RPM W/AR, 2 YS Tech USA |
3,962 |
|
数据手册 |
- | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

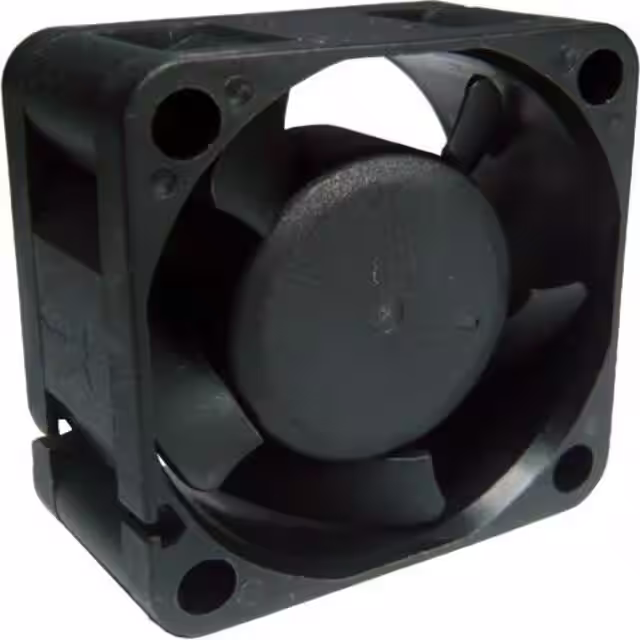

YW04020012LL-N-12FAN AXIAL 40X20MM 12VDC WIRE YS TECH USA |
2,979 |
|
数据手册 |
YW04020-N | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 5.4 CFM (0.151m³/min) | 0.087 in H2O (21.7 Pa) | Sintec | Tubeaxial | - | 17.0dB(A) | 360 mW | 4000 RPM | 2 Wire Leads | - | - | - | - |
