直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF80321B1-000U-AB9FAN AXIAL 80X32MM 12VDC WIRE Sunon Fans |
3,453 |
|
数据手册 |
PF | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 59.4 CFM (1.66m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart | 45.2dB(A) | 3.7 W | 4800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80321B2-000U-AB9FAN AXIAL 80X32MM 12VDC WIRE Sunon Fans |
1,548 |
|
数据手册 |
PF | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 55.9 CFM (1.57m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart | 43.1dB(A) | 2.8 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF80321B3-000U-AB9FAN AXIAL 80X32MM 12VDC WIRE Sunon Fans |
4,381 |
|
数据手册 |
PF | Bulk | Obsolete | 12VDC | Square - 80mm L x 80mm H | 32.00mm | 50.3 CFM (1.41m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Tubeaxial | Auto Restart | 41.1dB(A) | 2.4 W | 4100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
EEC0254B1-000U-F99FAN AXIAL 120X25MM 48VDC WIRE Sunon Fans |
2,642 |
|
数据手册 |
EEC | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 108.2 CFM (3.03m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 44.5dB(A) | 5.7 W | 3100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.346 lb (156.94 g) |
|
|
EEC0254B3-000U-F9948VDC FAN 120X25MM TACH Sunon Fans |
3,580 |
|
数据手册 |
EE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 2.6 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0254B2-000U-F9948VDC FAN 120X25MM TACH Sunon Fans |
4,972 |
|
数据手册 |
EE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 3.8 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
UB5U3-500BThermal Products Sunon Fans |
4,147 |
|
数据手册 |
UB | Bulk | Active | 5VDC | Square - 30mm L x 30mm H | 3.00mm | 0.636 CFM (0.018m³/min) | 0.354 in H2O (88.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 25.6dB(A) | 360 mW | 9500 RPM | 3 Wire Leads | IP58 - Dust Protected, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE | - |
|

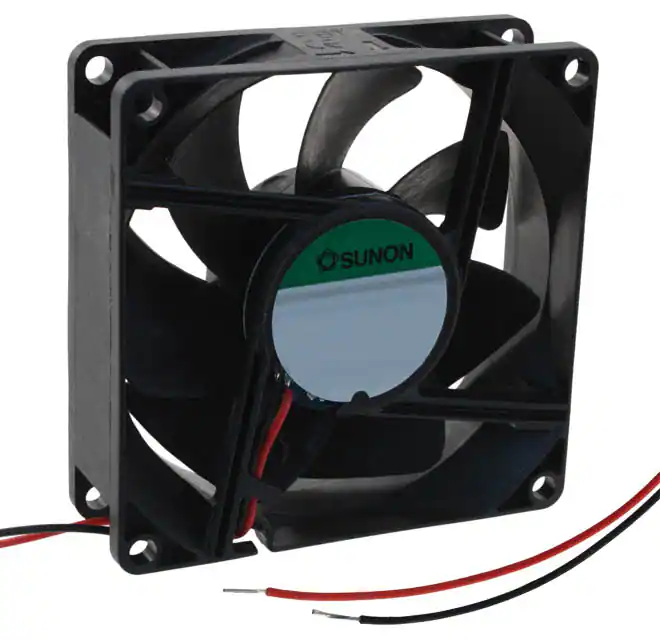

PE92254B1-000U-A99FAN AXIAL 92X25MM 48VDC WIRE Sunon Fans |
3,759 |
|
数据手册 |
PE | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.350 in H2O (87.2 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | 6 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.228 lb (103.42 g) |
|
|
PE92254B3-000U-A99FAN AXIAL 92X25MM 48VDC WIRE Sunon Fans |
3,937 |
|
数据手册 |
PE | Box | Obsolete | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 65.0 CFM (1.82m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart | 43.0dB(A) | 4.95 W | 3900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.228 lb (103.42 g) |
|
|
SG40281BX-000U-A99FAN AXIAL 40X28MM 12VDC Sunon Fans |
3,408 |
|
数据手册 |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
