直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

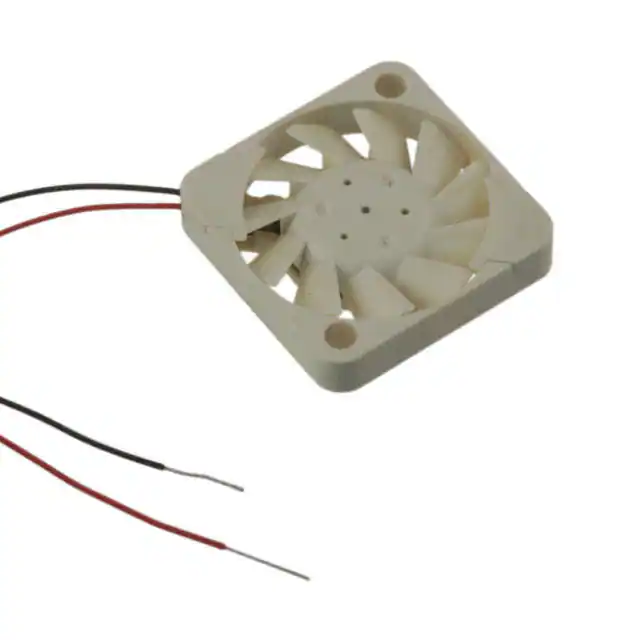

UF3H3-700FAN AXIAL 17X3MM VAPO 3VDC WIRE Sunon Fans |
2,308 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.0dB(A) | 100 mW | 13000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|

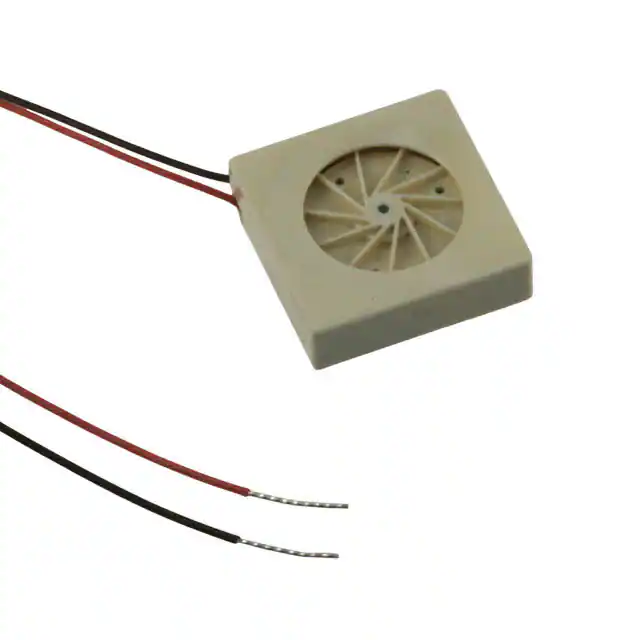

UB3C3-700FAN BLOWER 12X3MM VAPO 3VDC WIRE Sunon Fans |
4,186 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.094 CFM (0.003m³/min) | 0.092 in H2O (23.0 Pa) | Vapo-Bearing™ | Blower | Auto Restart | 26.0dB(A) | 100 mW | 15500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
PF38281B1-000U-A99FAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
3,766 |
|
数据手册 |
PF | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.1 CFM (0.507m³/min) | 1.420 in H2O (353.7 Pa) | Ball | Tubeaxial | Auto Restart | 51.8dB(A) | 3.78 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.091 lb (41.28 g) |
|
VF38281B1-000U-A9HFAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
1,807 |
|
数据手册 |
VF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 18.9 CFM (0.529m³/min) | 2.360 in H2O (587.8 Pa) | Ball | Tubeaxial | Auto Restart | 58.1dB(A) | 5.7 W | 21600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.098 lb (44.45 g) |
|
|
VF38281BX-000U-A9HFAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
4,569 |
|
数据手册 |
VF | Bulk | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 24.2 CFM (0.678m³/min) | 3.560 in H2O (886.7 Pa) | Ball | Tubeaxial | Auto Restart | 61.6dB(A) | 10.44 W | 27000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.098 lb (44.45 g) |
|
VF40281B1-000U-A9HFAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
4,423 |
|
数据手册 |
VF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 25.6 CFM (0.717m³/min) | 2.770 in H2O (690.0 Pa) | Ball | Tubeaxial | Auto Restart | 58.6dB(A) | 7.56 W | 21600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.102 lb (46.27 g) |
|
|
VF40281BX-000U-A9HFAN AXIAL 40X28MM 12VDC WIRE Sunon Fans |
3,411 |
|
数据手册 |
VF | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 31.5 CFM (0.882m³/min) | 3.950 in H2O (983.9 Pa) | Ball | Tubeaxial | Auto Restart | 63.7dB(A) | 13.68 W | 27000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.102 lb (46.27 g) |
|
UF3H3-500FAN AXIAL 17X3MM VAPO 3VDC WIRE Sunon Fans |
3,738 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.575 CFM (0.016m³/min) | 0.085 in H2O (21.2 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 13000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
UF3F3-500FAN AXIAL 15X3MM VAPO 3VDC WIRE Sunon Fans |
3,479 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.309 CFM (0.009m³/min) | 0.082 in H2O (20.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
EEC0384B2-000U-G9948VDC FAN 120X38MM ALARM Sunon Fans |
2,812 |
|
数据手册 |
EE | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 5.8 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
