直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PF75302B1-1B00U-A99Thermal Products Sunon Fans |
2,127 |
|
数据手册 |
PF | Bulk | Active | 24VDC | Rectangular/Rounded - 75.7mm L x 75.6mm H | 30.00mm | 15.5 CFM (0.434m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Blower | Auto Restart | 42.0dB(A) | 2.76 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PF75302B2-1B00U-A99Thermal Products Sunon Fans |
2,873 |
|
数据手册 |
PF | Bulk | Active | 24VDC | Rectangular/Rounded - 75.7mm L x 75.6mm H | 30.00mm | 13.8 CFM (0.386m³/min) | 0.430 in H2O (107.0 Pa) | Ball | Blower | Auto Restart | 38.6dB(A) | 1.92 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
.GN.JPG)
|
PMB1275PNB3-AY.(2).GNFAN BLOWER 75.7X30MM 12VDC WIRE Sunon Fans |
1,295 |
|
数据手册 |
PMB | Bulk | Obsolete | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | - | 33.9dB(A) | 1.6 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB1275PNB2-AY.(2).GNFAN BLOWER 75.7X30MM 12VDC WIRE Sunon Fans |
4,530 |
|
数据手册 |
PMB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Auto Restart | 40.5dB(A) | 2.8 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB1275PNB4-AY.(2).GNFAN BLOWER 75.7X30MM 12VDC WIRE Sunon Fans |
1,766 |
|
数据手册 |
PMB | Bulk | Active | 12VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Blower | Auto Restart | 28.0dB(A) | 1 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
.GN.jpg)
|

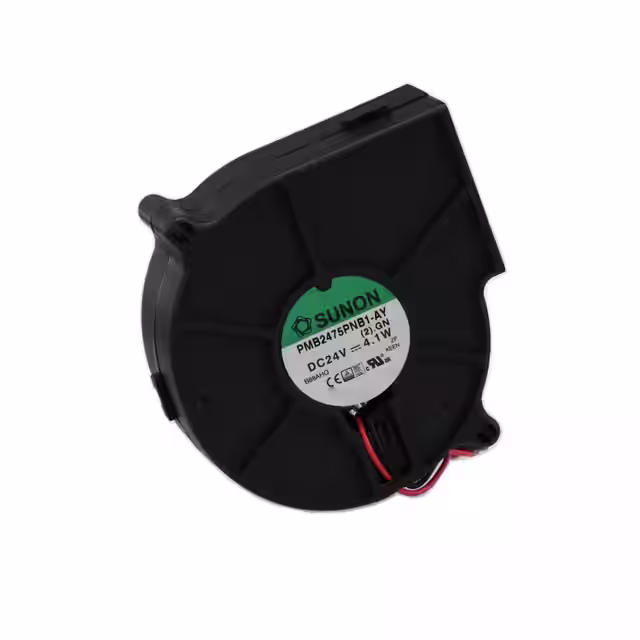

PMB2475PNB1-AY.(2).GNFAN BLOWER 75.7X30MM 24VDC WIRE Sunon Fans |
2,239 |
|
数据手册 |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 13.6 CFM (0.381m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 43.5dB(A) | 4.1 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB2475PNB2-AY.(2).GNFAN BLOWER 75.7X30MM 24VDC WIRE Sunon Fans |
4,899 |
|
数据手册 |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 12.3 CFM (0.344m³/min) | 0.480 in H2O (119.6 Pa) | Ball | Blower | Auto Restart | 40.5dB(A) | 3.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
.GN.jpg)
|
PMB2475PNB3-AY.(2).GNFAN BLOWER 75.7X30MM 24VDC WIRE Sunon Fans |
4,780 |
|
数据手册 |
PMB | Bulk | Obsolete | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 9.6 CFM (0.269m³/min) | 0.270 in H2O (67.3 Pa) | Ball | Blower | Auto Restart | 33.9dB(A) | 1.9 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMB2475PNB4-AY.(2).GNFAN BLOWER 75.7X30MM 24VDC WIRE Sunon Fans |
4,200 |
|
数据手册 |
PMB | Bulk | Active | 24VDC | Square/Rounded - 75.7mm L x 75.7mm H | 30.00mm | 7.5 CFM (0.210m³/min) | 0.150 in H2O (37.4 Pa) | Ball | Blower | Auto Restart | 28.0dB(A) | 1.2 W | 1900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.191 lb (86.64 g) |
|
|
PMD4807PTV1-A.GNFAN AXIAL 70X25MM 48VDC WIRE Sunon Fans |
3,353 |
|
数据手册 |
MagLev® PMD | Bulk | Obsolete | 48VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 44.0dB(A) | 5.8 W | 5100 RPM | 2 Wire Leads | - | - | - | - |
