直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GF40282B1-1000U-QDP24VDC 40X28MM ALARM/PWM GR487 Sunon Fans |
4,234 |
|
数据手册 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.6 CFM (0.549m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Tubeaxial | PWM Control | 52.8dB(A) | 5.52 W | 14600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282B2-1000U-QDP24VDC 40X28MM ALARM/PWM GR487 Sunon Fans |
1,563 |
|
数据手册 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 17.7 CFM (0.496m³/min) | 1.110 in H2O (276.5 Pa) | Ball | Tubeaxial | PWM Control | 50.0dB(A) | 4.32 W | 13100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282BX-1000U-QEP24VDC FAN 40X28MM ALARM/PWM IP68 Sunon Fans |
2,110 |
|
数据手册 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 23.9 CFM (0.669m³/min) | 2.010 in H2O (500.7 Pa) | Ball | Tubeaxial | PWM Control | 58.5dB(A) | 9.6 W | 17600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282B1-1000U-QEP24VDC FAN 40X28MM ALARM/PWM IP68 Sunon Fans |
4,865 |
|
数据手册 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 19.6 CFM (0.549m³/min) | 1.380 in H2O (343.7 Pa) | Ball | Tubeaxial | PWM Control | 52.8dB(A) | 5.52 W | 14600 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282B3-1000U-QDP24VDC 40X28MM ALARM/PWM GR487 Sunon Fans |
4,996 |
|
数据手册 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.1 CFM (0.395m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | PWM Control | 45.0dB(A) | 2.81 W | 10500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
GF40282B3-1000U-QEP24VDC FAN 40X28MM ALARM/PWM IP68 Sunon Fans |
1,385 |
|
数据手册 |
GF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 14.1 CFM (0.395m³/min) | 0.710 in H2O (176.9 Pa) | Ball | Tubeaxial | PWM Control | 45.0dB(A) | 2.81 W | 10500 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | - | CCC, CE, cURus, TUV, UKCA | - |
|

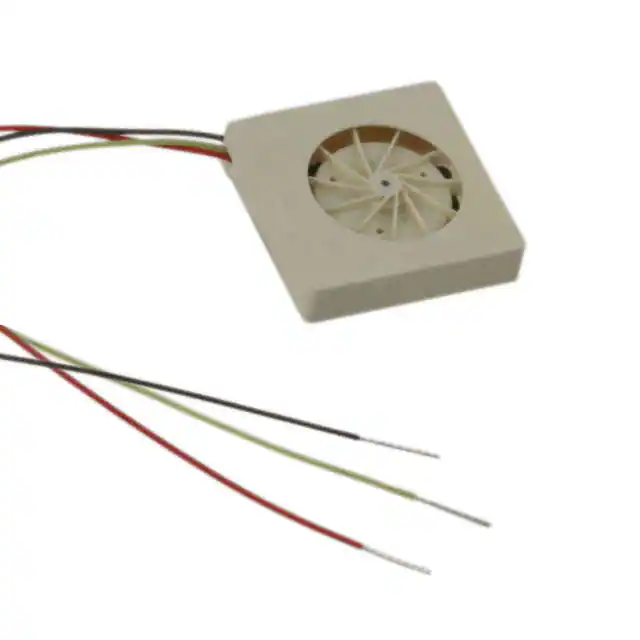

UB3F3-500FAN BLOWER 15X3MM VAPO 3VDC WIRE Sunon Fans |
1,626 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 15mm L x 15mm H | 3.00mm | 0.170 CFM (0.005m³/min) | 0.136 in H2O (33.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 30.0dB(A) | 100 mW | 14000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
|
UF3A3-500FAN AXIAL 10X3MM VAPO 3VDC WIRE Sunon Fans |
3,941 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 21.0dB(A) | 290 mW | 17000 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|
UF3C3-500FAN AXIAL 12X3MM VAPO 3VDC WIRE Sunon Fans |
1,826 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.3dB(A) | 300 mW | 16500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

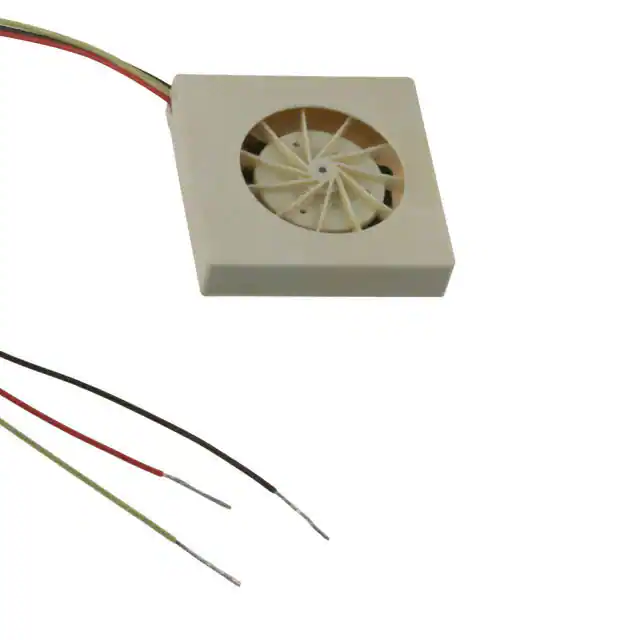

UB3H3-500FAN BLOWER 17X3MM VAPO 3VDC WIRE Sunon Fans |
4,309 |
|
数据手册 |
MagLev® UB, Mighty Mini | Tray | Obsolete | 3VDC | Square - 17mm L x 17mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.162 in H2O (40.3 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Speed Sensor (Tach) | 32.0dB(A) | 100 mW | 12500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.003 lb (1.36 g) |
