直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EEC0251B2-000U-F9912VDC FAN 120X25MM TACH Sunon Fans |
4,138 |
|
数据手册 |
EE | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (55.0 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 40.5dB(A) | 3.4 W | 2700 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EEC0251B3-000U-F9912VDC FAN 120X25MM TACH Sunon Fans |
3,684 |
|
数据手册 |
EE | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 75.0 CFM (2.10m³/min) | 0.160 in H2O (39.8 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 34.0dB(A) | 1.9 W | 2200 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
PMD1207PTB1-A(2).GN.IP55FAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
2,128 |
|
数据手册 |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 49.0 CFM (1.37m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 45.0dB(A) | 4.4 W | 5100 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD1207PTB2-A (2).GN.IP55FAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
4,631 |
|
数据手册 |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.310 in H2O (77.2 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 43.0dB(A) | 3.7 W | 4700 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
PMD1207PTB3-A (2).GN.IP55FAN AXIAL 70X25MM 12VDC WIRE Sunon Fans |
3,774 |
|
数据手册 |
PMD | Bulk | Active | 12VDC | Square - 70mm L x 70mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 39.0dB(A) | 2.9 W | 4200 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
|
MEC0382V3-000U-G9924VDC FAN 120X38MM ALARM Sunon Fans |
3,558 |
|
数据手册 |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 93.0 CFM (2.60m³/min) | 0.180 in H2O (44.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 37.0dB(A) | 3.1 W | 2100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0382V1-000U-G9924VDC FAN 120X38MM ALARM Sunon Fans |
4,862 |
|
数据手册 |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 137.7 CFM (3.86m³/min) | 0.360 in H2O (89.6 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 48.0dB(A) | 9.2 W | 3100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MEC0382V2-000U-G9924VDC FAN 120X38MM ALARM Sunon Fans |
4,635 |
|
数据手册 |
ME | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 116.0 CFM (3.25m³/min) | 0.260 in H2O (64.8 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 44.0dB(A) | 5.4 W | 2600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
UF3A3-700FAN AXIAL 10X3MM VAPO 3VDC WIRE Sunon Fans |
3,592 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 10mm L x 10mm H | 3.00mm | 0.121 CFM (0.003m³/min) | 0.042 in H2O (10.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 21.0dB(A) | 290 mW | 17000 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
|

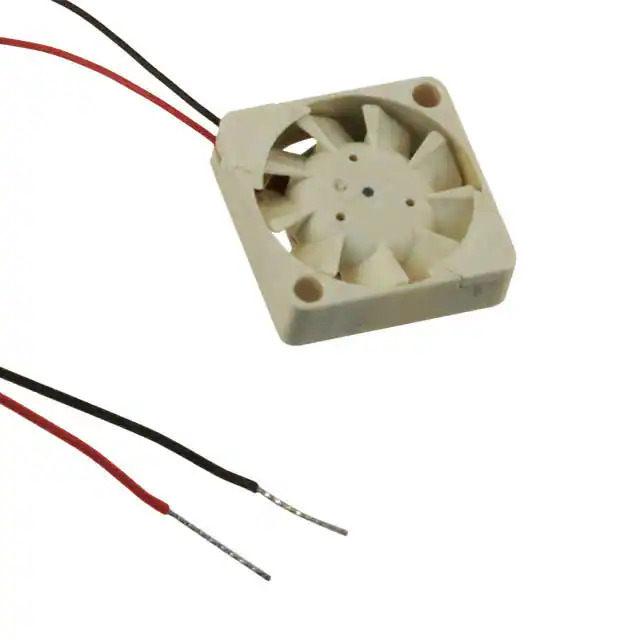

UF3C3-700FAN AXIAL 12X3MM VAPO 3VDC WIRE Sunon Fans |
3,054 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Obsolete | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.3dB(A) | 300 mW | 16500 RPM | 2 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
