直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF25150V3-1000U-S995VDC FAN 25X15MM TACH/PWM Sunon Fans |
4,686 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 1.3 CFM (0.036m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 4.5dB(A) | 0.18 W | 5300 RPM | 4 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
EB60252B2-000U-A99FAN AXIAL 60X25MM 24VDC WIRE Sunon Fans |
2,023 |
|
数据手册 |
EB | Tray | Obsolete | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 19.3 CFM (0.540m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.0dB(A) | 1.44 W | 3800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | 0.123 lb (55.79 g) |
|

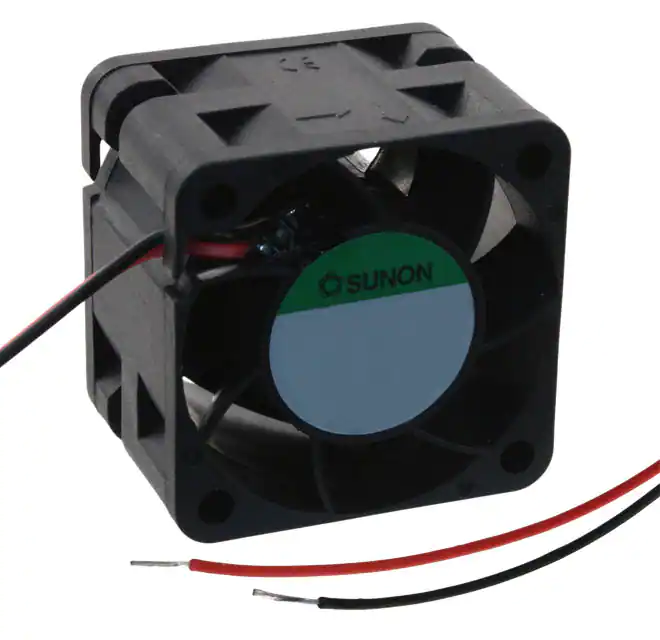

PMD1238PQB1-A.(2).GNFAN AXIAL 38X28MM 12VDC WIRE Sunon Fans |
1,257 |
|
数据手册 |
PMD | Box | Obsolete | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 16.5 CFM (0.462m³/min) | 0.910 in H2O (226.7 Pa) | Ball | Tubeaxial | - | 47.0dB(A) | 3.6 W | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.078 lb (35.38 g) |
|
|
MF60151V1-1B00U-F9912VDC FAN 60X15MM TACH Sunon Fans |
1,968 |
|
数据手册 |
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.6 CFM (0.157m³/min) | 0.460 in H2O (114.6 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Sensor | 32.8dB(A) | 0.9 W | 4000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151V2-1B00U-F9912VDC FAN 60X15MM TACH Sunon Fans |
2,867 |
|
数据手册 |
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 5.1 CFM (0.143m³/min) | 0.330 in H2O (82.2 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Sensor | 29.0dB(A) | 0.66 W | 3600 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF60151VX-1B00U-F9912VDC FAN 60X15MM TACH Sunon Fans |
3,430 |
|
数据手册 |
MF | Box | Active | 12VDC | Square/Rounded - 60mm L x 60mm H | 15.00mm | 6.2 CFM (0.174m³/min) | 0.710 in H2O (176.9 Pa) | Vapo-Bearing™ | Blower | Auto Restart, Locked Rotor Sensor | 37.7dB(A) | 1.56 W | 4500 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40100VX-1000U-G995VDC FAN 40X10MM ALARM Sunon Fans |
3,550 |
|
数据手册 |
AF | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.7dB(A) | 0.6 W | 8000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
AF40101VX-1000U-G9912VDC FAN 40X10MM ALARM Sunon Fans |
2,459 |
|
数据手册 |
AF | Box | Active | 12VDC | Square - 40mm L x 40mm H | 10.00mm | 7.5 CFM (0.210m³/min) | 0.210 in H2O (52.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 30.7dB(A) | 0.78 W | 8000 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MB60202V2-000U-A99FAN AXIAL 60X20MM 24VDC WIRE Sunon Fans |
3,050 |
|
数据手册 |
MagLev® MB | Bulk | Obsolete | 24VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.140 in H2O (34.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 28.0dB(A) | 1.16 W | 3700 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CUR, TUV, UL | 0.113 lb (51.26 g) |
|
|
MF80151V1-1000U-G99FAN AXIAL 80X15MM 12VDC WIRE Sunon Fans |
3,294 |
|
数据手册 |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
