直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MF25150V2-1000U-H995VDC FAN 25X15MM PWM Sunon Fans |
4,687 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, PWM Control | 11.3dB(A) | 0.23 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF25150V3-1000U-G995VDC FAN 25X15MM ALARM Sunon Fans |
4,720 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 1.3 CFM (0.036m³/min) | 0.040 in H2O (10.0 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 4.5dB(A) | 0.18 W | 5300 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
PMD1206PTB1-A.(2).U.GNFAN AXIAL 60X25MM 12VDC WIRE Sunon Fans |
3,163 |
|
数据手册 |
PMD | Box | Obsolete | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 36.0 CFM (1.01m³/min) | 0.540 in H2O (134.5 Pa) | Ball | Tubeaxial | - | 44.0dB(A) | 3.9 W | 6900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | 0.165 lb (74.84 g) |
|
|
MF30060V2-1000U-F995VDC FAN 30X6MM TACH Sunon Fans |
2,847 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 3.7 CFM (0.104m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 15.7dB(A) | 0.36 W | 7100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF30060V1-1000U-F995VDC FAN 30X6MM TACH Sunon Fans |
3,746 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 30mm L x 30mm H | 6.00mm | 4.9 CFM (0.137m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 23.6dB(A) | 0.56 W | 9100 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
|
|
MF80151V1-1000U-A99FAN AXIAL 12VDC 80X15MM Sunon Fans |
3,332 |
|
数据手册 |
MagLev® MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 32.9dB(A) | 1.5 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
MF80151V3-1000U-A99FAN AXIAL 12VDC 80X15MM Sunon Fans |
1,379 |
|
数据手册 |
MagLev® MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 30.0 CFM (0.840m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 26.5dB(A) | 0.86 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
|
|
MF80151V2-1000U-A99FAN AXIAL 12VDC 80X15MM Sunon Fans |
3,900 |
|
数据手册 |
MagLev® MF | Box | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 33.6 CFM (0.941m³/min) | 0.130 in H2O (32.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 29.9dB(A) | 1.13 W | 3100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV, UKCA | - |
, B0502AFB1-8(MS).jpg)
|

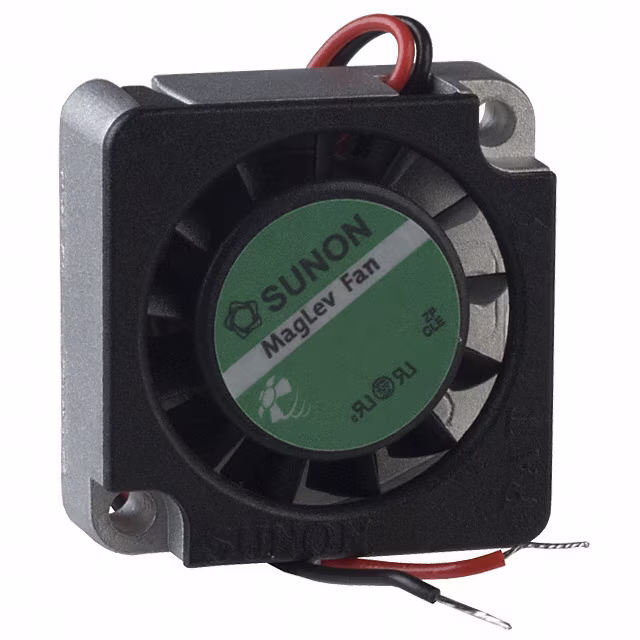

B0502AFB1-8 (MS)FAN BLOWER 25X9.8MM 5VDC WIRE Sunon Fans |
3,271 |
|
数据手册 |
- | - | Obsolete | 5VDC | Square - 25mm L x 25mm H | 9.80mm | 1.0 CFM (0.028m³/min) | 0.400 in H2O (99.6 Pa) | Ball | Blower | - | 37.0dB(A) | 900 mW | 14000 RPM | 2 Wire Leads | - | - | - | 0.02 lb (9.07 g) |
|
|
MF25150V2-1000U-F995VDC FAN 25X15MM TACH Sunon Fans |
3,967 |
|
数据手册 |
MF | Box | Active | 5VDC | Square - 25mm L x 25mm H | 15.00mm | 2.2 CFM (0.061m³/min) | 0.110 in H2O (27.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Locked Rotor Sensor | 11.3dB(A) | 0.23 W | 6800 RPM | 3 Wire Leads | - | - | CCC, CE, cURus, TUV, UKCA | - |
