直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

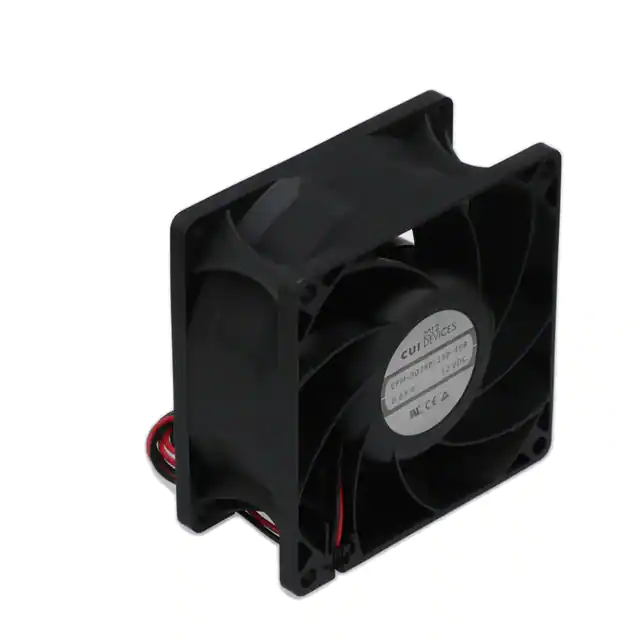

CFM-8038B-150-498FAN AXIAL 80X37.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,711 |
|
数据手册 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 61.8 CFM (1.73m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 49.8dB(A) | 6.84 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A225V-127-405-20FAN AXIAL 120X25MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,670 |
|
数据手册 |
CFM-120V | Tray | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 93.0 CFM (2.60m³/min) | 0.220 in H2O (54.8 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 40.5dB(A) | 3.46 W | 2700 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.357 lb (161.93 g) |
|
CFM-9238B-240-473FAN AXIAL 92X37.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,733 |
|
数据手册 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.3dB(A) | 9.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-A232B-120-457FAN BLOWER 119.3X32MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,911 |
|
数据手册 |
CBM-120B-2 | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 18.5 CFM (0.518m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Blower | Auto Restart | 45.8dB(A) | 4.56 W | 2000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025BG-280-546-20FAN AXIAL 80X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,306 |
|
数据手册 |
CFM-80BG | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 82.7 CFM (2.32m³/min) | 1.090 in H2O (271.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 54.7dB(A) | 13.2 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-A238B-232-480FAN AXIAL 120X37.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,119 |
|
数据手册 |
CFM-120B | Box | Active | 24VDC | Square - 120mm L x 120mm H | 37.50mm | 123.6 CFM (3.46m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Auto Restart | 48.0dB(A) | 12.72 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-4007C-165-295-20DC BLOWER, 40 MM SQUARE, 7 MM, 1 Same Sky (Formerly CUI Devices) |
3,643 |
|
数据手册 |
CBM-40C | Box | Active | 12VDC | Square/Rounded - 40mm L x 40mm H | 7.00mm | 1.9 CFM (0.053m³/min) | 0.710 in H2O (176.9 Pa) | omniCOOL™ Magnetic Sleeve | Blower | - | 29.5dB(A) | 1.68 W | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CBM-7525B-125-301-20DC BLOWER, 75.2 X 74.2 X 25 MM, Same Sky (Formerly CUI Devices) |
1,124 |
|
数据手册 |
CBM-75B-2 | Box | Active | 12VDC | Rectangular/Rounded - 75.8mm L x 75.7mm H | 25.00mm | 7.4 CFM (0.207m³/min) | 0.250 in H2O (62.3 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 30.1dB(A) | 1.2 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-235-253DC AXIAL FAN, 60 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
4,921 |
|
数据手册 |
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 14.7 CFM (0.412m³/min) | 0.150 in H2O (37.3 Pa) | Ball | Tubeaxial | Auto Restart | 25.3dB(A) | 0.96 W | 3500 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225BG68-240-438-20DC AXIAL FAN, 92 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
1,346 |
|
数据手册 |
CFM-92BG68 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 70.2 CFM (1.97m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 43.8dB(A) | 4.8 W | 4000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
