直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-A225-23-20FAN AXIAL 120X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,948 |
|
数据手册 |
CFM-120 | Tray | Active | 24VDC | Square - 120mm L x 120mm H | 25.40mm | 126.9 CFM (3.55m³/min) | 0.490 in H2O (122.1 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 53.5dB(A) | 9.36 W | 4100 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.417 lb (189.15 g) |
|
CFM-A238BF-165-635FAN AXIAL 120X38MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,929 |
|
数据手册 |
CFM-120 BF | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.00mm | 213.8 CFM (6.98m³/min) | 1.430 in H2O (356.2 Pa) | Ball | Tubeaxial | Auto Restart | 63.5dB(A) | 33.36 W | 6500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-5015CF-130-224FAN AXIAL 50X15.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,607 |
|
数据手册 |
CFM-50CF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 7.8 CFM (0.218m³/min) | 0.050 in H2O (12.4 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart | 22.4dB(A) | 720 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020S-150-368FAN AXIAL 60X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,213 |
|
数据手册 |
CFM-60S | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.1 CFM (0.535m³/min) | 0.180 in H2O (44.8 Pa) | Sleeve | Tubeaxial | Auto Restart | 36.8dB(A) | 2.52 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-6020V-142-280-20FAN AXIAL 60X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,041 |
|
数据手册 |
CFM-60V | Tray | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 19.0 CFM (0.532m³/min) | 0.160 in H2O (40.0 Pa) | omniCOOL™ Magnetic Sleeve | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.0dB(A) | 900 mW | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.112 lb (50.8 g) |
|
CFM-5015BF-145-312FAN AXIAL 50X15.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,949 |
|
数据手册 |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 11.7 CFM (0.328m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart | 31.3dB(A) | 1.08 W | 4500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

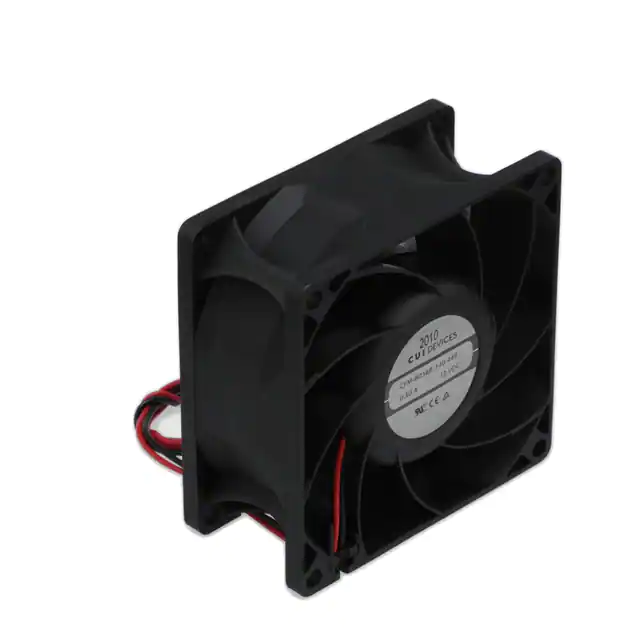

CFM-8038B-140-449FAN AXIAL 80X37.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,418 |
|
数据手册 |
CFM-80B | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Tubeaxial | Auto Restart | 45.0dB(A) | 4.56 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8038S-240-449FAN AXIAL 80X37.6MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
3,026 |
|
数据手册 |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 49.4 CFM (1.38m³/min) | 0.370 in H2O (92.2 Pa) | Sleeve | Tubeaxial | Auto Restart | 45.0dB(A) | 5.76 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
6025BF).jpg)
|
CFM-6025BF-235-274-22FAN AXIAL 60X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,303 |
|
数据手册 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 16.8 CFM (0.470m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 27.5dB(A) | 1.44 W | 3500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9232S-150-509FAN AXIAL 92.2X32MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
1,874 |
|
数据手册 |
CFM-92S | Box | Active | 12VDC | Square - 92.2mm L x 92.2mm H | 32.00mm | 102.8 CFM (2.88m³/min) | 0.620 in H2O (154.4 Pa) | Sleeve | Tubeaxial | Auto Restart | 51.0dB(A) | 10.9 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
