直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-9238B-140-473-20FAN AXIAL 92X37.5MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
3,131 |
|
数据手册 |
CFM-92B | Box | Active | 12VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.3dB(A) | 6.48 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-9238B-240-473-20FAN AXIAL 92X37.5MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
4,412 |
|
数据手册 |
CFM-92B | Box | Active | 24VDC | Square - 92mm L x 92mm H | 37.50mm | 76.9 CFM (2.15m³/min) | 0.440 in H2O (109.6 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 47.3dB(A) | 9.6 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-4020BG-1120-429-20FAN AXIAL 40X20MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,101 |
|
数据手册 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 14.1 CFM (0.395m³/min) | 0.570 in H2O (142.0 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 42.9dB(A) | 3.6 W | 12000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-3828BF-1235-614-22FAN AXIAL 38X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
4,505 |
|
数据手册 |
CFM-38BF | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 22.1 CFM (0.619m³/min) | 3.210 in H2O (800.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 61.4dB(A) | 15.36 W | 23500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-9225BG-150-502DC AXIAL FAN, 92 MM SQUARE, 25 M Same Sky (Formerly CUI Devices) |
2,181 |
|
数据手册 |
CFM-92BG | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 88.2 CFM (2.47m³/min) | 0.560 in H2O (139.5 Pa) | Ball | Tubeaxial | Auto Restart | 50.2dB(A) | 6.84 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CFM-8025-23-10FAN AXIAL 80X25.4MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
2,422 |
|
数据手册 |
CFM-80 | Tray | Obsolete | 24VDC | Square - 80mm L x 80mm H | 25.40mm | 69.2 CFM (1.94m³/min) | 0.420 in H2O (104.6 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB(A) | 4.8 W | 5100 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
|
CFM-4028BG-1250-617-20FAN AXIAL 40X28MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,705 |
|
数据手册 |
CFM-40BG | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 30.5 CFM (0.854m³/min) | 3.820 in H2O (951.5 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 61.7dB(A) | 21.12 W | 25000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
CBM-A232S-125-482-20FAN BLOWER 119.3X32MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,430 |
|
数据手册 |
CBM-120S | Box | Active | 12VDC | Square/Rounded - 119.3mm L x 119mm H | 32.00mm | 23.1 CFM (0.647m³/min) | 0.940 in H2O (234.1 Pa) | Ball | Blower | Auto Restart, Speed Sensor (Tach) | 48.2dB(A) | 6.84 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

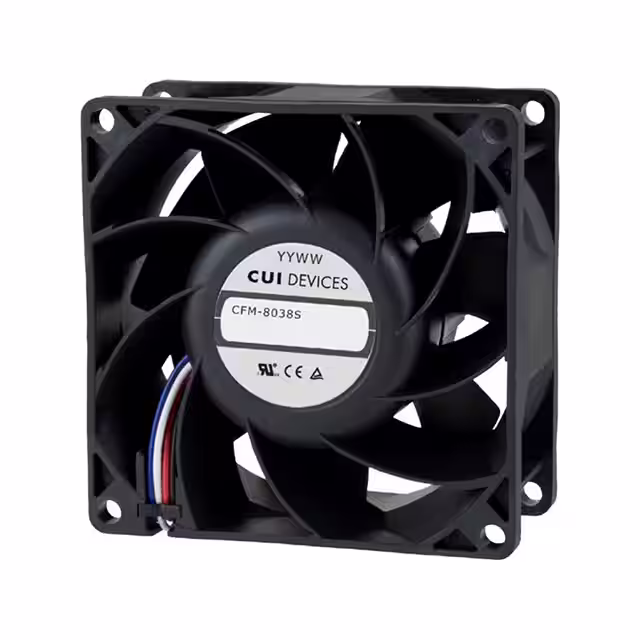

CFM-8038S-130-387-22FAN AXIAL 80X37.6MM 12VDC WIRE Same Sky (Formerly CUI Devices) |
2,484 |
|
数据手册 |
CFM-80S | Box | Active | 12VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.7dB(A) | 2.88 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-8038S-230-387-22FAN AXIAL 80X37.6MM 24VDC WIRE Same Sky (Formerly CUI Devices) |
1,716 |
|
数据手册 |
CFM-80S | Box | Active | 24VDC | Square - 80mm L x 80mm H | 37.60mm | 37.1 CFM (1.04m³/min) | 0.210 in H2O (52.3 Pa) | Sleeve | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 38.7dB(A) | 3.6 W | 3000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
