直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-06025CBMW12-AFAN AXIAL 60X25MM 12VDC WIRE Qualtek |
307 |
|
数据手册 |
FAD1-06025-A | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 17.9 CFM (0.501m³/min) | 0.152 in H2O (37.9 Pa) | Ball | Tubeaxial | - | 28.1dB(A) | 1.56 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
FAD1-12038CBJW12FAN AXIAL 120X38.5MM 12VDC WIRE Qualtek |
206 |
|
数据手册 |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 7.44 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
|
FAD1-12038DBJW12FAN AXIAL 120X38.5MM 24VDC WIRE Qualtek |
258 |
|
数据手册 |
FAD1-12038 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 38.50mm | 120.1 CFM (3.36m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Tubeaxial | - | 48.0dB(A) | 9.12 W | 3200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
FAD1-12025CBLW12FAN AXIAL 120X25.5MM 12VDC WIRE Qualtek |
108 |
|
数据手册 |
FAD1-12025 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 25.50mm | 71.8 CFM (2.01m³/min) | 0.093 in H2O (23.2 Pa) | Ball | Tubeaxial | - | 34.4dB(A) | 1.8 W | 1800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.344 lb (156.04 g) |
|
FAD1-12032DBMW12FAN AXIAL 120X32.3MM 24VDC WIRE Qualtek |
2,494 |
|
数据手册 |
FAD1-12032 | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 32.30mm | 99.1 CFM (2.77m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | - | 41.1dB(A) | 3.84 W | 2400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.469 lb (212.73 g) |
|
FAD1-12038CBMW12FAN AXIAL 120X38.5MM 12VDC WIRE Qualtek |
138 |
|
数据手册 |
FAD1-12038 | Bulk | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 96.3 CFM (2.70m³/min) | 0.228 in H2O (56.8 Pa) | Ball | Tubeaxial | - | 45.0dB(A) | 4.08 W | 2540 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.518 lb (234.96 g) |
|
FAD1-04020BBLW11FAN AXIAL 40X20MM BALL 5VDC WIRE Qualtek |
485 |
|
数据手册 |
FAD1-04020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 700 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
|
FAD1-04020BBHW11FAN AXIAL 40X20MM BALL 5VDC WIRE Qualtek |
333 |
|
数据手册 |
FAD1-04020 | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 20.00mm | 8.8 CFM (0.246m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 1.25 W | 7800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
FAD1-08038CBMW12FAN AXIAL 80.5X38MM 12VDC WIRE Qualtek |
111 |
|
数据手册 |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 46.0 CFM (1.29m³/min) | 0.167 in H2O (41.6 Pa) | Ball | Tubeaxial | - | 36.0dB(A) | 2.04 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
|

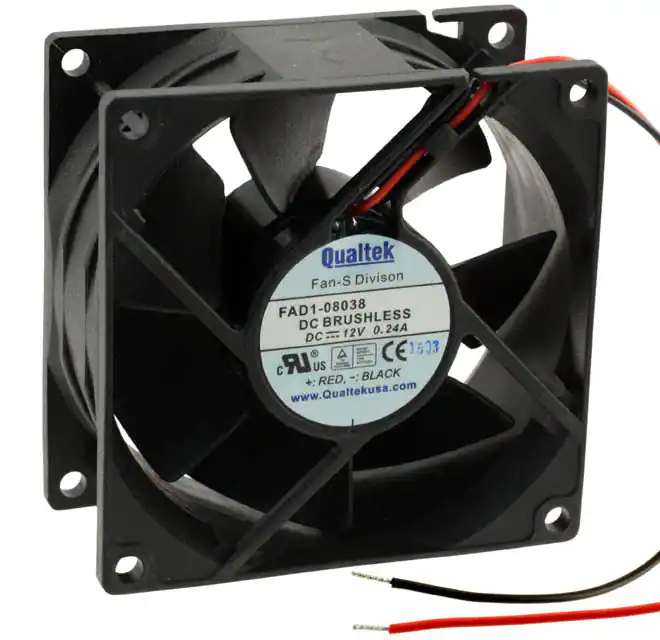

FAD1-08038CBLW12FAN AXIAL 80.5X38MM 12VDC WIRE Qualtek |
122 |
|
数据手册 |
FAD1-08038 | Bulk | Active | 12VDC | Square - 80.5mm L x 80.5mm H | 38.00mm | 38.7 CFM (1.08m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | - | 32.3dB(A) | 1.2 W | 2500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.264 lb (119.75 g) |
