直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FAD1-04020CBLW11FAN AXIAL 40X20MM 12VDC WIRE Qualtek |
547 |
|
数据手册 |
FAD1-04020 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 7.0 CFM (0.196m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | - | 30.0dB(A) | 840 mW | 6200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.062 lb (28.12 g) |
|
FAD1-09225CBHW11FAN AXIAL 92.5X25MM 12VDC WIRE Qualtek |
306 |
|
数据手册 |
FAD1-09225 | Bulk | Active | 12VDC | Square - 92.5mm L x 92.5mm H | 25.00mm | 56.1 CFM (1.57m³/min) | 0.146 in H2O (36.4 Pa) | Ball | Tubeaxial | - | 37.5dB(A) | 2.88 W | 2900 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.203 lb (92.08 g) |
|
FAD1-06025DHJW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
289 |
|
数据手册 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.298 in H2O (74.2 Pa) | Hydrodynamic | Tubeaxial | - | 38.4dB(A) | 2.88 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|

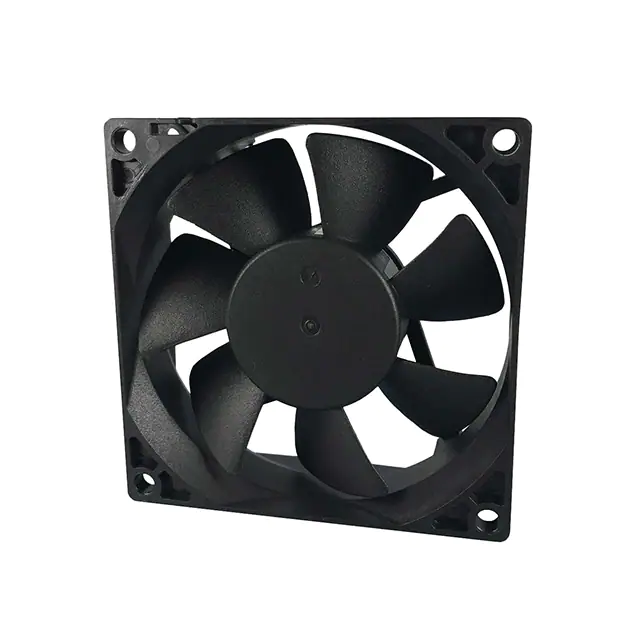

FAD1-08025CBJW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
220 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 43.6 CFM (1.22m³/min) | 0.204 in H2O (51.0 Pa) | Ball | Tubeaxial | - | 40.5dB(A) | 3 W | 3400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
FAD1-08025CBHW11-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
579 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
FAD1-06025DBJW12-AFAN AXIAL 60X25MM 24VDC WIRE Qualtek |
353 |
|
数据手册 |
FAD1-06025-A | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 26.1 CFM (0.731m³/min) | 0.298 in H2O (74.2 Pa) | Ball | Tubeaxial | - | 38.4dB(A) | 2.88 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08025CBHW12-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
594 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.16 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
|
FAD1-08025DBHW11-AFAN AXIAL 80X25MM 24VDC WIRE Qualtek |
124 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 37.2 CFM (1.04m³/min) | 0.157 in H2O (39.1 Pa) | Ball | Tubeaxial | - | 35.8dB(A) | 2.4 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
|
FAD1-08015CBMW12FAN AXIAL 80X15MM 12VDC WIRE Qualtek |
1,700 |
|
数据手册 |
FAD1-08015 | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.00mm | 21.8 CFM (0.610m³/min) | 0.078 in H2O (19.4 Pa) | Ball | Tubeaxial | - | 24.9dB(A) | 600 mW | 2440 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.137 lb (62.14 g) |
|
|
FAD1-08025CBJW12-AFAN AXIAL 80X25MM 12VDC WIRE Qualtek |
514 |
|
数据手册 |
FAD1-08025-A | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 45.0 CFM (1.26m³/min) | 0.216 in H2O (53.9 Pa) | Ball | Tubeaxial | - | 42.0dB(A) | 3 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.159 lb (72.12 g) |
