直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
OD1238-60HBFAN AXIAL 120X38MM 60VDC WIRE Orion Fans |
4,769 |
|
数据手册 |
OD1238 | Box | Active | 60VDC | Square - 120mm L x 120mm H | 38.00mm | 115.0 CFM (3.22m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 41.0dB | 14.4 W | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | cURus, TUV | - |
|

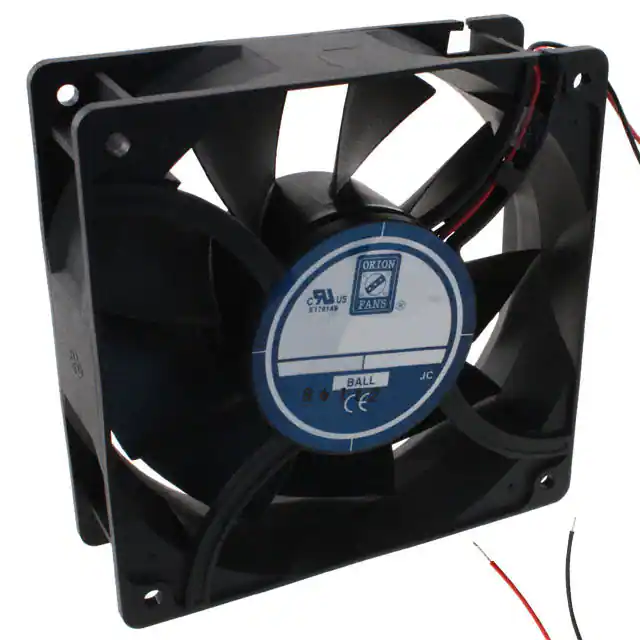

OD1238-12HBXCFAN AXIAL 120X38.5MM 12VDC WIRE Orion Fans |
2,585 |
|
数据手册 |
OD1238 XC | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 200.0 CFM (5.60m³/min) | 0.640 in H2O (159.4 Pa) | Ball | Tubeaxial | Auto Restart | 61.0dB | 23 W | 4300 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
|
OD1238-24HHB10AZX24VDC 120X120X38MM REVERSIBLE FL Orion Fans |
4,361 |
|
数据手册 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 146.0 CFM (4.09m³/min) | 0.600 in H2O (149.5 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Reversible Flow, Speed Sensor (Tach) | 50.0dB(A) | 8.2 W | 3590 RPM | 4 Wire Leads | - | 5 ~ 149°F (-15 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD127-24HBFAN AXIAL 127X38.5MM 24VDC WIRE Orion Fans |
1,715 |
|
数据手册 |
OD127 | Box | Active | 24VDC | Square - 127mm L x 127mm H | 38.50mm | 161.0 CFM (4.51m³/min) | 0.460 in H2O (114.6 Pa) | Ball | Tubeaxial | - | 56.0dB | - | 3500 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
OD1238-48HBIP68FAN AXIAL 120X38MM 48VDC WIRE Orion Fans |
3,644 |
|
数据手册 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 123.9 CFM (3.47m³/min) | 0.469 in H2O (116.8 Pa) | Ball | Tubeaxial | Auto Restart | 44.1dB(A) | 14 W | 2895 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.572 lb (259.45 g) |
|
|
OD1238-48HHBVXE10AFAN 48VDC 120X38MM PWM/TACH Orion Fans |
2,743 |
|
数据手册 |
OD1238 | Box | Active | 48VDC | Square - 120mm L x 120mm H | 38.00mm | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.3dB(A) | 56.4 W | 5475 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
|
OD1238-24HHBVXE10AFAN 24VDC 120X38MM PWM/TACH Orion Fans |
1,346 |
|
数据手册 |
OD1238 | Box | Active | 24VDC | Square - 120mm L x 120mm H | 38.00mm | 258.8 CFM (7.27m³/min) | 1.900 in H2O (473.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 62.3dB(A) | 60 W | 5475 RPM | 4 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD172SAP-12HHB10AFAN AXIAL 172X51MM 12VDC WIRE Orion Fans |
3,828 |
|
数据手册 |
OD172S | Bulk | Active | 12VDC | Rectangular/Rounded - 172mm L x 150mm H | 51.00mm | 290.0 CFM (8.12m³/min) | 0.930 in H2O (231.7 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 56.0dB | - | 3800 RPM | 4 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|

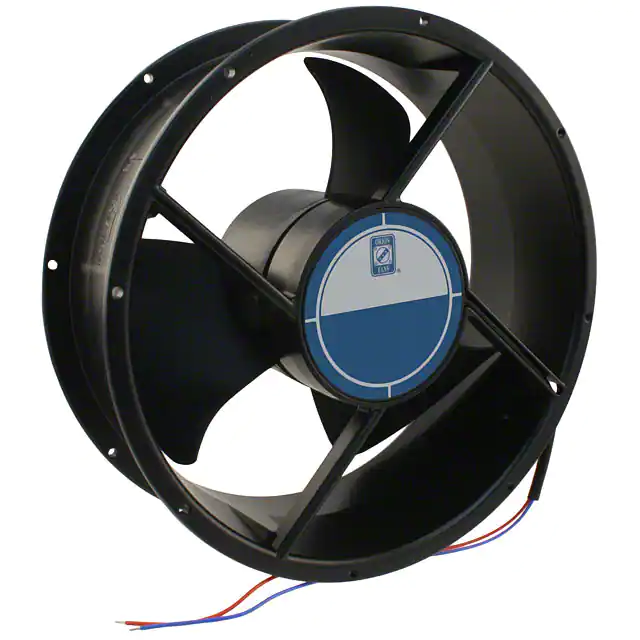

OD254AP-12MBFAN AXIAL 254X89MM 12VDC WIRE Orion Fans |
4,002 |
|
数据手册 |
OD254 | Box | Active | 12VDC | Round - 254mm Dia | 89.00mm | 690.0 CFM (19.32m³/min) | 0.580 in H2O (144.5 Pa) | Ball | Tubeaxial | Auto Restart | 47.0dB | 50 W | 2000 RPM | 2 Wire Leads | - | -4 ~ 167°F (-20 ~ 75°C) | cURus, TUV | - |
|
OD254AP-24HBIP69KFAN IMP MTRZD 254X89MM 24VDC Orion Fans |
2,161 |
|
数据手册 |
OD254AP-IP69K | Box | Active | 24VDC | Round - 254mm Dia | 89.00mm | 830.0 CFM (23.24m³/min) | 0.790 in H2O (196.8 Pa) | Ball | Motorized Impellers | Auto Restart | 62.1dB(A) | 65 W | 2450 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
