直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

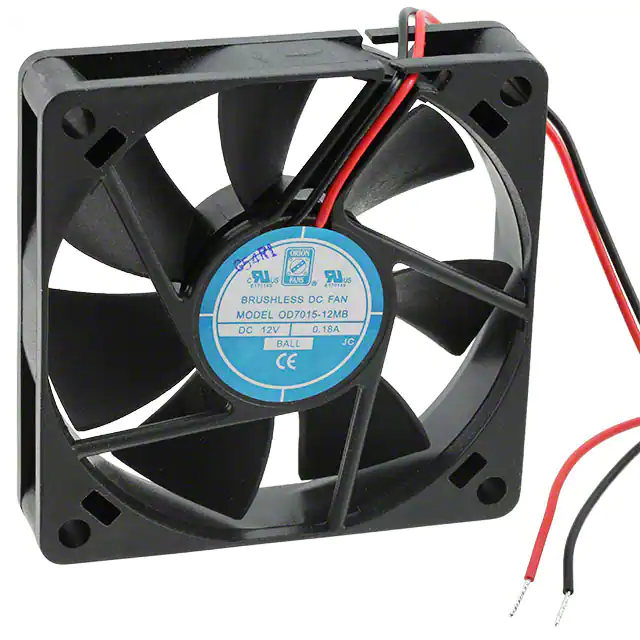

OD7015-12MBFAN AXIAL 70X15.5MM 12VDC WIRE Orion Fans |
2,723 |
|
数据手册 |
OD7015 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 28.5 CFM (0.798m³/min) | - | Ball | Tubeaxial | - | 37.0dB | 2.16 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.134 lb (60.78 g) |
|
OD8025-05LBFAN AXIAL 80X25MM BALL 5VDC WIRE Orion Fans |
3,056 |
|
数据手册 |
OD8025-05 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 29.0 CFM (0.812m³/min) | 0.100 in H2O (24.9 Pa) | Ball | Tubeaxial | Auto Restart | 21.0dB | - | 1800 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.191 lb (86.64 g) |
|
OD6010-05LBFAN AXIAL 60X10MM BALL 5VDC WIRE Orion Fans |
1,155 |
|
数据手册 |
OD6010 | Bulk | Active | 5VDC | Square - 60mm L x 60mm H | 10.00mm | - | - | Ball | Tubeaxial | - | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
OD7015-12HHB01AFAN AXIAL 70X15.5MM 12VDC WIRE Orion Fans |
3,050 |
|
数据手册 |
OD7015 | Box | Active | 12VDC | Square - 70mm L x 70mm H | 15.50mm | 41.0 CFM (1.15m³/min) | 0.260 in H2O (64.8 Pa) | Ball | Tubeaxial | Speed Sensor (Tach) | 44.5dB | 4.32 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | 0.111 lb (50.35 g) |
|
OD8038-24HHBVXEThermal Products Orion Fans |
1,459 |
|
数据手册 |
OD8038 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Auto Restart | 66.5dB(A) | 45.6 W | 8925 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD8025-48HBIP68FAN AXIAL 80X25MM 48VDC WIRE Orion Fans |
1,631 |
|
数据手册 |
OD8025 | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB | 3.8 W | 3300 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 5 ~ 149°F (-15 ~ 65°C) | cURus, TUV | 0.191 lb (86.64 g) |
|
OD1225-12MBFAN AXIAL 120X25MM 12VDC WIRE Orion Fans |
2,017 |
|
数据手册 |
OD1225 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 25.00mm | 90.0 CFM (2.52m³/min) | 0.190 in H2O (47.3 Pa) | Ball | Tubeaxial | Auto Restart | 35.0dB(A) | 4 W | 2500 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | 0.341 lb (154.67 g) |
|
OD8025-24HBXEFAN AXIAL 80X25MM 24VDC WIRE Orion Fans |
1,428 |
|
数据手册 |
OD8025 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 85.8 CFM (2.40m³/min) | 1.200 in H2O (298.9 Pa) | Ball | Tubeaxial | Auto Restart | 60.1dB(A) | 16.8 W | 8000 RPM | 2 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|
OD8025-48HBIP69KFAN AXIAL 80X25MM 48VDC WIRE Orion Fans |
3,408 |
|
数据手册 |
OD8025-IP69K | Box | Active | 48VDC | Square - 80mm L x 80mm H | 25.00mm | 40.0 CFM (1.12m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart | 33.0dB(A) | 3.8 W | 3300 RPM | 2 Wire Leads | IP69K - Dust Tight, Water Resistant, Waterproof | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV, UR | - |
|

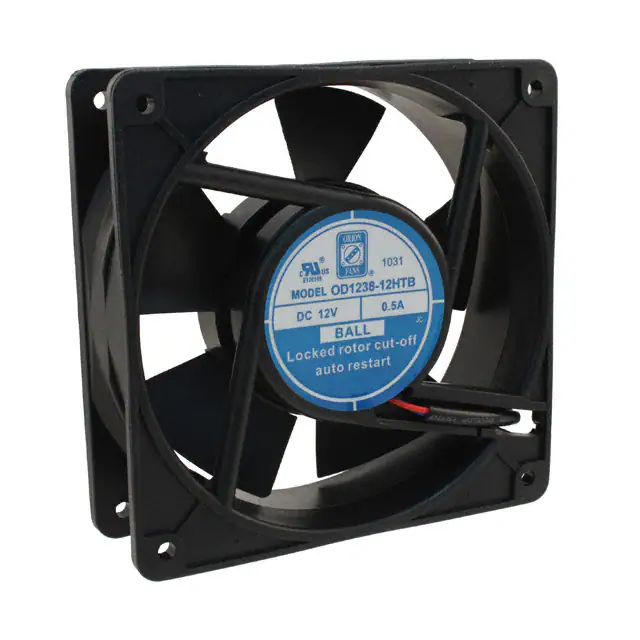

OD1238-12HTBFAN AXIAL 120X38.5MM 12VDC TERM Orion Fans |
3,944 |
|
数据手册 |
OD1238 | Box | Active | 12VDC | Square - 120mm L x 120mm H | 38.50mm | 105.0 CFM (2.94m³/min) | 0.240 in H2O (59.8 Pa) | Ball | Tubeaxial | - | 43.0dB | 6 W | 2800 RPM | 2 Terminals | - | 14 ~ 158°F (-10 ~ 70°C) | cURus, TUV | - |
