直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CFM-6025BG68-150-349DC AXIAL FAN, 60 MM SQUARE, 25 M |
138 |
|
数据手册 |
CFM-60BG68 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart | 34.9dB(A) | 1.32 W | 5000 RPM | 2 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
9RA0624H40021FAN |
123 |
|
数据手册 |
San Ace 60 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
9RA0624H4002FAN |
108 |
|
数据手册 |
San Ace 60 | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection | - | - | - | 2 Wire Leads | - | - | cURus, TUV | - |
|
|
QFR0624EHP0AXIAL 60X25.4 24V PWM |
180 |
|
数据手册 |
QFR | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.5 CFM (0.770m³/min) | 0.360 in H2O (89.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 39.5dB(A) | 2.4 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-250-349-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
170 |
|
数据手册 |
CFM-60BG68 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 25.00mm | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.9dB(A) | 1.68 W | 5000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
CFM-6025BG68-150-349-20DC AXIAL FAN, 60 MM SQUARE, 25 M |
162 |
|
数据手册 |
CFM-60BG68 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 21.3 CFM (0.596m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 34.9dB(A) | 1.32 W | 5000 RPM | 3 Wire Leads | IP68 - Dust Tight, Waterproof | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
DC0803224H2B-BT0FAN 80X32MM 24VDC PWM/TACH |
433 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 32.00mm | 69.0 CFM (1.93m³/min) | 0.610 in H2O (151.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 48.0dB(A) | 12 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0923824M2B-2T0FAN 92X38MM 24VDC |
560 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 92mm L x 92mm H | 38.00mm | 109.2 CFM (3.06m³/min) | 0.860 in H2O (214.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.0dB(A) | 21.6 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
DC0803824V2B-BT0FAN 80X38MM 24VDC PWM/TACH |
546 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 38.00mm | 130.0 CFM (3.64m³/min) | 2.000 in H2O (498.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 66.0dB(A) | 64.8 W | 9000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|

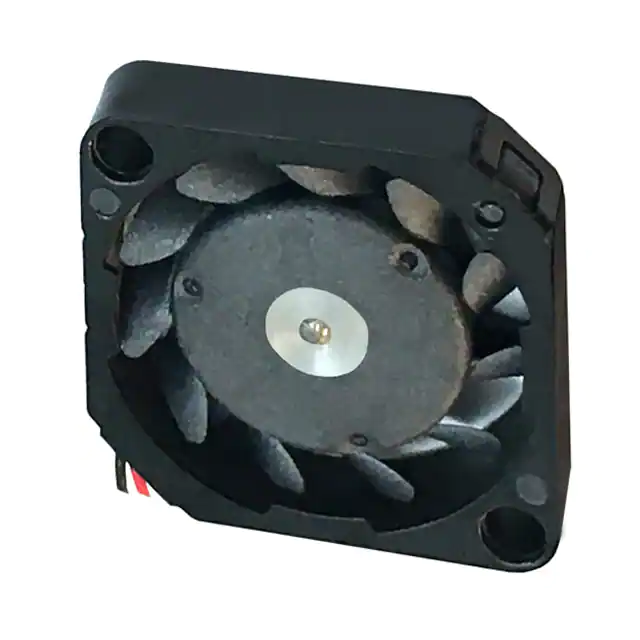

ASB01503HA3-00CYNFAN BLOWER 15.4X3.4MM 3VDC RECT |
403 |
|
数据手册 |
ASB - Miniature | Box | Active | 3VDC | Square - 15.4mm L x 15.4mm H | 3.40mm | 0.280 CFM (0.008m³/min) | 0.075 in H2O (18.6 Pa) | Sleeve | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 31.0dB(A) | 150 mW | 14500 RPM | 3 Position Rectangular Connector | - | 14 ~ 140°F (-10 ~ 60°C) | cURus, TUV | 0.003 lb (1.36 g) |
|

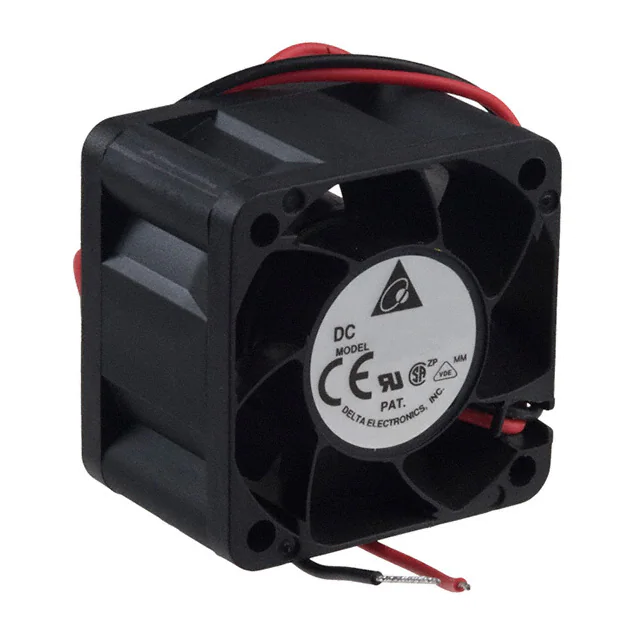

FFB03812VHNFAN AXIAL 38X28MM 12VDC WIRE |
284 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 20.2 CFM (0.566m³/min) | 1.463 in H2O (364.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 58.5dB(A) | 7.8 W | 16000 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CE, CSA, UL, VDE | 0.102 lb (46.27 g) |
|
|
DC1202524M2B-2T0FAN 120X25MM 24VDC |
540 |
|
数据手册 |
- | Bulk | Active | 24VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 11.52 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
9GA0424F6D00140X20MM 24V,HIGH PERF.,LOW POWER |
140 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | - | - | Ball | Tubeaxial | Locked Rotor Sensor | - | - | - | 3 Wire Leads | - | - | cURus, TUV | - |
|
AFB0612VH-ABF00FAN AXIAL 60X25.4MM 12VDC WIRE |
148 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 30.5 CFM (0.854m³/min) | 0.345 in H2O (85.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.5dB(A) | 2.76 W | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
17002054ACR9225-XD12BPL |
500 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 92mm L x 92mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 58.0dB(A) | 6.96 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002062ACR9225-XD48BPL |
500 |
|
数据手册 |
- | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 58.0dB(A) | 6.72 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002059ACR9225-LD48BPL |
500 |
|
数据手册 |
- | Box | Active | 48VDC | Square - 92mm L x 92mm H | 25.00mm | 48.0 CFM (1.34m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 46.0dB(A) | 1.92 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002055ACR9225-LD24BPL |
500 |
|
数据手册 |
- | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 48.0 CFM (1.34m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 46.0dB(A) | 2.64 W | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002057ACR9225-HD24BPL |
500 |
|
数据手册 |
- | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 64.0 CFM (1.79m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 50.0dB(A) | 5.04 W | 4000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
|
|
17002058ACR9225-XD24BPL |
500 |
|
数据手册 |
- | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 88.0 CFM (2.46m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection | 58.0dB(A) | 7.2 W | 5500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, UL | - |
