直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9S0824M4011FAN AXIAL 80X25MM 24VDC WIRE |
163 |
|
数据手册 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 22.0dB(A) | 1.44 W | 2500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CSA, TUV, UL | 0.167 lb (75.75 g) |
|
FFB0412VHN-BR00FAN AXIAL 40X28MM 12VDC WIRE |
283 |
|
数据手册 |
FFB | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 15.8 CFM (0.442m³/min) | 0.509 in H2O (126.8 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 45.0dB(A) | 1.92 W | 9500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.071 lb (32.21 g) |
|

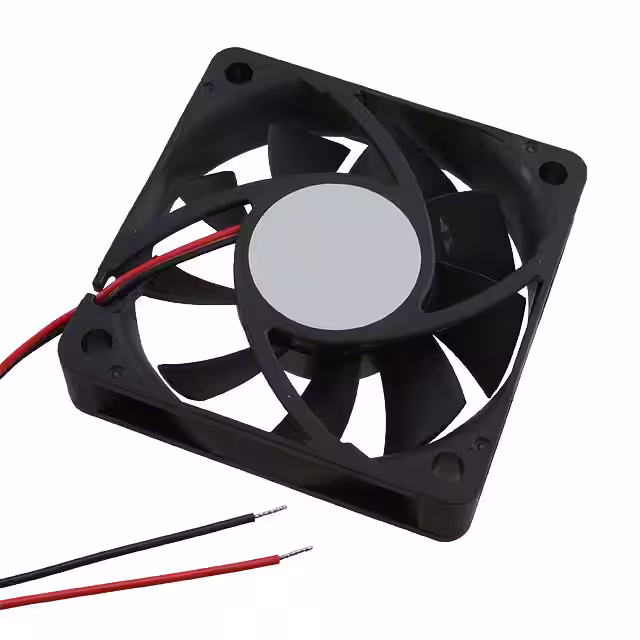

AFB0612LCFAN AXIAL 60X13MM 12VDC WIRE |
106 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 13.00mm | 15.4 CFM (0.431m³/min) | 0.083 in H2O (20.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 960 mW | 3000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.074 lb (33.56 g) |
|
PEAD18038BHFAN 12VDC 80X38MM PWM/TACH |
1,997 |
|
数据手册 |
PE | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 38.00mm | 134.5 CFM (3.77m³/min) | 1.970 in H2O (490.7 Pa) | Ball | Tubeaxial | Auto Restart | 65.5dB(A) | 37.2 W | 10200 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
DC0402812M2B-2T0FAN AXIAL 40X28MM 12VDC WIRE |
590 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 40mm L x 40mm H | 28.00mm | 18.7 CFM (0.524m³/min) | 0.920 in H2O (229.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 51.0dB(A) | 4.2 W | 11000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.045 lb (20.41 g) |
|
|
9A0824H4021FAN AXIAL 80X25MM 24VDC WIRE |
236 |
|
数据手册 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 29.0dB(A) | 1.68 W | 2900 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
DC1202548M2B-2T0FAN 120X25MM 48VDC |
540 |
|
数据手册 |
- | Bulk | Active | 48VDC | Square - 120mm L x 120mm H | 25.00mm | 86.9 CFM (2.43m³/min) | 0.280 in H2O (69.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 42.0dB(A) | 23.04 W | 2800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus | - |
|
|
109P0405H9D01FAN AXIAL 40X10MM BALL 5VDC WIRE |
199 |
|
数据手册 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.3 CFM (0.148m³/min) | 0.165 in H2O (41.1 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 25.0dB(A) | 800 mW | 6200 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|
|
109P0405M901FAN AXIAL 40X10MM BALL 5VDC WIRE |
153 |
|
数据手册 |
San Ace 40 | Box | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 4.2 CFM (0.118m³/min) | 0.108 in H2O (27.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 21.0dB(A) | 550 mW | 5000 RPM | 3 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | CSA, TUV, UL | 0.042 lb (19.05 g) |
|
|
9A0924G4D01FAN AXIAL 92X25MM 24VDC WIRE |
321 |
|
数据手册 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 62.1 CFM (1.74m³/min) | 0.267 in H2O (66.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 43.0dB(A) | 4.56 W | 3900 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
9A0924S4011FAN AXIAL 92X25MM 24VDC WIRE |
182 |
|
数据手册 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 58.6 CFM (1.64m³/min) | 0.225 in H2O (56.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 39.0dB(A) | 3.6 W | 3550 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
DC0382012M2B-2T0FAN AXIAL 38X20MM 12VDC WIRE |
630 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 38mm L x 38mm H | 20.00mm | 7.4 CFM (0.207m³/min) | 0.340 in H2O (84.7 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 40.0dB(A) | 1.44 W | 8000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.067 lb (30.39 g) |
|

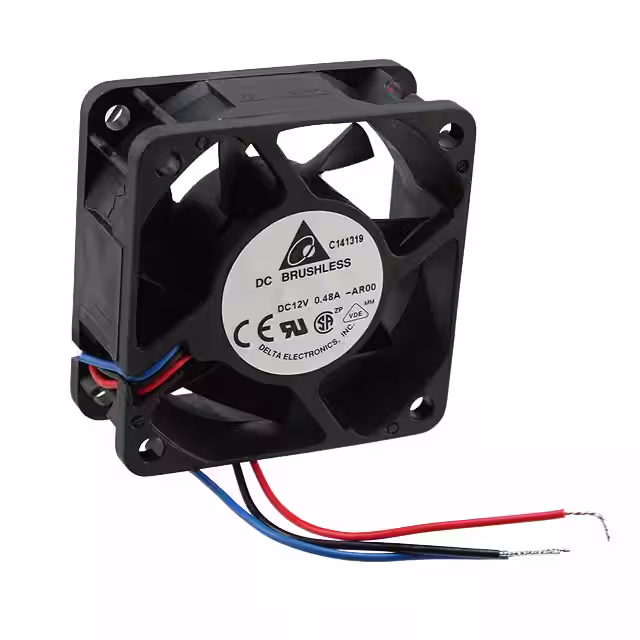

AFB0612EH-AR00FAN AXIAL 60X25.4MM 12VDC WIRE |
180 |
|
数据手册 |
AFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 25.40mm | 38.4 CFM (1.08m³/min) | 0.544 in H2O (135.5 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 46.5dB(A) | 4.56 W | 6800 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|

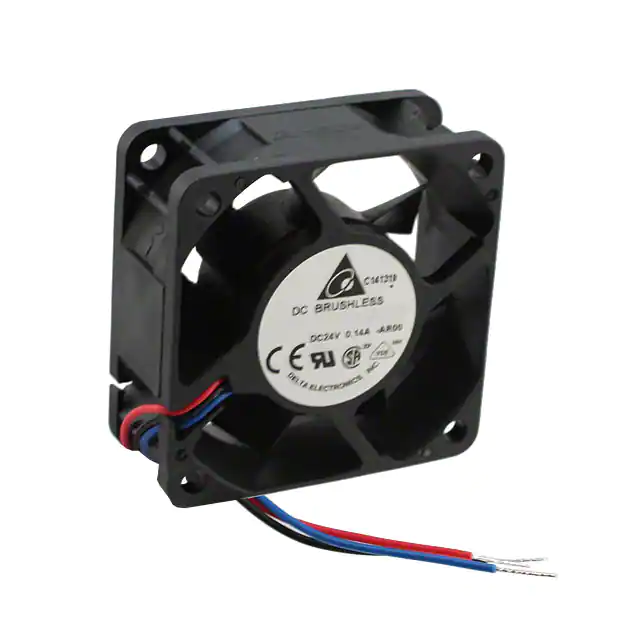

AFB0624HH-AR00FAN AXIAL 60X25.4MM 24VDC WIRE |
176 |
|
数据手册 |
AFB | Bulk | Active | 24VDC | Square - 60mm L x 60mm H | 25.40mm | 27.6 CFM (0.773m³/min) | 0.294 in H2O (73.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 40.0dB(A) | 2.64 W | 5000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.176 lb (80.00 g) |
|
|
CBM-9330B-140-507DC BLOWER, 92.3 X 92.6 X 30 MM, |
249 |
|
数据手册 |
CBM-93B | Box | Active | 12VDC | Rectangular/Rounded - 92.5mm L x 92.3mm H | 29.50mm | 21.4 CFM (0.599m³/min) | 1.290 in H2O (321.3 Pa) | Ball | Blower | Auto Restart | 47.8dB(A) | 6.36 W | 3500 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
|
EUB0912HF-03P1AXIAL 92X42MM 12VDC IP51 |
560 |
|
数据手册 |
EUB | Box | Active | 12VDC | Square - 92mm L x 92mm H | 32.00mm | 47.0 CFM (1.32m³/min) | 0.227 in H2O (56.5 Pa) | Superflo | Tubeaxial | Locked Rotor Protection, PWM Control, Speed Sensor (Tach) | 33.5dB(A) | 1.44 W | 3350 RPM | 4 Wire Leads | IP51 - Dust Protected | -40°C ~ 40°C | CE, cURus, TUV | - |
|

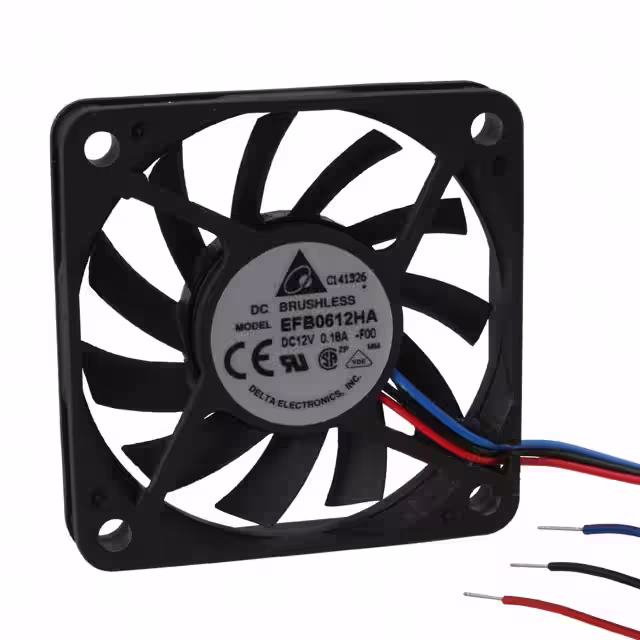

EFB0612HA-F00FAN AXIAL 60X10MM 12VDC WIRE |
633 |
|
数据手册 |
EFB | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 18.0 CFM (0.504m³/min) | 0.132 in H2O (32.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 33.0dB(A) | 1.44 W | 4200 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
EFB0612LA-R00FAN AXIAL 60X10MM 12VDC WIRE |
315 |
|
数据手册 |
EFB | Box | Active | 12VDC | Square - 60mm L x 60mm H | 10.00mm | 13.4 CFM (0.375m³/min) | 0.065 in H2O (16.2 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 24.5dB(A) | 840 mW | 3000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.062 lb (28.12 g) |
|
|
MF35060V2-1000U-A99Thermal Products |
3,514 |
|
数据手册 |
MF | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 6.50mm | 4.3 CFM (0.120m³/min) | 0.070 in H2O (17.4 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart | 18.3dB(A) | 330 mW | 5800 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CUR, TUV, UL | - |
|
UF3C3-500TCFAN AXIAL 12X3MM VAPO 3VDC WIRE |
468 |
|
数据手册 |
MagLev® UF, Mighty Mini | Tray | Active | 3VDC | Square - 12mm L x 12mm H | 3.00mm | 0.218 CFM (0.006m³/min) | 0.076 in H2O (18.9 Pa) | Vapo-Bearing™ | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 28.3dB(A) | 300 mW | 16500 RPM | 3 Wire Leads | IP55 - Dust Protected, Water Resistant | 14 ~ 158°F (-10 ~ 70°C) | CE | 0.002 lb (0.91 g) |
