直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9A0824H401FAN AXIAL 80X25MM 24VDC WIRE |
1,294 |
|
数据手册 |
San Cooler 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 36.4 CFM (1.02m³/min) | 0.142 in H2O (35.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 1.68 W | 2900 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
109P0424G3013FAN AXIAL 40X28MM 24VDC WIRE |
417 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 14.8 CFM (0.414m³/min) | 0.719 in H2O (179.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 42.0dB(A) | 4.56 W | 11500 RPM | 3 Wire Leads | - | -4 ~ 140°F (-20 ~ 60°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
CFM-8025BG-150-444FAN AXIAL 80X25.4MM 12VDC WIRE |
211 |
|
数据手册 |
CFM-80BG | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.40mm | 51.7 CFM (1.45m³/min) | 0.430 in H2O (107.1 Pa) | Ball | Tubeaxial | Auto Restart | 44.5dB(A) | 4.2 W | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
OD4020-24HB02AFAN AXIAL 40X20MM 24VDC WIRE |
959 |
|
数据手册 |
OD4020 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 9.0 CFM (0.252m³/min) | 0.320 in H2O (79.7 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Sensor | 32.1dB(A) | 1.72 W | 8190 RPM | 3 Wire Leads | - | -4 ~ 149°F (-20 ~ 65°C) | CE, cURus, TUV | - |
|
06020SA-12N-EA-00FAN AXIAL 60X20MM 12VDC WIRE |
115 |
|
数据手册 |
06020SA | Box | Active | 12VDC | Square - 60mm L x 60mm H | 20.00mm | 20.5 CFM (0.574m³/min) | 0.210 in H2O (52.3 Pa) | Ball | Tubeaxial | Auto Restart | 30.5dB | 1.08 W | 4400 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | - | - |
|

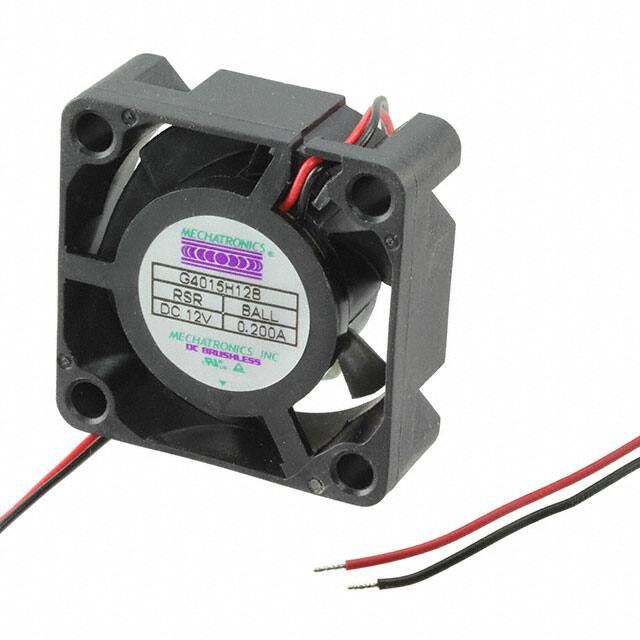

G4015H12B-RSRFAN AXIAL 40X15MM 12VDC WIRE |
188 |
|
数据手册 |
G4015 | Bulk | Active | 12VDC | Square - 40mm L x 40mm H | 15.00mm | 8.0 CFM (0.224m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 29.0dB(A) | - | 8000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.051 lb (23.13 g) |
|
F8025H24B4-FSRFAN AXIAL 80X25MM 24VDC WIRE |
117 |
|
数据手册 |
F8025 | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 39.0 CFM (1.09m³/min) | 0.120 in H2O (29.9 Pa) | Ball | Tubeaxial | Auto Restart, Locked Rotor Protection, Thermistor | 29.0dB(A) | - | 2400 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.174 lb (78.93 g) |
|
9A0812S4011FAN AXIAL 80X25MM 12VDC WIRE |
297 |
|
数据手册 |
San Cooler 80 | Box | Active | 12VDC | Square - 80mm L x 80mm H | 25.00mm | 42.4 CFM (1.19m³/min) | 0.193 in H2O (48.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 34.0dB(A) | 2.16 W | 3400 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
G8015H12B-RGRFAN AXIAL 80X15.3MM 12VDC WIRE |
107 |
|
数据手册 |
G8015-G | Bulk | Active | 12VDC | Square - 80mm L x 80mm H | 15.30mm | 37.0 CFM (1.04m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 36.0dB(A) | - | 4000 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
|
G8015X24B-RGRFAN AXIAL 80X15.3MM 24VDC WIRE |
208 |
|
数据手册 |
G8015-G | Bulk | Active | 24VDC | Square - 80mm L x 80mm H | 15.30mm | 43.0 CFM (1.20m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 40.0dB(A) | - | 4800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
109R0824F4D01FAN AXIAL 80X25MM 24VDC WIRE |
422 |
|
数据手册 |
San Ace 80 | Box | Active | 24VDC | Square - 80mm L x 80mm H | 25.00mm | 32.5 CFM (0.910m³/min) | 0.114 in H2O (28.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 26.0dB(A) | 1.44 W | 2600 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
|
G8015L05B-RGRFAN AXIAL 80X15.3MM 5VDC WIRE |
154 |
|
数据手册 |
G8015-G | Bulk | Active | 5VDC | Square - 80mm L x 80mm H | 15.30mm | 29.0 CFM (0.812m³/min) | 0.110 in H2O (27.4 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 31.0dB(A) | - | 3200 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.128 lb (58.06 g) |
|
MB6010X12B1-RSRFAN AXIAL 60X10.2MM 12VDC WIRE |
148 |
|
数据手册 |
MB6010 | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 10.20mm | 18.7 CFM (0.524m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Speed Sensor (Tach), Thermal Overload Protector (TOP) | 35.0dB(A) | - | 5300 RPM | 3 Wire Leads | - | - | cUL, UL | 0.059 lb (26.76 g) |
|
109R0805M4D01FAN AXIAL 80X25MM BALL 5VDC WIRE |
425 |
|
数据手册 |
San Ace 80 | Box | Active | 5VDC | Square - 80mm L x 80mm H | 25.00mm | 29.3 CFM (0.820m³/min) | 0.090 in H2O (22.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 850 mW | 2350 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.243 lb (110.22 g) |
|
109R0612M402FAN AXIAL 60X25MM 12VDC WIRE |
421 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 12.7 CFM (0.356m³/min) | 0.079 in H2O (19.6 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 20.0dB(A) | 720 mW | 2600 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0612D402FAN AXIAL 60X25MM 12VDC WIRE |
419 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 25.4 CFM (0.711m³/min) | 0.295 in H2O (73.5 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 37.0dB(A) | 2.52 W | 5150 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
|
109R0612F4021FAN AXIAL 60X25MM 12VDC WIRE |
309 |
|
数据手册 |
San Ace 60 | Box | Active | 12VDC | Square - 60mm L x 60mm H | 25.00mm | 15.5 CFM (0.434m³/min) | 0.118 in H2O (29.4 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 24.0dB(A) | 1.08 W | 3200 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.199 lb (90.26 g) |
|
CFM-4010B-280-296-20FAN AXIAL 40X10.5MM 24VDC WIRE |
115 |
|
数据手册 |
CFM-40B | Box | Active | 24VDC | Square - 40mm L x 40mm H | 10.50mm | 6.8 CFM (0.190m³/min) | 0.170 in H2O (42.3 Pa) | Ball | Tubeaxial | Auto Restart, Speed Sensor (Tach) | 29.6dB(A) | 1.92 W | 8000 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
(8020BF)(8038BF).jpg)
|
CFM-8015BF-240-363-22FAN AXIAL 80X15.4MM 24VDC WIRE |
103 |
|
数据手册 |
CFM-80BF | Box | Active | 24VDC | Square - 80mm L x 80mm H | 15.40mm | 46.5 CFM (1.30m³/min) | 0.180 in H2O (45.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 36.3dB(A) | 5.04 W | 4000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
MD4028E24B-RSRFAN AXIAL 40X28MM 24VDC WIRE |
307 |
|
数据手册 |
MD4028 | Bulk | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | 15.2 CFM (0.426m³/min) | 0.670 in H2O (166.9 Pa) | Ball | Tubeaxial | Thermal Overload Protector (TOP) | 44.0dB(A) | - | 10300 RPM | 2 Wire Leads | - | - | cUL, TUV, UL | 0.111 lb (50.35 g) |
