直流无刷风扇（BLDC）
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 额定电压 | 尺寸 / 尺寸 | 宽度 | 气流 | 静压 | 轴承类型 | 风扇类型 | 特性 | 噪音 | 功率（瓦特） | 转速（RPM） | 端接方式 | 防护等级 | 工作温度 | 认证机构 | 重量 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DC0251012H2B-2T0FAN AXIAL 25X10MM 12VDC WIRE |
526 |
|
数据手册 |
- | Box | Active | 12VDC | Square - 25mm L x 25mm H | 10.00mm | 2.4 CFM (0.067m³/min) | 0.290 in H2O (72.2 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 960 mW | 13000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
109P0424H301FAN AXIAL 40X28MM 24VDC WIRE |
725 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 28.00mm | - | - | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 37.0dB(A) | 2.28 W | 8700 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.115 lb (52.16 g) |
|
109P0624S701FAN AXIAL 60X15MM 24VDC WIRE |
272 |
|
数据手册 |
San Ace 60 | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.00mm | 16.9 CFM (0.473m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Tubeaxial | Locked Rotor Protection, Speed Sensor (Tach) | 36.0dB(A) | 1.92 W | 5000 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.133 lb (60.33 g) |
|

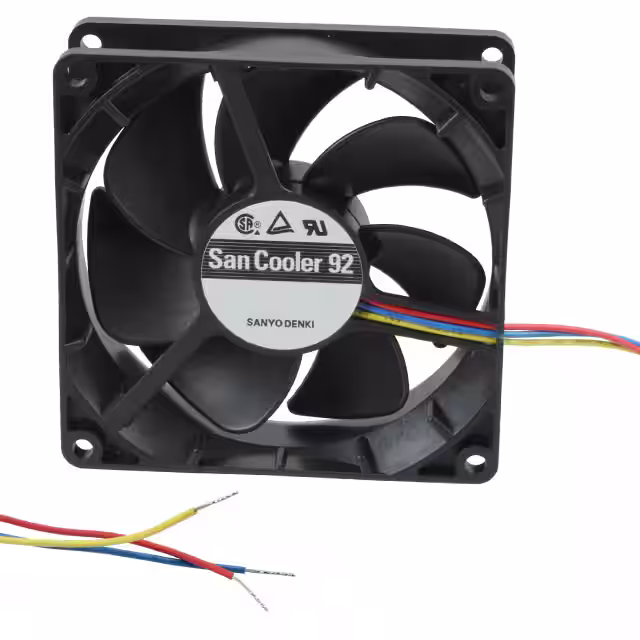

9A0924L4D011FAN AXIAL 92X25MM 24VDC WIRE |
953 |
|
数据手册 |
San Cooler 92 | Box | Active | 24VDC | Square - 92mm L x 92mm H | 25.00mm | 28.2 CFM (0.790m³/min) | 0.054 in H2O (13.4 Pa) | Ball | Tubeaxial | Locked Rotor Sensor | 23.0dB(A) | 960 mW | 1750 RPM | 3 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.222 lb (100.7 g) |
|
109P0412F602FAN AXIAL 40X20MM 12VDC WIRE |
405 |
|
数据手册 |
San Ace 40 | Box | Active | 12VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | - | 28.0dB(A) | 1.08 W | 6500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
|
109P0424F602FAN AXIAL 40X20MM 24VDC WIRE |
356 |
|
数据手册 |
San Ace 40 | Box | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 6.5 CFM (0.182m³/min) | 0.181 in H2O (45.1 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 28.0dB(A) | 1.44 W | 6500 RPM | 2 Wire Leads | - | -4 ~ 158°F (-20 ~ 70°C) | CSA, TUV, UL | 0.101 lb (45.81 g) |
|
03828DA-12Q-AU-00FAN AXIAL 38X28MM 12VDC WIRE |
149 |
|
数据手册 |
03828DA | Box | Active | 12VDC | Square - 38mm L x 38mm H | 28.00mm | 19.4 CFM (0.543m³/min) | 2.160 in H2O (540.0 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 55.0dB | 5.9 W | 20000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | cUL, UL, VDE | 0.104 lb (47.17 g) |
|
EFB0424LDFAN AXIAL 40X20MM 24VDC WIRE |
2,190 |
|
数据手册 |
EFB | Tray | Active | 24VDC | Square - 40mm L x 40mm H | 20.00mm | 5.5 CFM (0.154m³/min) | 0.136 in H2O (33.9 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 22.0dB(A) | 960 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.073 lb (33.11 g) |
|
AFB0405MA-AFAN AXIAL 40X10MM BALL 5VDC WIRE |
846 |
|
数据手册 |
AFB | Bulk | Active | 5VDC | Square - 40mm L x 40mm H | 10.00mm | 5.7 CFM (0.160m³/min) | 0.104 in H2O (26.0 Pa) | Ball | Tubeaxial | Locked Rotor Protection | 21.5dB(A) | 250 mW | 5000 RPM | 2 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, CSA, UL, VDE | 0.031 lb (14.06 g) |
|
06015KA-12L-AA-00FAN AXIAL 60X15MM 12VDC WIRE |
1,137 |
|
数据手册 |
06015KA | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 14.1 CFM (0.395m³/min) | 0.130 in H2O (32.4 Pa) | Ball | Tubeaxial | Auto Restart | 28.0dB | 1.1 W | 3600 RPM | 2 Wire Leads | - | 14 ~ 140°F (-10 ~ 60°C) | - | - |
6025BF).jpg)
|

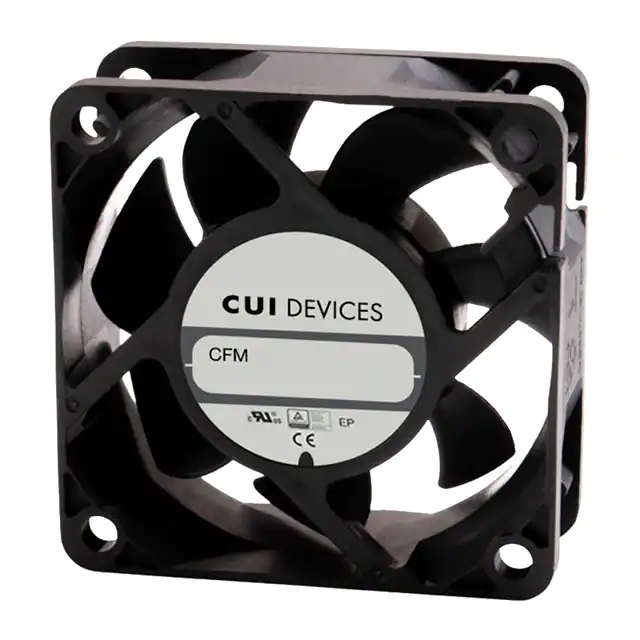

CFM-6015BF-255-375-22FAN AXIAL 60X15.5MM 24VDC WIRE |
189 |
|
数据手册 |
CFM-60BF | Box | Active | 24VDC | Square - 60mm L x 60mm H | 15.50mm | 24.2 CFM (0.678m³/min) | 0.230 in H2O (57.3 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.6dB(A) | 3.6 W | 5500 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|

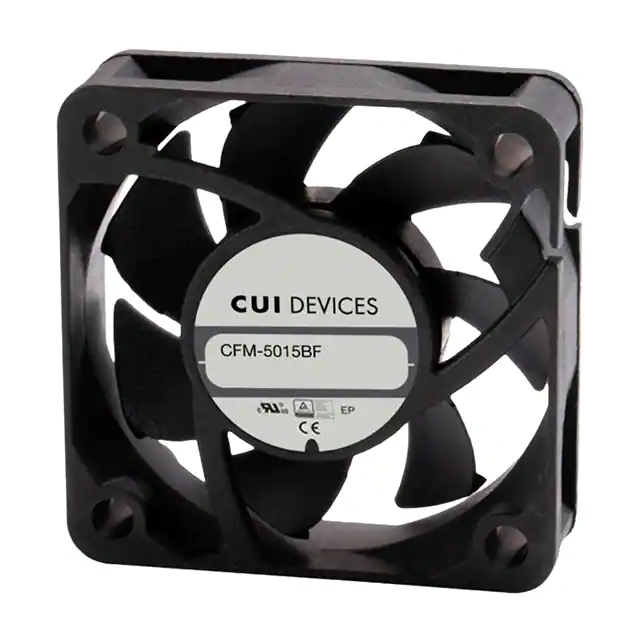

CFM-5015BF-160-374-22FAN AXIAL 50X15.5MM 12VDC WIRE |
179 |
|
数据手册 |
CFM-50BF | Box | Active | 12VDC | Square - 50mm L x 50mm H | 15.50mm | 15.6 CFM (0.437m³/min) | 0.200 in H2O (49.8 Pa) | Ball | Tubeaxial | Auto Restart, PWM Control, Speed Sensor (Tach) | 37.4dB(A) | 2.4 W | 6000 RPM | 4 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | - |
|
BFB0312HA-CF00FAN BLOWER 30X10MM 12VDC WIRE |
1,507 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.5 CFM (0.042m³/min) | 0.285 in H2O (71.0 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 840 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB03512MA-CF00FAN BLOWER 35X10MM 12VDC WIRE |
578 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.6 CFM (0.045m³/min) | 0.236 in H2O (58.8 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 26.0dB(A) | 720 mW | 6500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB03512LA-CF00FAN BLOWER 35X10MM 12VDC WIRE |
318 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 24.0dB(A) | 600 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB0312HHA-CR00FAN BLOWER 30X10MM 12VDC WIRE |
250 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 30mm L x 30mm H | 10.00mm | 1.7 CFM (0.046m³/min) | 0.370 in H2O (92.2 Pa) | Ball | Blower | Locked Rotor Sensor | 31.0dB(A) | 1.08 W | 8500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.023 lb (10.43 g) |
|
|
BFB03505LA-CR00FAN BLOWER 35X10MM 5VDC WIRE |
223 |
|
数据手册 |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 1.3 CFM (0.036m³/min) | 0.163 in H2O (40.6 Pa) | Ball | Blower | Locked Rotor Sensor | 24.0dB(A) | 450 mW | 5500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
G6015X12B-RHR-L18FAN AXIAL 60X15MM 12VDC WIRE |
210 |
|
数据手册 |
G6015-H | Bulk | Active | 12VDC | Square - 60mm L x 60mm H | 15.00mm | 22.0 CFM (0.616m³/min) | 0.300 in H2O (74.7 Pa) | Ball | Tubeaxial | - | 39.0dB(A) | - | 5800 RPM | 2 Wire Leads | - | - | CE, cUL, TUV, UL | 0.111 lb (50.35 g) |
|
|
BFB03512HA-CF00FAN BLOWER 35X10MM 12VDC WIRE |
172 |
|
数据手册 |
BFB | Bulk | Active | 12VDC | Square - 35mm L x 35mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Blower | Locked Rotor Protection, Speed Sensor (Tach) | 29.0dB(A) | 960 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
|
|
BFB03505HA-CR00FAN BLOWER 35X10MM 5VDC WIRE |
143 |
|
数据手册 |
BFB | Bulk | Active | 5VDC | Square - 35mm L x 35mm H | 10.00mm | 1.8 CFM (0.050m³/min) | 0.335 in H2O (83.4 Pa) | Ball | Blower | Locked Rotor Sensor | 29.0dB(A) | 650 mW | 7500 RPM | 3 Wire Leads | - | 14 ~ 158°F (-10 ~ 70°C) | CE, cURus, TUV | 0.025 lb (11.34 g) |
