电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3621LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,723 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 224.81lbf (1000.0N) | 1011.64lbf (4500.0N) | 0.58 in/s (14.7 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3612LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,065 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 4.000" (101.60mm) | 224.81lbf (1000.0N) | 1011.64lbf (4500.0N) | 0.58 in/s (14.7 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3614SERVOMOTOR RC 120 RPM 6V Pololu Corporation |
3,436 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 6.000" (152.40mm) | 224.81lbf (1000.0N) | 1011.64lbf (4500.0N) | 0.58 in/s (14.7 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|

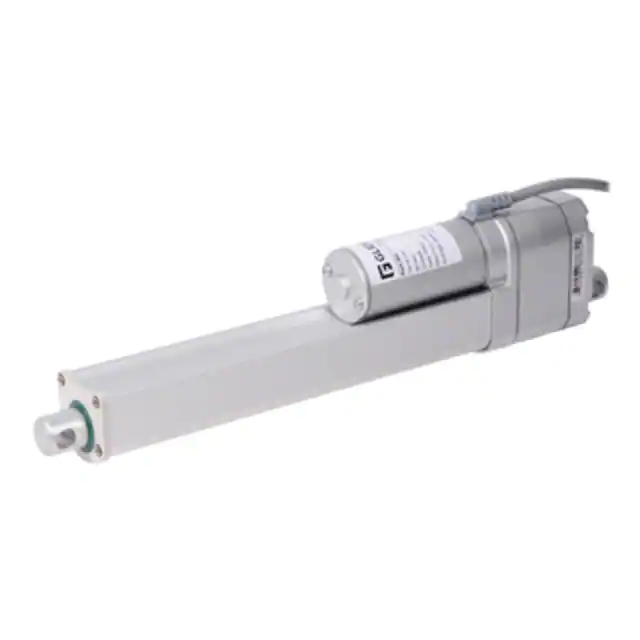

3616LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
3,790 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 8.000" (203.20mm) | 224.81lbf (1000.0N) | 1011.64lbf (4500.0N) | 0.58 in/s (14.7 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|

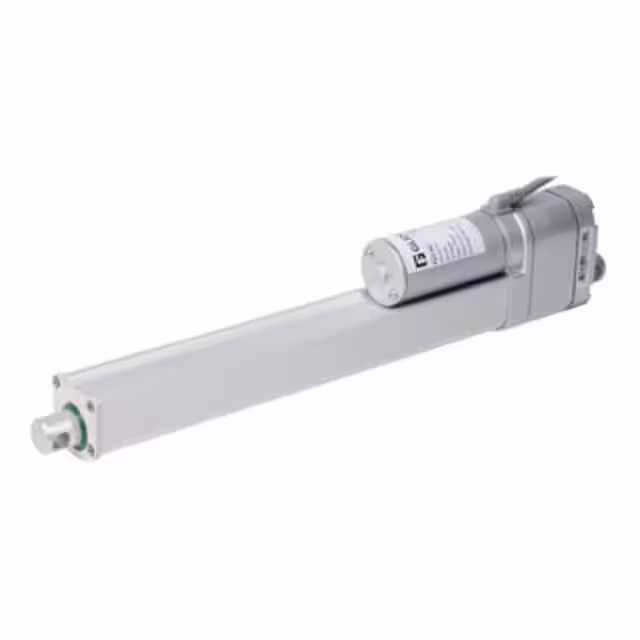

3618LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,319 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 10.000" (254.00mm) | 224.81lbf (1000.0N) | 1011.64lbf (4500.0N) | 0.58 in/s (14.7 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|

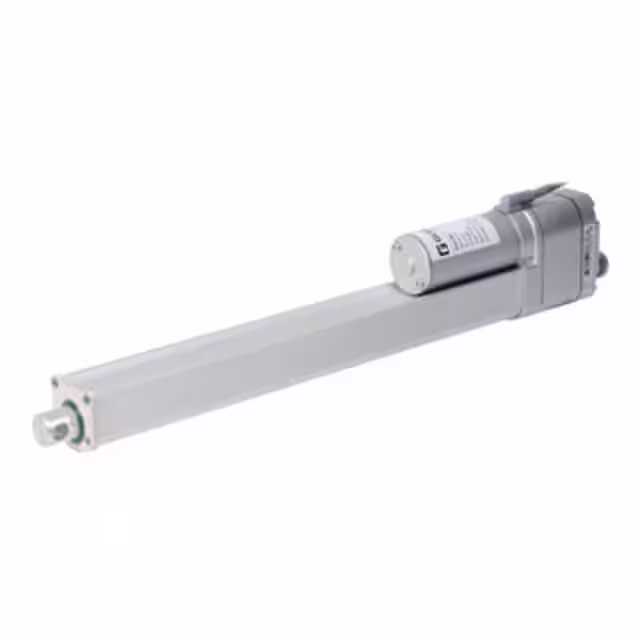

3620LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
2,128 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 224.81lbf (1000.0N) | 1011.64lbf (4500.0N) | 0.58 in/s (14.7 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3601LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,606 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 4.000" (101.60mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3603LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
1,802 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 6.000" (152.40mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3605LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
2,190 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 8.000" (203.20mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3607LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,548 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 562.02lbf (2500.0N) | 1011.64lbf (4500.0N) | 0.66 in/s (16.8 mm/s) | 25% | 12VDC | ACME Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
