电动执行器/气缸
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电机类型 | 行程长度 | 负载力（动态） | 负载力（静态） | 速度 | 占空比 | 额定电压 | 结构 | 精度 | 加速度 | 特性 | 齿轮减速比 | 反馈类型 | 端接样式 | 工作温度 | 防护等级 | 认证机构 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

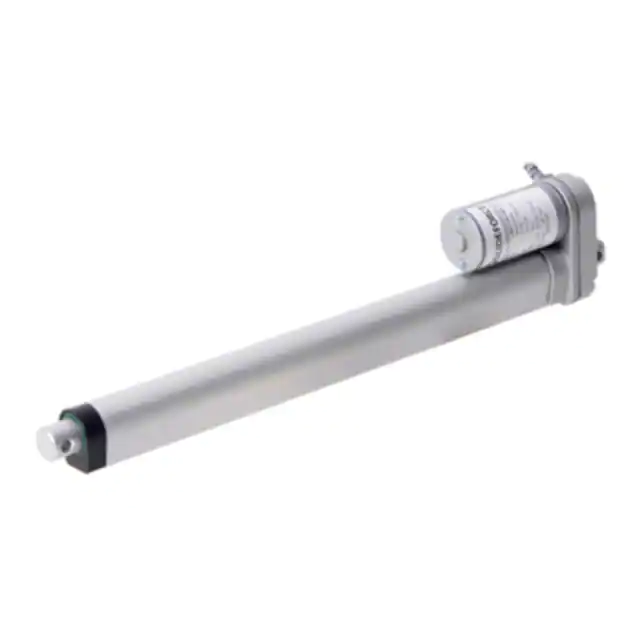

2312LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
1,371 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 112.40lbf (500.0N) | 562.02lbf (2500.0N) | 0.57 in/s (14.5 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
2316LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
1,614 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 2.000" (50.80mm) | 33.72lbf (150.0N) | 562.02lbf (2500.0N) | 1.73 in/s (43.9 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 5 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
2324LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
2,959 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 10.000" (254.00mm) | 33.72lbf (150.0N) | 562.02lbf (2500.0N) | 1.73 in/s (43.9 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 5 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3652LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,953 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 56.20lbf (250.0N) | 562.02lbf (2500.0N) | 1.10 in/s (28.0 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 10 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3646LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
2,862 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 6.000" (152.40mm) | 56.20lbf (250.0N) | 562.02lbf (2500.0N) | 1.10 in/s (28.0 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 10 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|

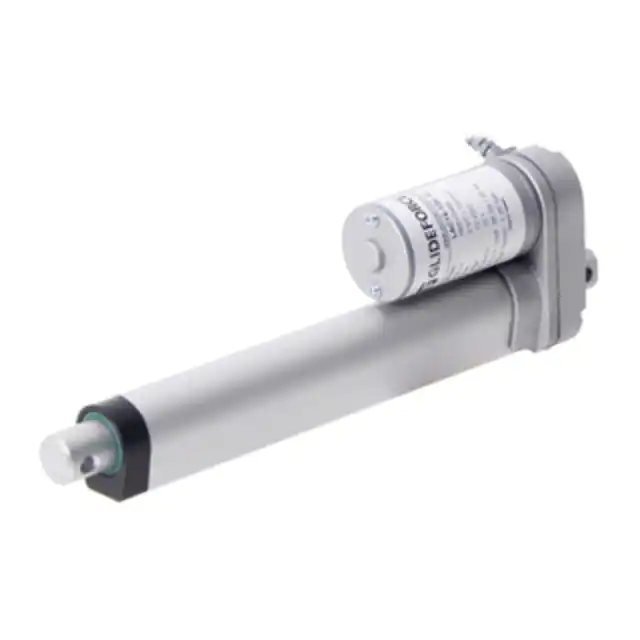

2320LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
3,837 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 6.000" (152.40mm) | 33.72lbf (150.0N) | 562.02lbf (2500.0N) | 1.73 in/s (43.9 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 5 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
|
2326LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
4,568 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 12.000" (304.80mm) | 33.72lbf (150.0N) | 562.02lbf (2500.0N) | 1.73 in/s (43.9 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 5 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
3644LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
2,329 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 4.000" (101.60mm) | 56.20lbf (250.0N) | 562.02lbf (2500.0N) | 1.10 in/s (28.0 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 10 | - | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
|
2319LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
3,680 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 4.000" (101.60mm) | 33.72lbf (150.0N) | 562.02lbf (2500.0N) | 1.73 in/s (43.9 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 5 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
|
2303LINEAR ACTUATOR MOTOR 12V Pololu Corporation |
1,140 |
|
数据手册 |
Glideforce | - | Active | Linear Actuator | Brushed | 2.000" (50.80mm) | 112.40lbf (500.0N) | 562.02lbf (2500.0N) | 0.57 in/s (14.5 mm/s) | 25% | 12VDC | Ball Screw | - | - | Limit Switches | 20 | Potentiometer | Cable with Connector | -25°C ~ 65°C | IP65 - Dust Tight, Water Resistant | - |
