DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

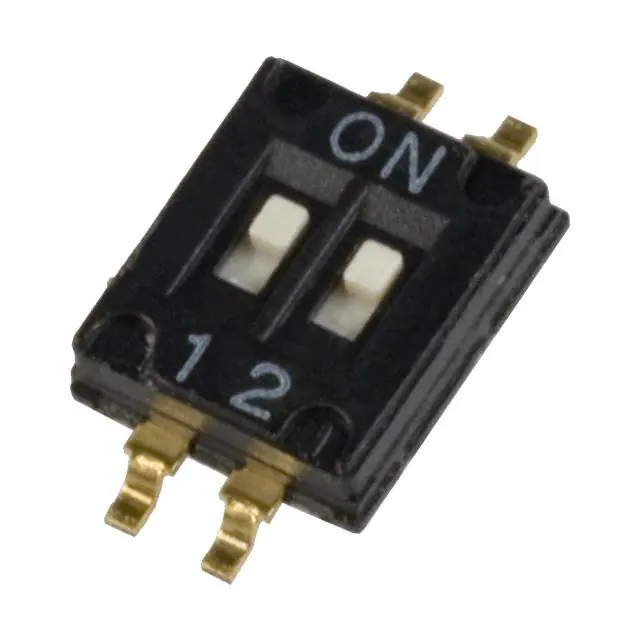

97R02STSWITCH SLIDE DIP SPST 0.025A 24V |
4,902 |
|
数据手册 |
97 | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.061" (1.55mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
|
FR01KR10H-06XLSWITCH ROTARY DIP BCD 0.1A 5V |
1,826 |
|
数据手册 |
FR01 | Bulk | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

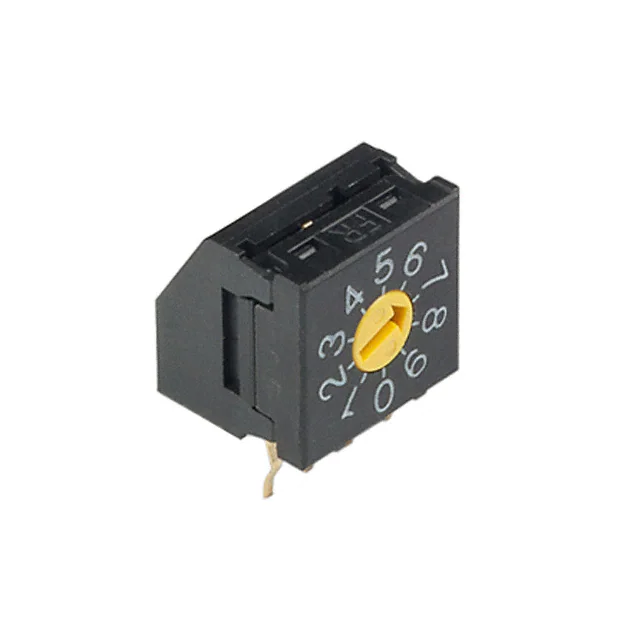

FR01FC10H-06XL-SSW ROTARY DIP BCD COMP 0.1A 5V |
1,767 |
|
数据手册 |
FR01 | Tube | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

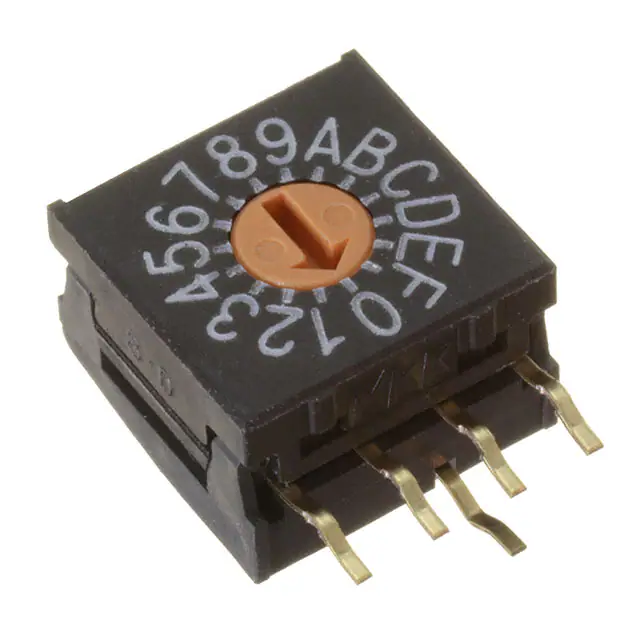

FR01FR16HSWITCH ROTARY DIP HEX 0.1A 5V |
1,169 |
|
数据手册 |
FR01 | Bulk | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

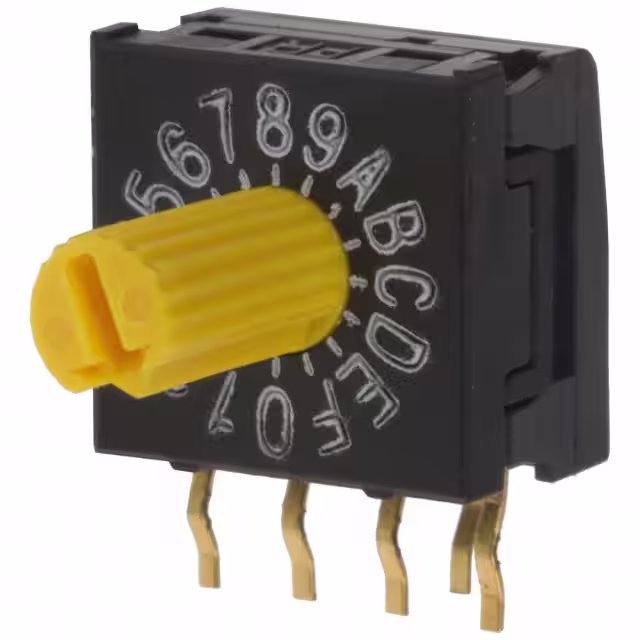

FR01KC16H-SSW ROTARY DIP HEX COMP 0.1A 5V |
339 |
|
数据手册 |
FR01 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01FR10H-06XL-SSWITCH ROTARY DIP BCD 0.1A 5V |
158 |
|
数据手册 |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
FR01KR16H-SSWITCH ROTARY DIP HEX 0.1A 5V |
120 |
|
数据手册 |
FR01 | Tube | Active | Hexadecimal | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
A6RV-161RSSWITCH ROTARY DIP HEX 0.025A 24V |
165 |
|
数据手册 |
A6RV | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|
STV08SWITCH SLIDE DIP SPST 0.01A 5V |
440 |
|
数据手册 |
STV | Tube | Active | SPST | 8 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6R-162RSSWITCH ROTARY DIP HEX 0.025A 24V |
605 |
|
数据手册 |
A6R | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | - | 0.465" (11.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Sealed | -25°C ~ 80°C |
|

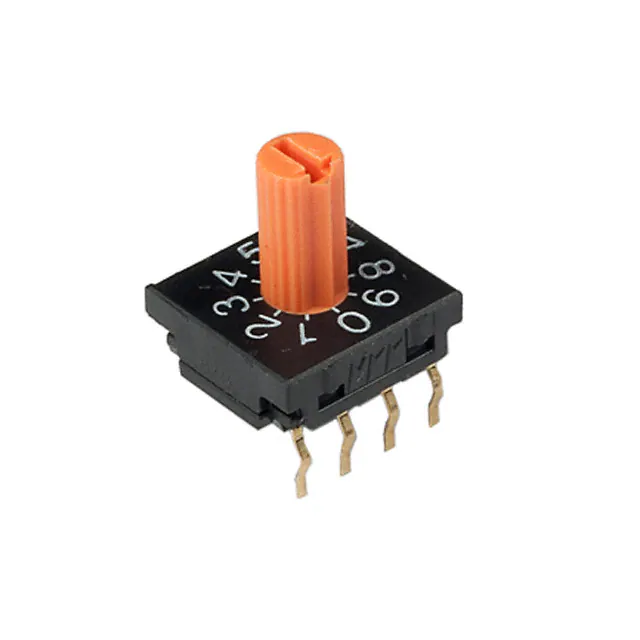

FR01KR10P-W-SSWITCH ROTARY DIP BCD 0.1A 5V |
807 |
|
数据手册 |
FR01 | Tube | Active | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.426" (10.82mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -25°C ~ 85°C |
.jpg)
|
A6C-10R(N)SWITCH ROTARY DIP BCD 0.1A 30V |
843 |
|
数据手册 |
A6C | Tube | Active | BCD | 10 | 100mA | 30VDC | Rotary for Tool | Flush, Recessed | - | - | 0.177" (4.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
MRSSV1DR16SMGWTSWITCH ROTARY DIP HEX 0.4VA 20V |
2,885 |
|
数据手册 |
MRSS | Tube | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.122" (3.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
76PSB10STSWITCH PIANO DIP SPST 0.15A 30V |
5,019 |
|
数据手册 |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
90HBW06PTSWITCH SLIDE DIP SPST 0.025A 24V |
5,265 |
|
数据手册 |
90HB | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

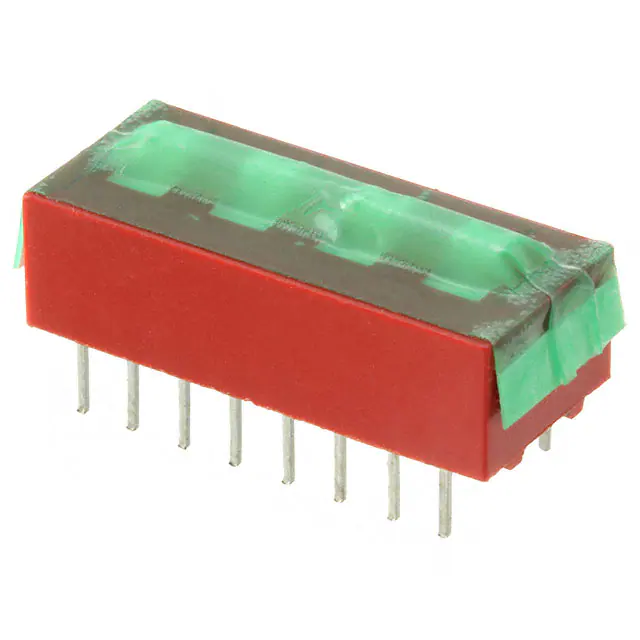

78F04STSWITCH SLIDE DIP DPST 0.15A 30V |
1,442 |
|
数据手册 |
78 | Tube | Active | DPST | 4 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
90HBW07PTSWITCH SLIDE DIP SPST 0.025A 24V |
209 |
|
数据手册 |
90HB | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.190" (4.83mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
76PSB12STSWITCH PIANO DIP SPST 0.15A 30V |
3,906 |
|
数据手册 |
76 | Tube | Active | SPST | 12 | 150mA | 30VDC | Piano | Raised | Copper Alloy | Gold | 0.301" (7.65mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
90HBJ02PTSWITCH SLIDE DIP SPST 0.025A 24V |
3,358 |
|
数据手册 |
90HB | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.220" (5.59mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

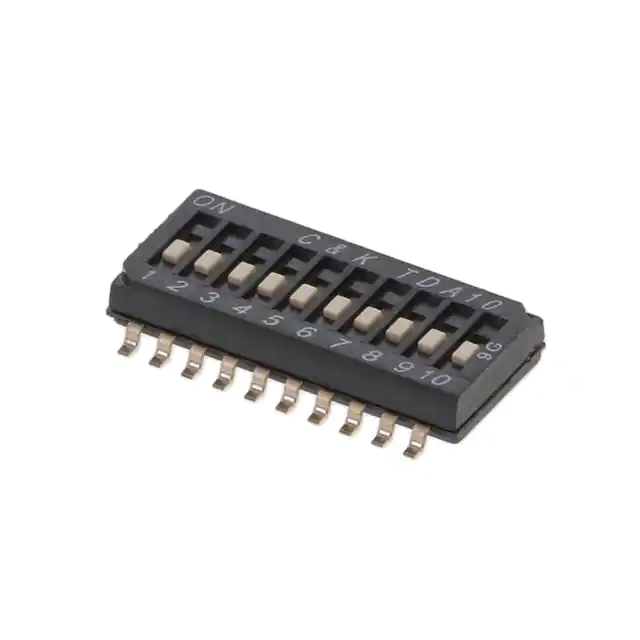

TDA10H0SB1SWITCH SLIDE DIP SPST 0.025A 24V |
13,874 |
|
数据手册 |
TDA | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
