DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
KP12RSWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
672 |
|
数据手册 |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

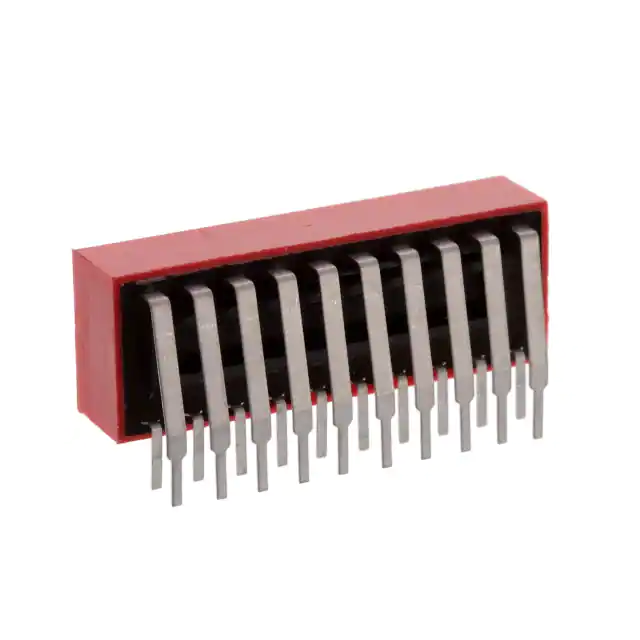

KR10ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
287 |
|
数据手册 |
KR | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

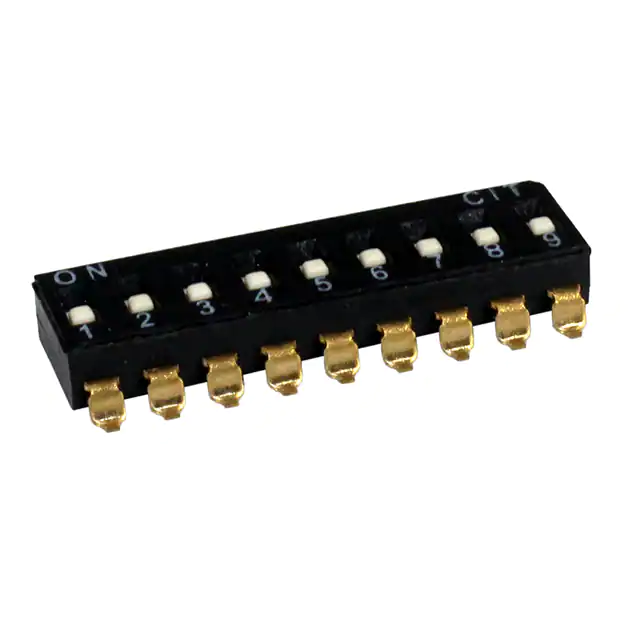

KJ09RTRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
885 |
|
数据手册 |
KJ | Tape & Reel (TR) | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP10ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
230 |
|
数据手册 |
KP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KE04RXGRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
1,255 |
|
数据手册 |
KE | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.091" (2.30mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -40°C ~ 85°C |
|

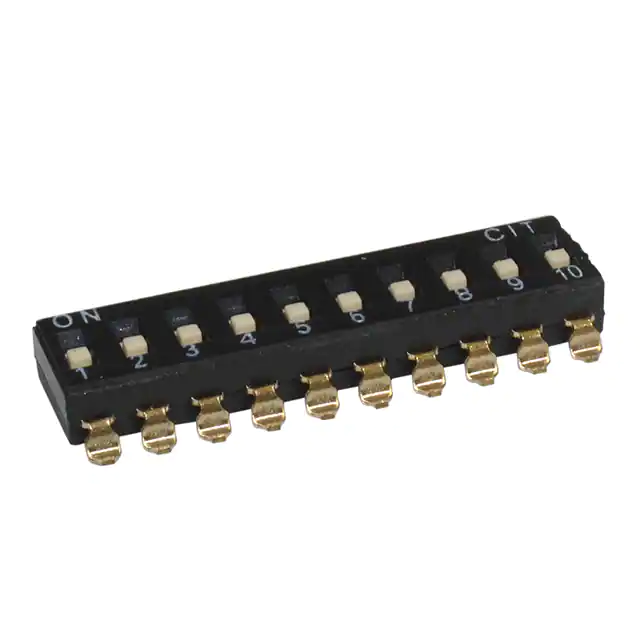

KJ10RTRSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
740 |
|
数据手册 |
KJ | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP12ESWITCH PIANO DIP SPST 0.025A 24V CIT Relay and Switch |
311 |
|
数据手册 |
KP | Tube | Active | SPST | 12 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
RD10RA16CGTSW ROTARY DIP HEX COMP 0.15A 50V CIT Relay and Switch |
528 |
|
数据手册 |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07B10RTTSWITCH ROTARY DIP BCD 0.1A 50V CIT Relay and Switch |
202 |
|
数据手册 |
RD07 | Tube | Active | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.337" (8.56mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD07A16CTTSW ROTARY DIP HEX COMP 0.1A 50V CIT Relay and Switch |
200 |
|
数据手册 |
RD07 | Tube | Active | Hexadecimal Complement | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.65mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
