DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RD10RA10RGRSWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch |
888 |
|
数据手册 |
RD10 | Tape & Reel (TR) | Active | BCD | 10 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA16CVATSW ROTARY DIP HEX COMP 0.15A 50V CIT Relay and Switch |
174 |
|
数据手册 |
RD10 | Tube | Active | Hexadecimal Complement | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RA16RGTSWITCH ROTARY DIP HEX 0.15A 50V CIT Relay and Switch |
355 |
|
数据手册 |
RD10 | Tube | Active | Hexadecimal | 16 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
RD10RB6RTTSWITCH ROTARY DIP BCD 0.15A 50V CIT Relay and Switch |
326 |
|
数据手册 |
RD10 | Tube | Active | BCD | 6 | 150mA | 50VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
RD10RA8RGRSW ROTARY DIP OCTAL 0.15A 50V CIT Relay and Switch |
700 |
|
数据手册 |
RD10 | Tape & Reel (TR) | Active | Octal | 8 | 150mA | 50VDC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KR09RSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
379 |
|
数据手册 |
KR | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KT02RHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
414 |
|
数据手册 |
KT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.142" (3.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

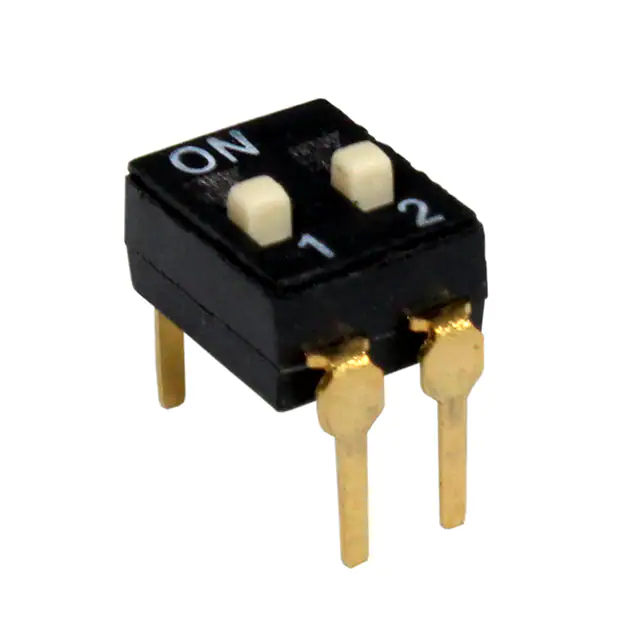

KT02EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
357 |
|
数据手册 |
KT | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KR02ESWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
327 |
|
数据手册 |
KR | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

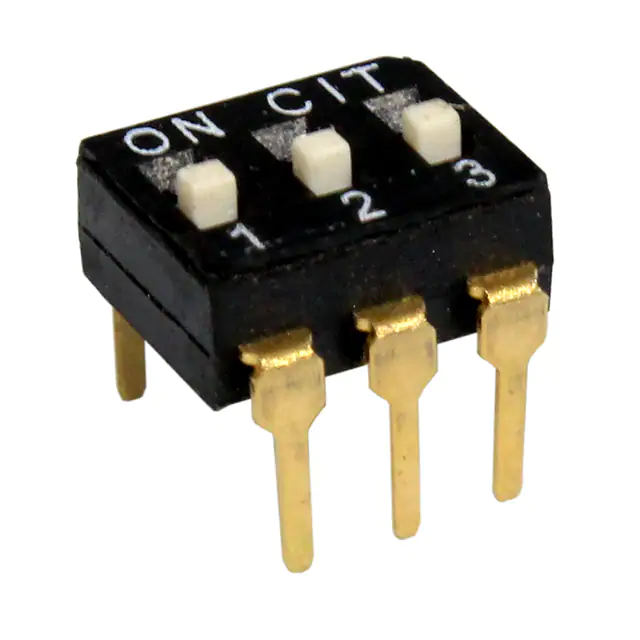

KT03EHSWITCH SLIDE DIP SPST 0.025A 24V CIT Relay and Switch |
409 |
|
数据手册 |
KT | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.165" (4.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
