DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
220AMC16RSWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
1,138 |
|
数据手册 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
221AMA10RSWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
25,212 |
|
数据手册 |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

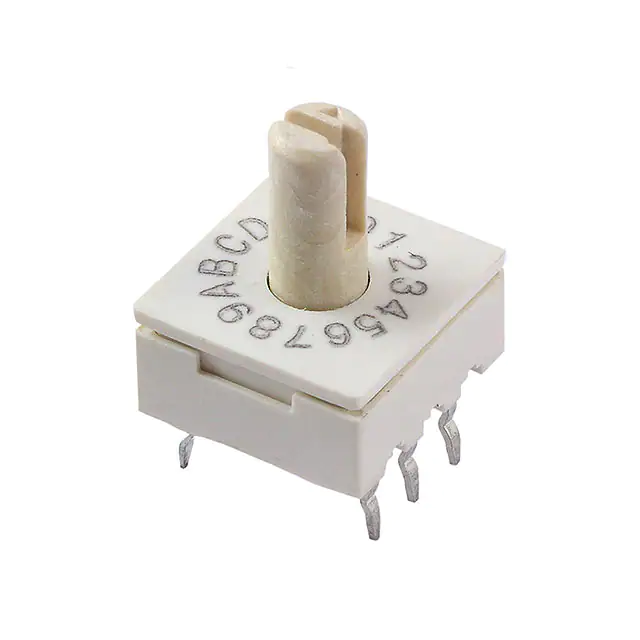

221ADC16SWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
2,945 |
|
数据手册 |
221 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|

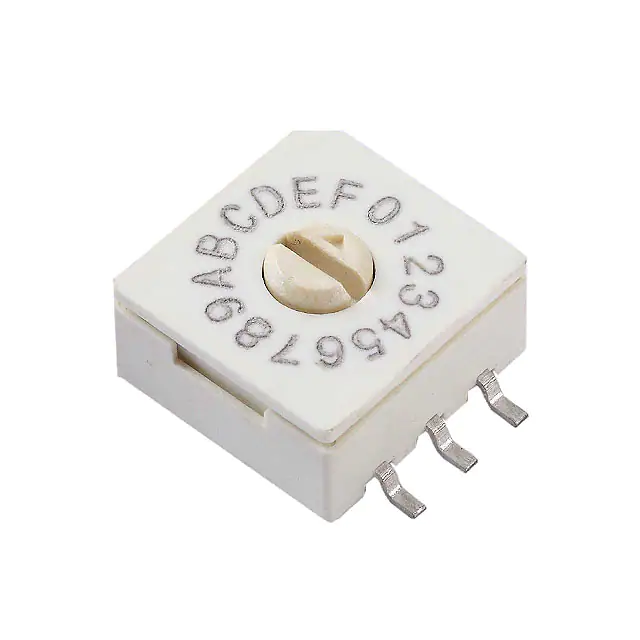

221AMA16RSWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
2,888 |
|
数据手册 |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.225" (5.72mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
221AMC16RSWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
1,400 |
|
数据手册 |
221 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.470" (11.94mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
218-12LPSTSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
2,761 |
|
数据手册 |
218 | Tube | Active | SPST | 12 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

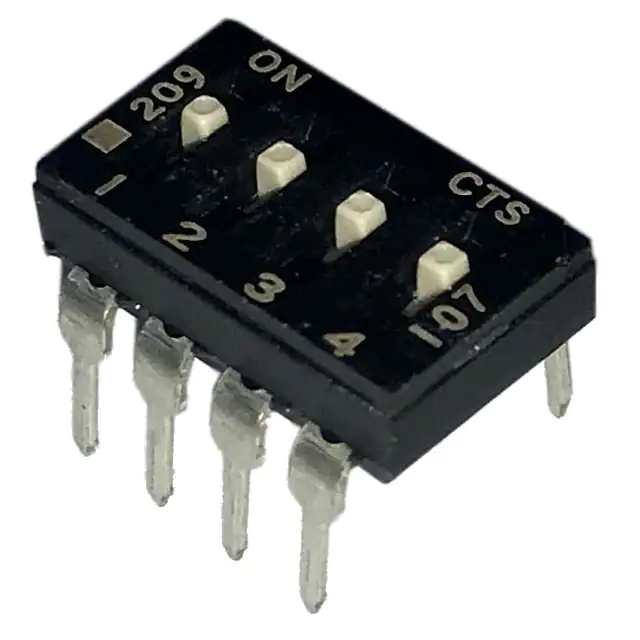

209-4MSSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
964 |
|
数据手册 |
209 | Tube | Active | SPST | 4 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
206-2SWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
605 |
|
数据手册 |
206 | Tube | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

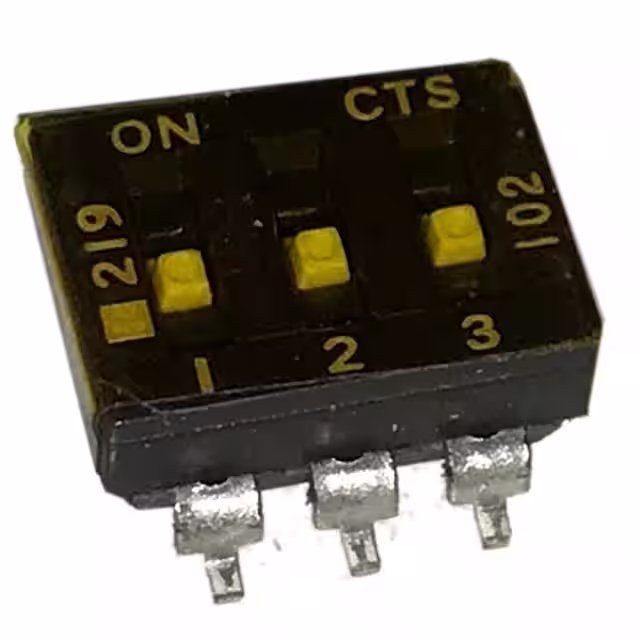

219-3LPSTRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,793 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

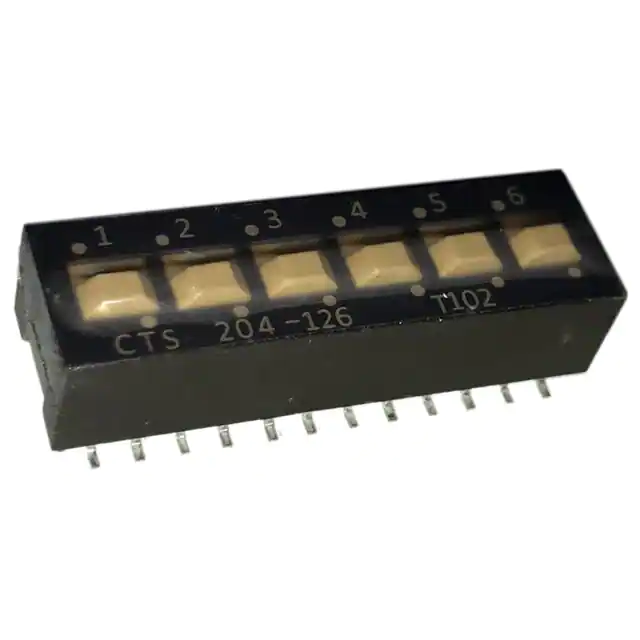

204-126STSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
4,904 |
|
数据手册 |
204 | Tube | Active | SPDT | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
