DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
204-6SRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,750 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

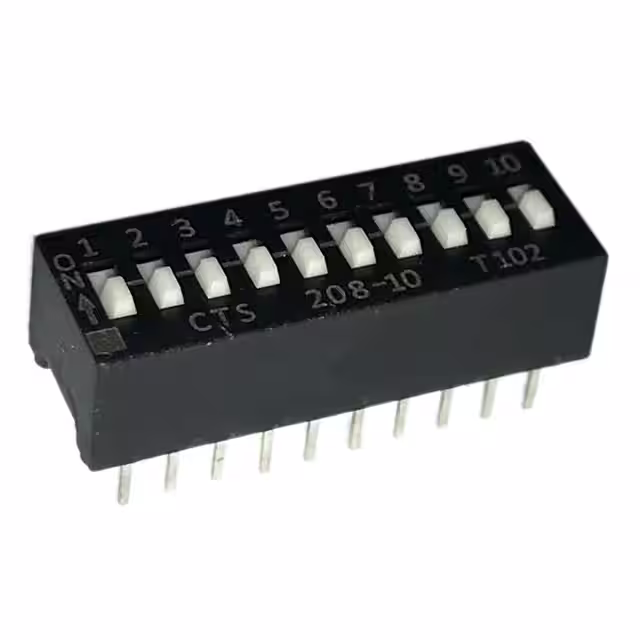

208-10SSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
281 |
|
数据手册 |
208 | Tube | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Tin | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

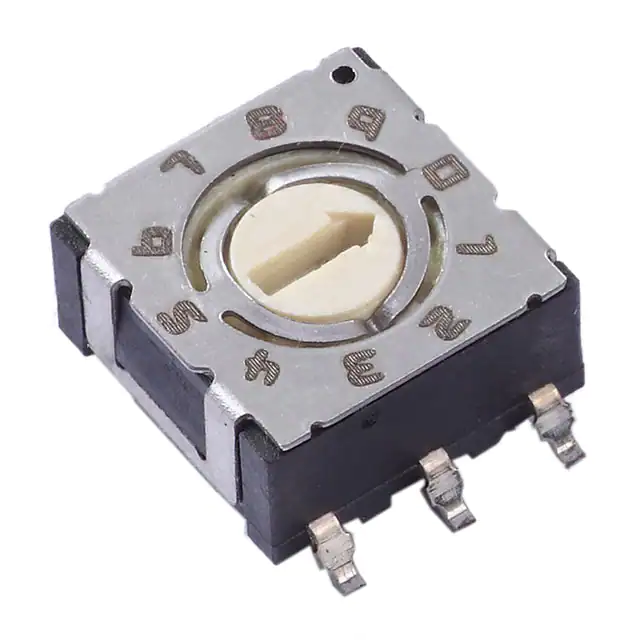

220AMA10RSWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
15,742 |
|
数据手册 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.150" (3.81mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

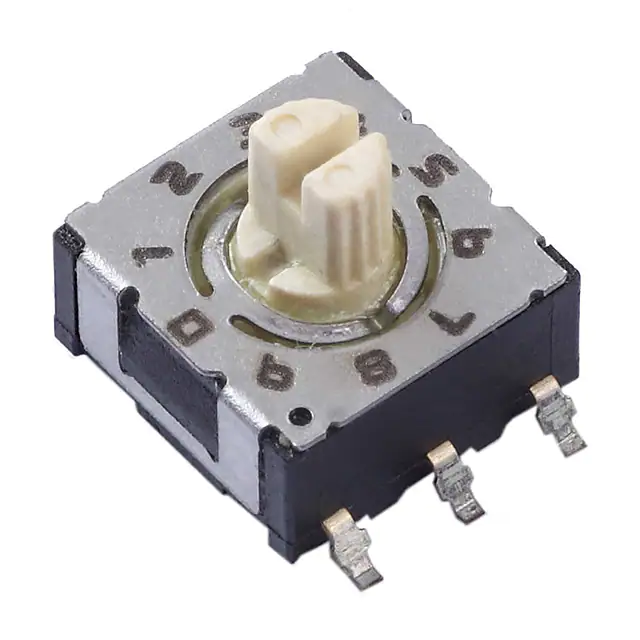

220AMB10RSWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
27,320 |
|
数据手册 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.268" (6.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

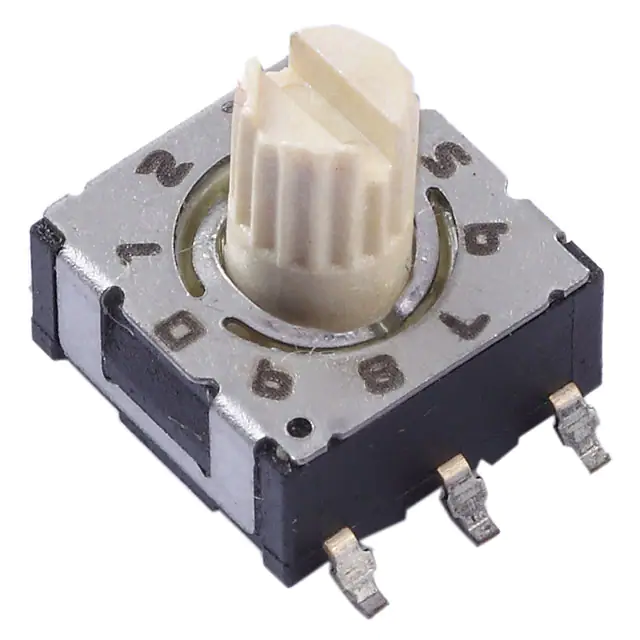

220AMC10RSWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
5,709 |
|
数据手册 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

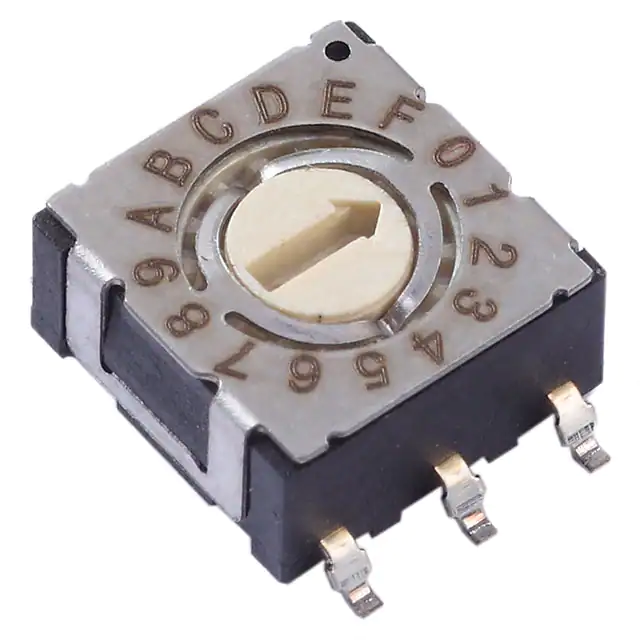

220AMA16RSWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
82,106 |
|
数据手册 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.150" (3.81mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

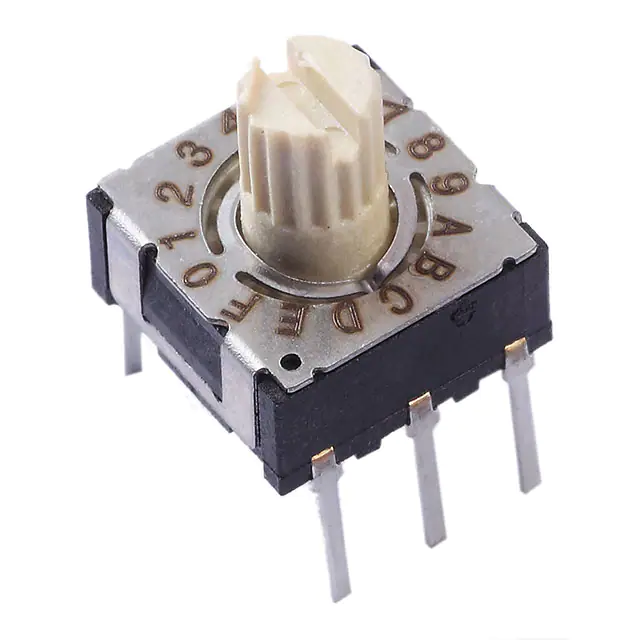

220ADC16SWITCH ROTARY DIP HEX 0.1A 50V CTS Electrocomponents |
189 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | Hexadecimal | 16 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

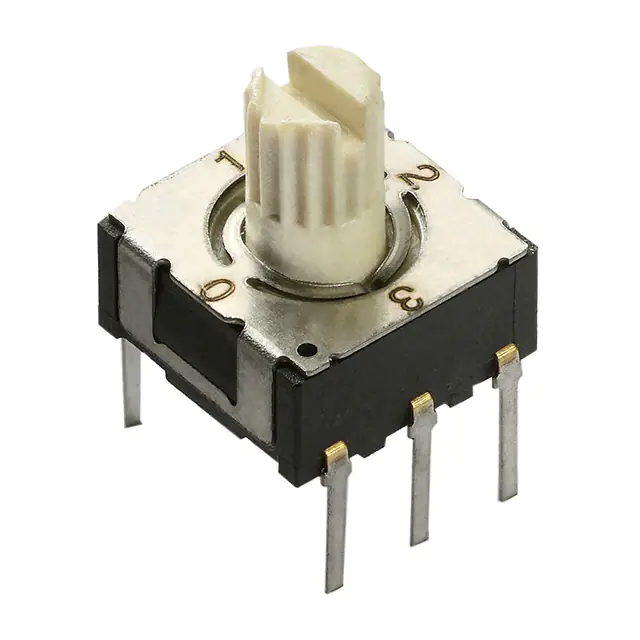

220ADC04SWITCH ROTARY DIP SP4T 0.1A 50V CTS Electrocomponents |
3,456 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

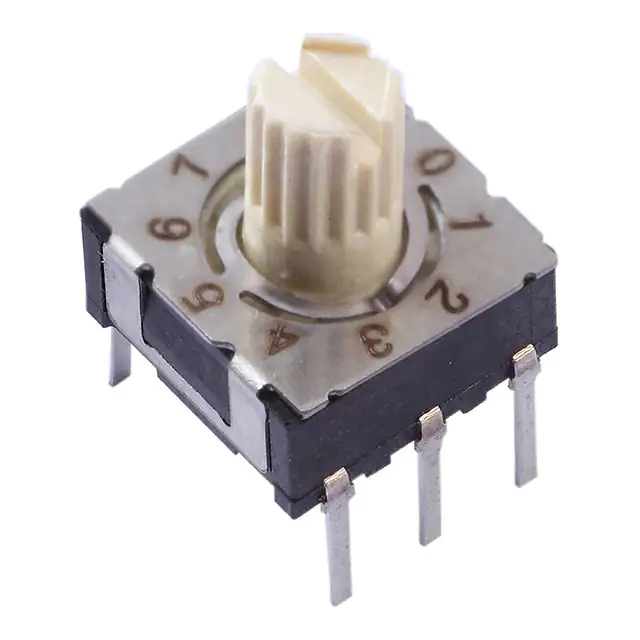

220ADC10SWITCH ROTARY DIP BCD 0.1A 50V CTS Electrocomponents |
1,092 |
|
数据手册 |
220 | Tube | Discontinued at Digi-Key | BCD | 10 | 100mA | 50VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.321" (8.15mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
220AMA04RSWITCH ROTARY DIP SP4T 0.1A 50V CTS Electrocomponents |
1,232 |
|
数据手册 |
220 | Tape & Reel (TR) | Discontinued at Digi-Key | SP4T | 4 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.150" (3.81mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
