DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-10MSTJRSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,469 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

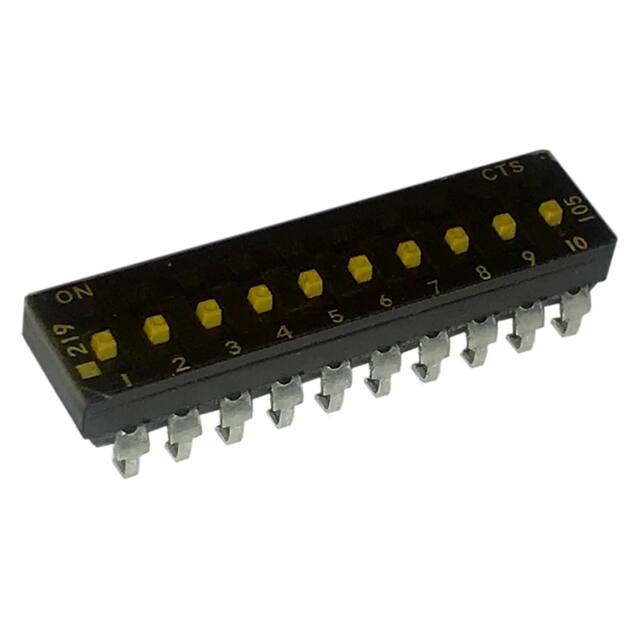

219-10MSTJRFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,670 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-215SWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
2,714 |
|
数据手册 |
206 | Tube | Active | DPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|

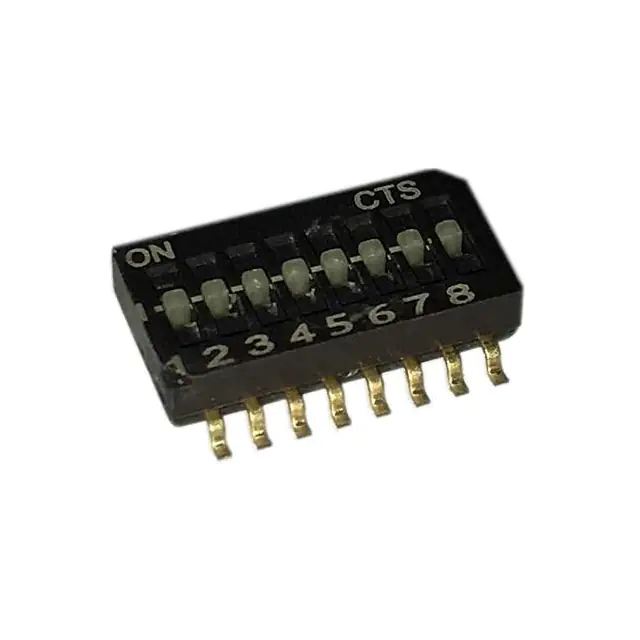

218-8LPSRSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
4,537 |
|
数据手册 |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

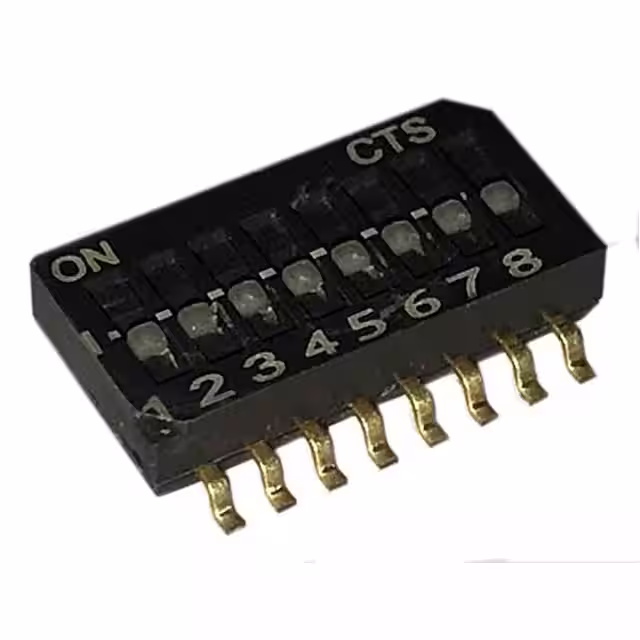

218-8LPSRFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
1,477 |
|
数据手册 |
218 | Tape & Reel (TR) | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

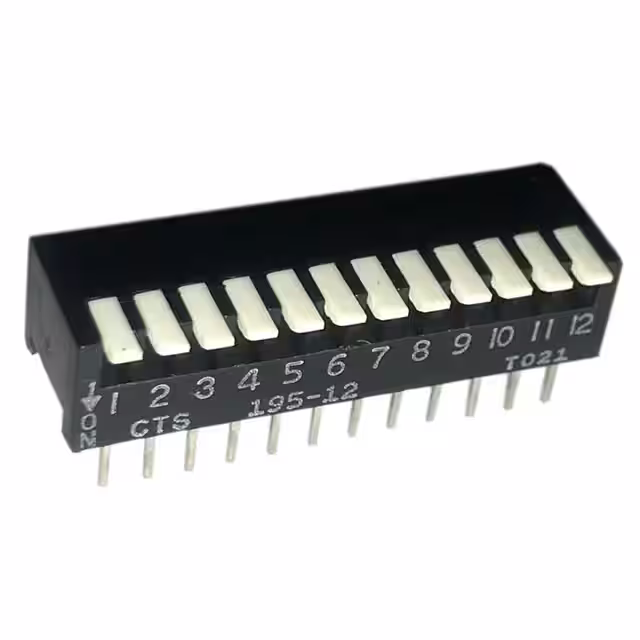

195-12MSSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
2,451 |
|
数据手册 |
195 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
195-12MSNSWITCH PIANO DIP SPST 0.05A 24V CTS Electrocomponents |
4,924 |
|
数据手册 |
195 | Tube | Active | SPST | 12 | 50mA | 24VDC | Piano | Raised | - | Tin | 0.311" (7.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
204-9STRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,301 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 9 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
204-10SRSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
3,062 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 10 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.01mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
206-214STSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
4,430 |
|
数据手册 |
206 | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
