DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
206-214SSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
1,215 |
|
数据手册 |
206 | Tube | Active | DPST | 4 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
206-123SSWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
2,578 |
|
数据手册 |
206 | Tube | Active | SPDT | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
204-121SWITCH SLIDE DIP SPDT 0.05A 24V CTS Electrocomponents |
1,371 |
|
数据手册 |
204 | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-8RASSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
2,119 |
|
数据手册 |
206RA | Tube | Active | SPST | 8 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-6LPSJSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
1,484 |
|
数据手册 |
218 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-6LPSJFSWITCH SLIDE DIP SPST 0.025A 24V CTS Electrocomponents |
4,065 |
|
数据手册 |
218 | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.106" (2.70mm) | Surface Mount | J Lead | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

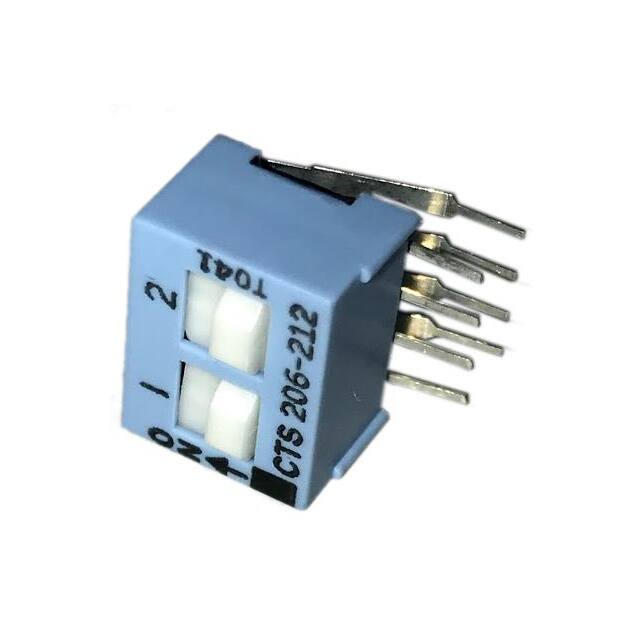

206-212RASSWITCH SLIDE DIP DPST 0.05A 24V CTS Electrocomponents |
2,872 |
|
数据手册 |
206RA | Tube | Active | DPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
219-12LPSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
1,166 |
|
数据手册 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.160" (4.06mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|

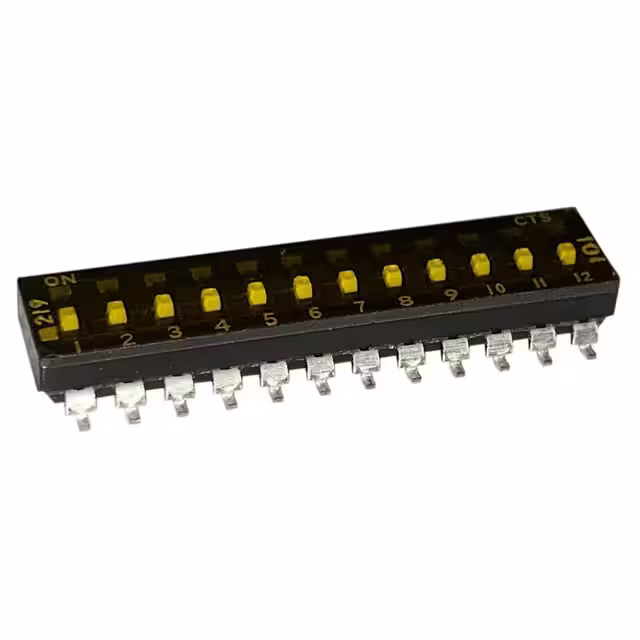

219-12MSTFSWITCH SLIDE DIP SPST 0.1A 20V CTS Electrocomponents |
4,213 |
|
数据手册 |
219 | Tube | Active | SPST | 12 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-4RALPSTSWITCH SLIDE DIP SPST 0.05A 24V CTS Electrocomponents |
1,067 |
|
数据手册 |
206RA | Tube | Active | SPST | 4 | 50mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
