DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT65321SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
1,716 |
|
数据手册 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

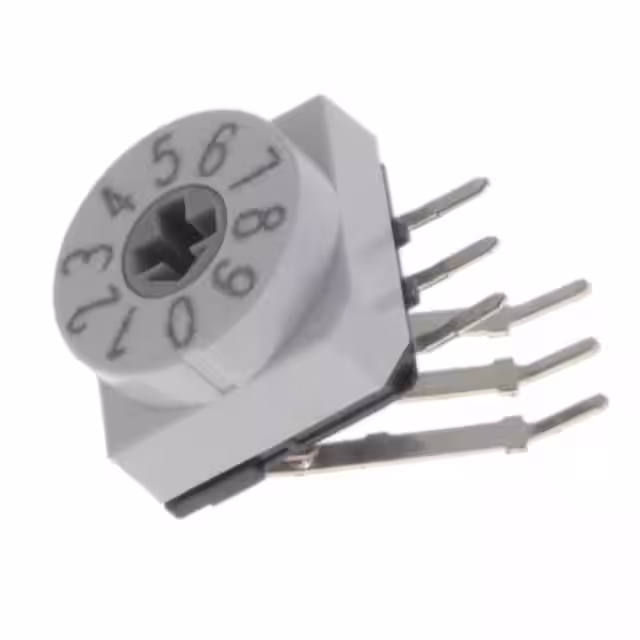

PT65701L508SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
4,718 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
PT65302L254SW ROTARY DIP BCD COMP 0.15A 24V APEM Inc. |
4,591 |
|
数据手册 |
PT65 | Bulk | Active | BCD Complement | 10 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
P60A503SWITCH ROTARY DIP HEX 0.15A 24V APEM Inc. |
4,715 |
|
数据手册 |
P60A | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Stainless Steel | Gold | 0.409" (10.39mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
PT65525SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
2,912 |
|
数据手册 |
PT65 | Bulk | Active | BCD | 6 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
|
PT65303L508SWITCH ROTARY DIP HEX 0.15A 24V APEM Inc. |
3,639 |
|
数据手册 |
PT65 | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

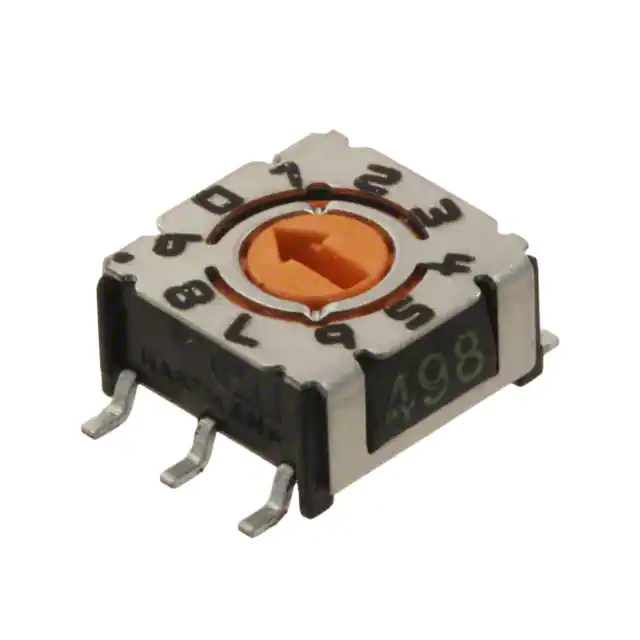

P36S102SW ROTARY DIP BCD COMP 0.1A 24V APEM Inc. |
1,122 |
|
数据手册 |
P36S | Tube | Active | BCD Complement | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|
|
NDI02HSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,346 |
|
数据手册 |
NDI | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
NDI03HSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
4,169 |
|
数据手册 |
NDI | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
|
DMR03TTRDIP SWITCH DM LOW PROFILE APEM Inc. |
4,727 |
|
数据手册 |
DM | Bulk | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
