DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

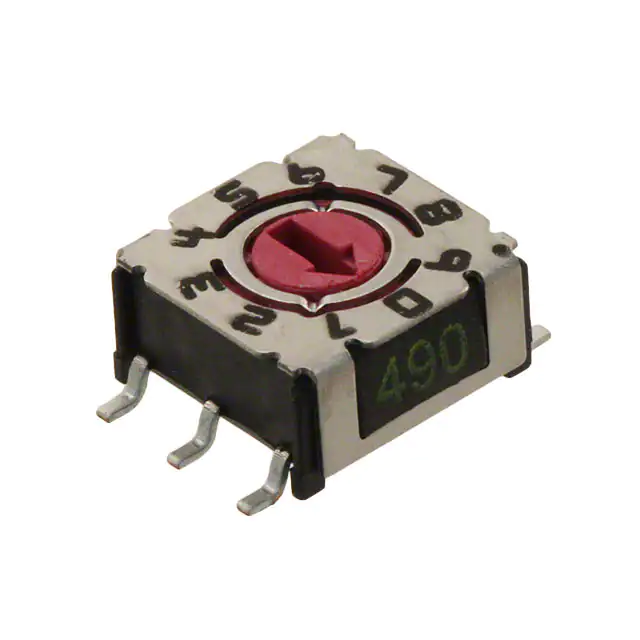

P36S101SWITCH ROTARY DIP BCD 0.1A 24V APEM Inc. |
22,766 |
|
数据手册 |
P36S | Tube | Active | BCD | 10 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|

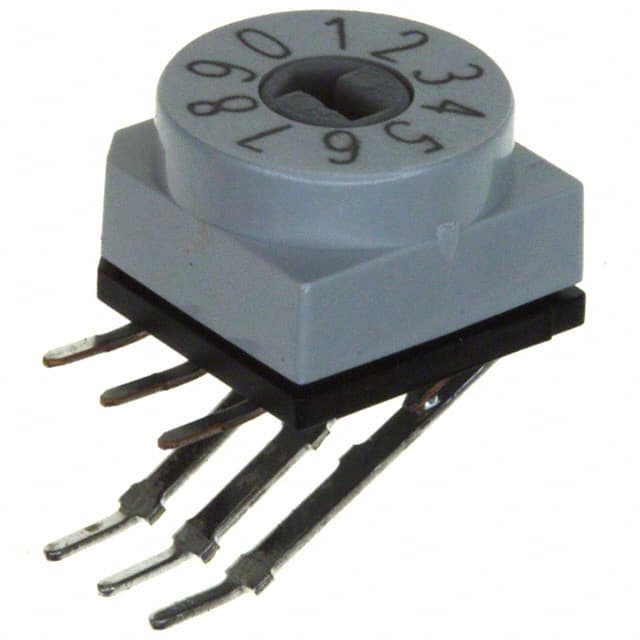

PT65101L508SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
2,629 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
P36103SWITCH ROTARY DIP HEX 0.1A 24V APEM Inc. |
1,757 |
|
数据手册 |
P36 | Tube | Active | Hexadecimal | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.143" (3.63mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -50°C ~ 125°C |
|

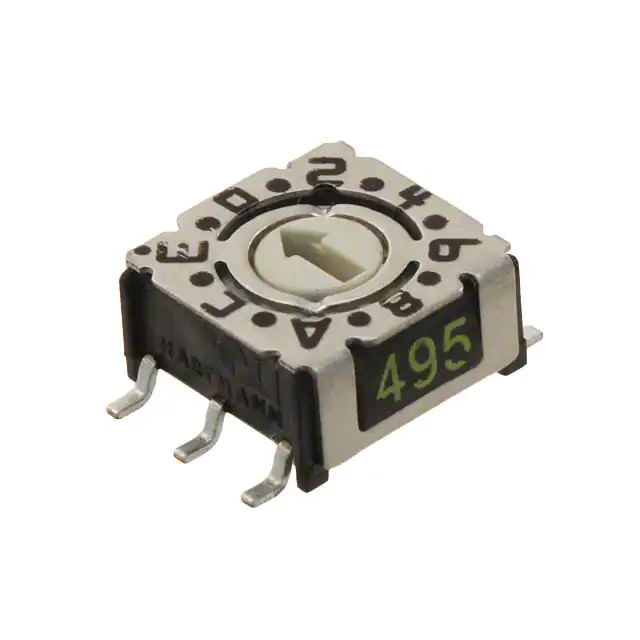

P36S106SW ROTARY DIP HEX COMP 0.1A 24V APEM Inc. |
1,971 |
|
数据手册 |
P36S | Tube | Active | Hexadecimal Complement | 16 | 100mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.152" (3.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -30°C ~ 90°C |
|

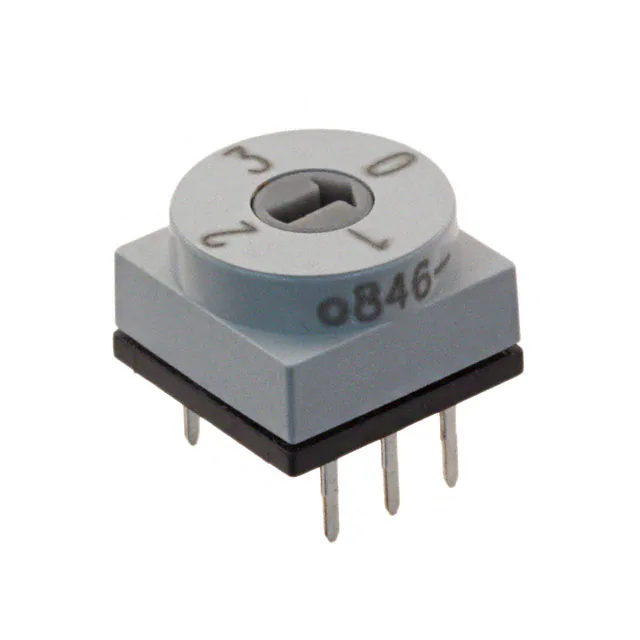

PT65121SWITCH ROTARY DIP SP4T 0.15A 24V APEM Inc. |
2,517 |
|
数据手册 |
PT65 | Tube | Active | SP4T | 4 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | Phosphor Bronze | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

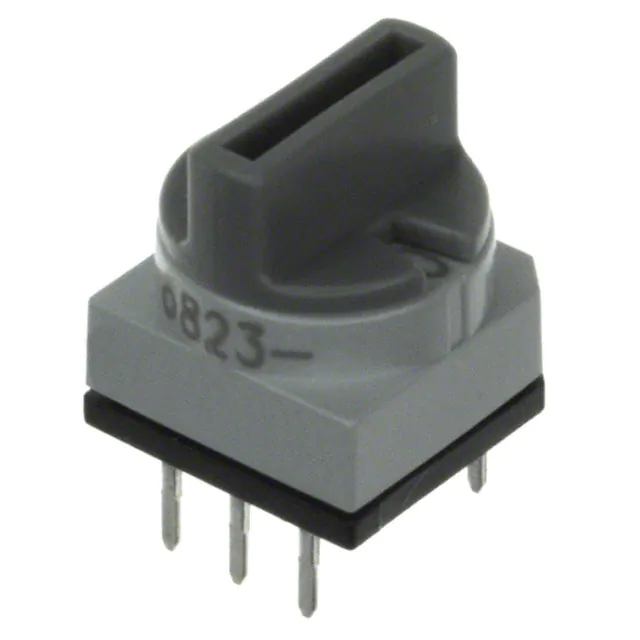

PT65501SWITCH ROTARY DIP BCD 0.15A 24V APEM Inc. |
264 |
|
数据手册 |
PT65 | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

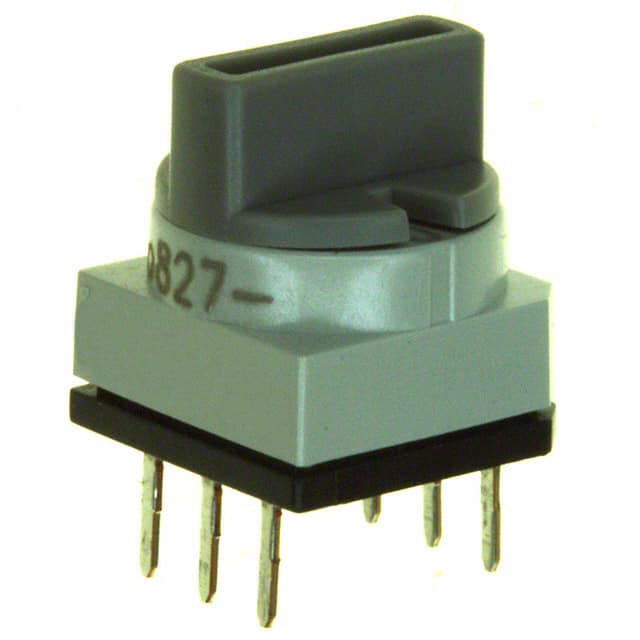

PT65503SWITCH ROTARY DIP HEX 0.15A 24V APEM Inc. |
5,383 |
|
数据手册 |
PT65 | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
DM02SWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
3,444 |
|
数据手册 |
DM | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.173" (4.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

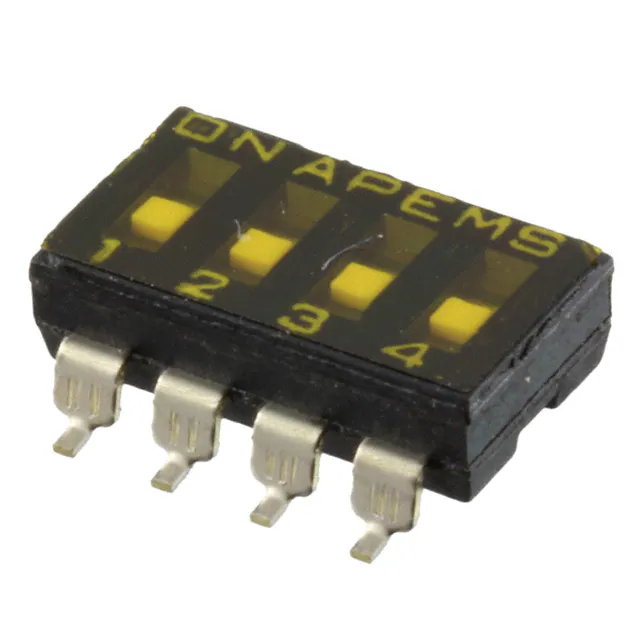

DMR04TTRSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
12,049 |
|
数据手册 |
DM | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.146" (3.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -20°C ~ 85°C |
|

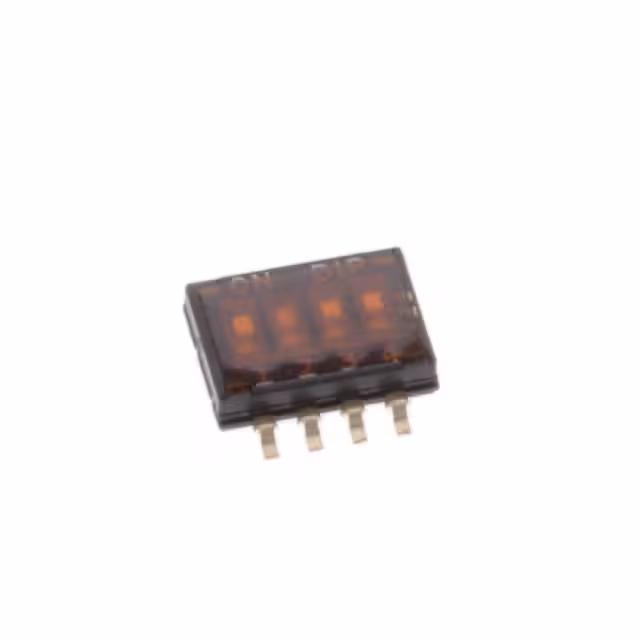

DHN04TVSWITCH SLIDE DIP SPST 0.025A 24V APEM Inc. |
1,908 |
|
数据手册 |
DHN | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Phosphor Bronze | Gold | 0.063" (1.60mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -40°C ~ 85°C |
