DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825286-8SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,933 |
|
数据手册 |
GDR | Tube | Active | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.309" (7.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

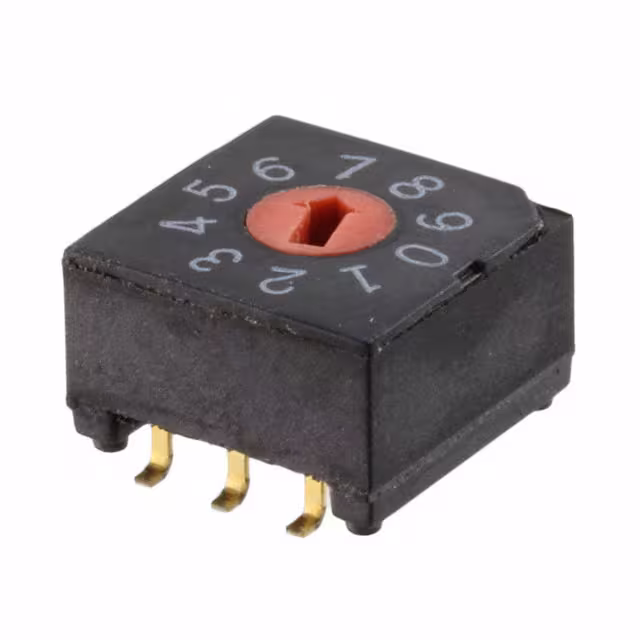

1825007-3SW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,420 |
|
数据手册 |
DRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Copper Alloy | Gold | 0.291" (7.39mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1-1825013-7SWITCH ROTARY DIP HEX 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
2,384 |
|
数据手册 |
MRD | Tube | Obsolete | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.295" (7.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
5-5435640-3SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
4,662 |
|
数据手册 |
7100 | Tube | Obsolete | SPST | 8 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

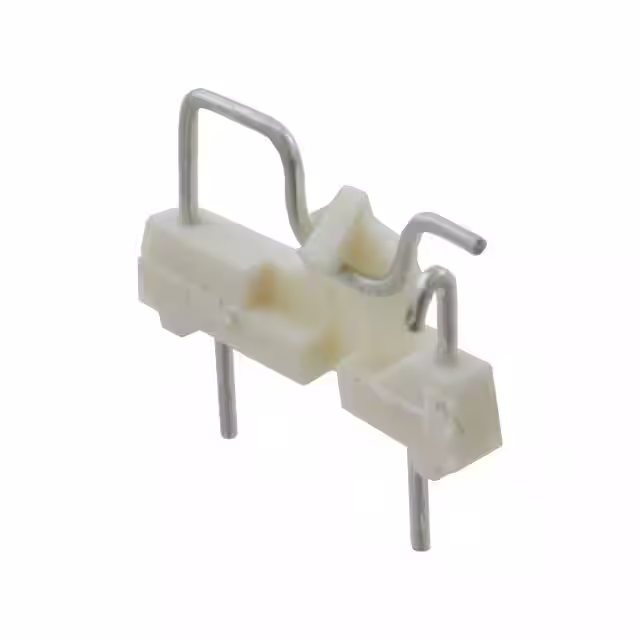

1393546-1SWITCH DIP SPST TH TE Connectivity ALCOSWITCH Switches |
3,582 |
|
数据手册 |
DIP-FIX | Bulk | Obsolete | SPST | 1 | - | - | - | Raised | - | - | 0.319" (8.10mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | - |
|
|
1-1825286-0SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,921 |
|
数据手册 |
GDR | Tube | Active | SPST | 10 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.309" (7.85mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

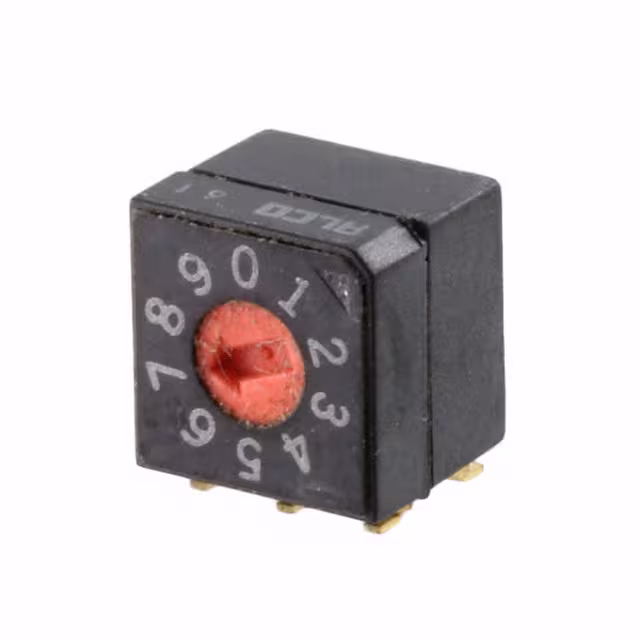

1825013-4SW ROTARY DIP BCD COMP 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
3,861 |
|
数据手册 |
MRD | Tube | Obsolete | BCD Complement | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.295" (7.50mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
|
|
1977103-3SWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,542 |
|
数据手册 |
GDHL | Bulk | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.059" (1.50mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Tape Seal | -30°C ~ 85°C |
|

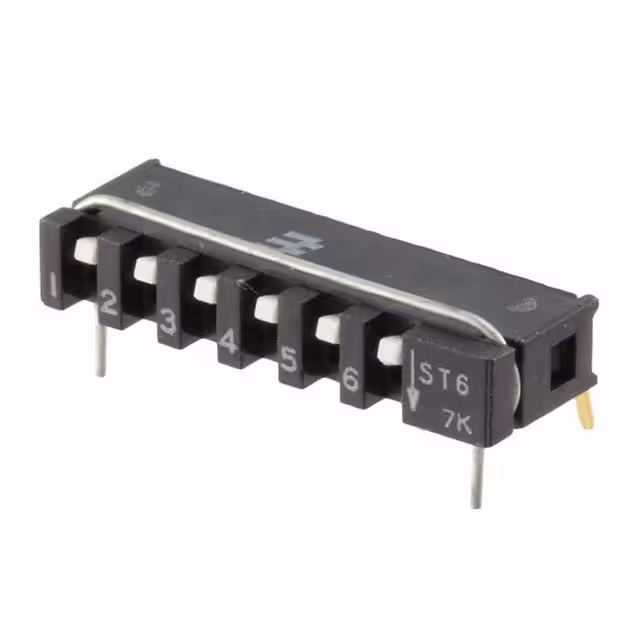

1977105-3SWITCH SLIDE DIP SPST 0.01A 5V TE Connectivity ALCOSWITCH Switches |
4,128 |
|
数据手册 |
STR | Tube | Active | SPST | 6 | 10mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.244" (6.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
2-435470-4SW TOGGLE DIP SPDT 0.025A 24V TE Connectivity ALCOSWITCH Switches |
4,015 |
|
数据手册 |
7000 | Tube | Obsolete | SPDT | 4 | 25mA | 24VDC | Toggle | Raised | Copper Alloy | Gold | 0.460" (11.68mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
