DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1-435704-2SWITCH SHUNT DIP PROGRAMMABLE TE Connectivity ALCOSWITCH Switches |
2,783 |
|
数据手册 |
7600 | Tube | Obsolete | Programmable | 12 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
3-5435640-2SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
1,969 |
|
数据手册 |
7100 | Tube | Obsolete | SPST | 12 | - | - | Rocker | Raised | - | - | - | Through Hole | - | - | No | - | - |
|

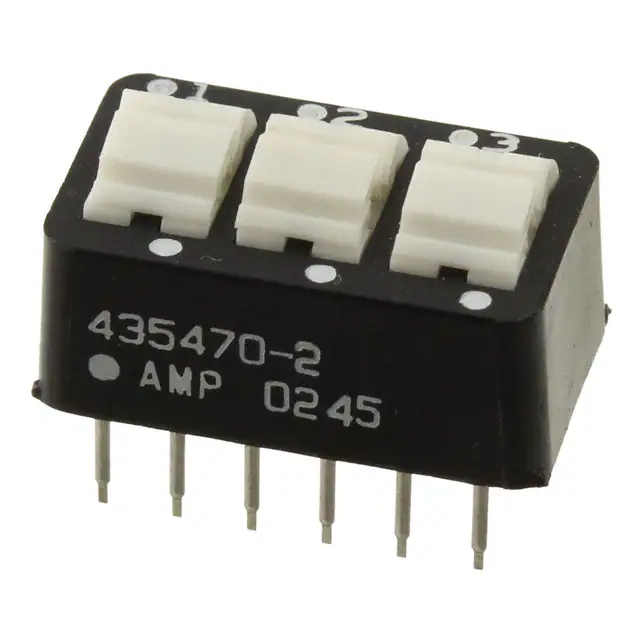

5-435470-2SWITCH STANDARD DIP SPDT TE Connectivity ALCOSWITCH Switches |
2,709 |
|
数据手册 |
7000 | Bulk | Obsolete | SPDT | 6 | - | - | Standard | Raised | - | - | - | Through Hole | - | - | No | - | - |
|
9-435626-0SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
2,250 |
|
数据手册 |
7000 | Tape & Reel (TR) | Obsolete | SPST | 6 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|

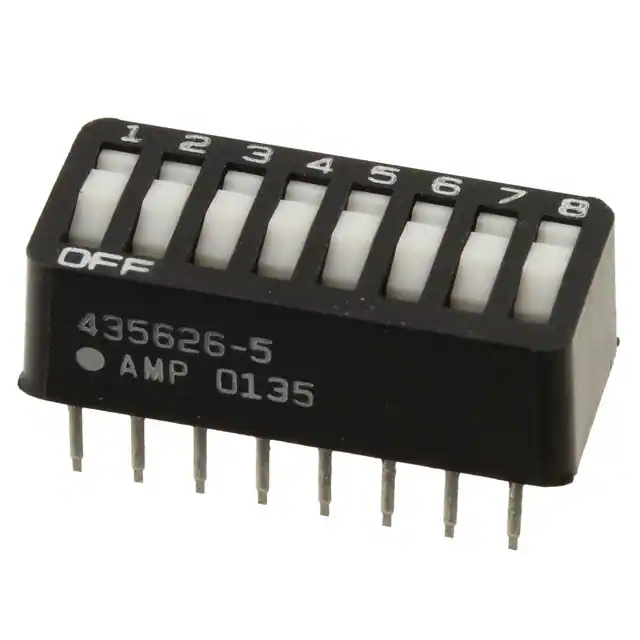

5-435626-5SWITCH ROCKER DIP SPST TE Connectivity ALCOSWITCH Switches |
2,121 |
|
数据手册 |
7000 | Tape & Reel (TR) | Obsolete | SPST | 8 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
1-5435802-8SWITCH PIANO DIP SPST RA TE Connectivity ALCOSWITCH Switches |
2,855 |
|
数据手册 |
7000 | Tape & Reel (TR) | Obsolete | SPST | 7 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

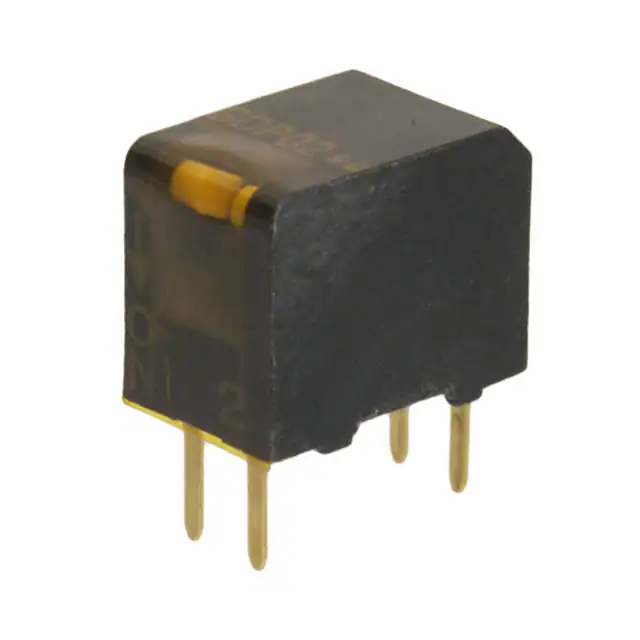

1571998-1SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,913 |
|
数据手册 |
GDP | Tube | Obsolete | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1571998-5SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,001 |
|
数据手册 |
GDP | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|

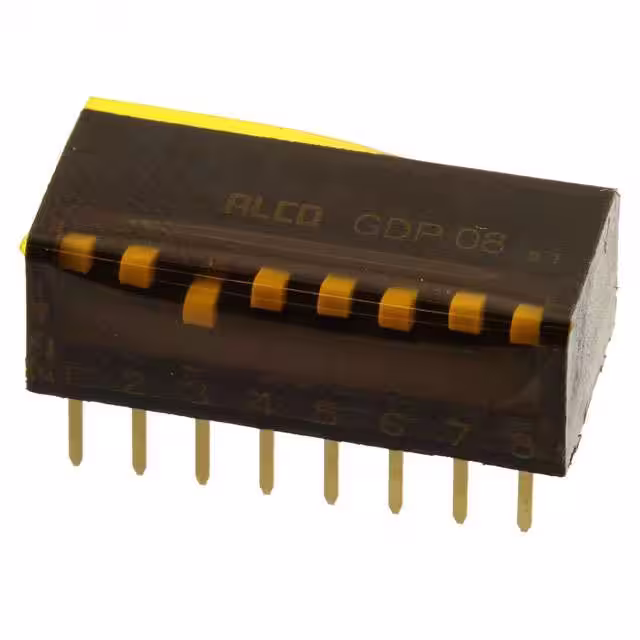

1-1571998-3SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,268 |
|
数据手册 |
GDP | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.303" (7.70mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
1825013-1SWITCH ROTARY DIP BCD 0.4VA 20V TE Connectivity ALCOSWITCH Switches |
4,334 |
|
数据手册 |
MRD | Tube | Obsolete | BCD | 10 | 0.4VA | 20VAC/DC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.130" (3.30mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Process Sealed | -30°C ~ 85°C |
