DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

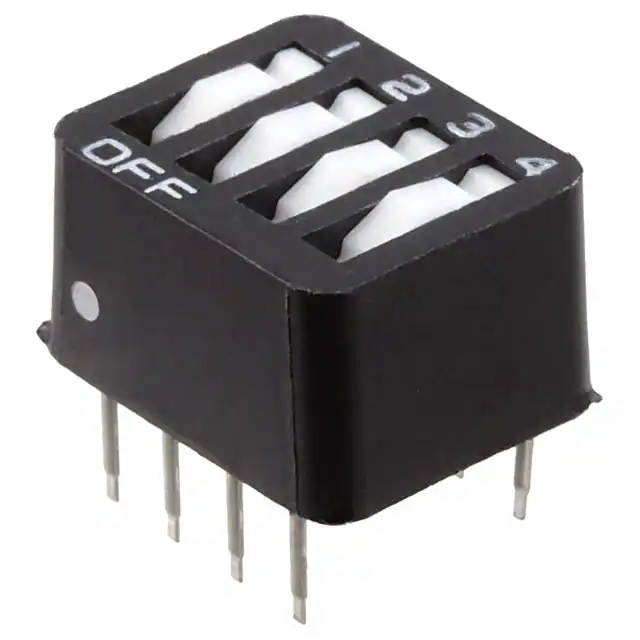

435626-1SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,969 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
435626-5SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
3,645 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

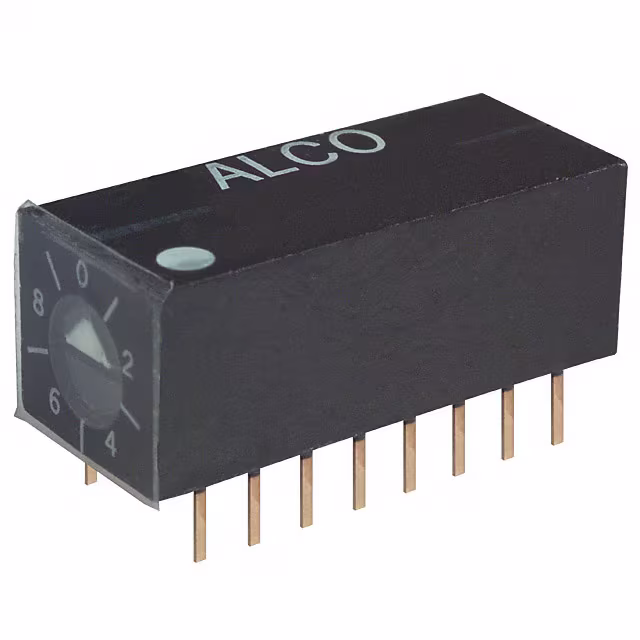

54778-1SW ROTARY DIP BCD W/COMP 28V TE Connectivity ALCOSWITCH Switches |
4,317 |
|
数据手册 |
- | Tube | Obsolete | BCD with Complement | 10 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | - |
|

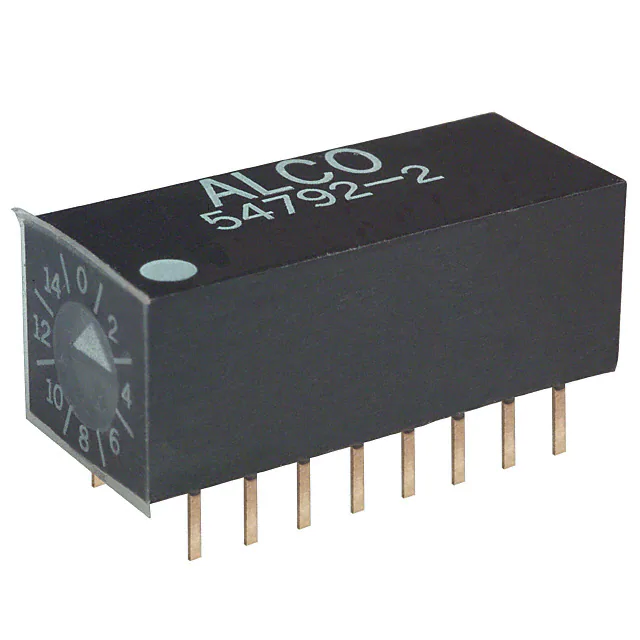

54792-2SW ROTARY DIP HEX W/COMP 28V TE Connectivity ALCOSWITCH Switches |
1,653 |
|
数据手册 |
- | Tube | Obsolete | Hexadecimal with Complement | 16 | 100mA | 28VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.385" (9.78mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | - |
|
4-435626-2SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
2,312 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -55°C ~ 105°C |
|

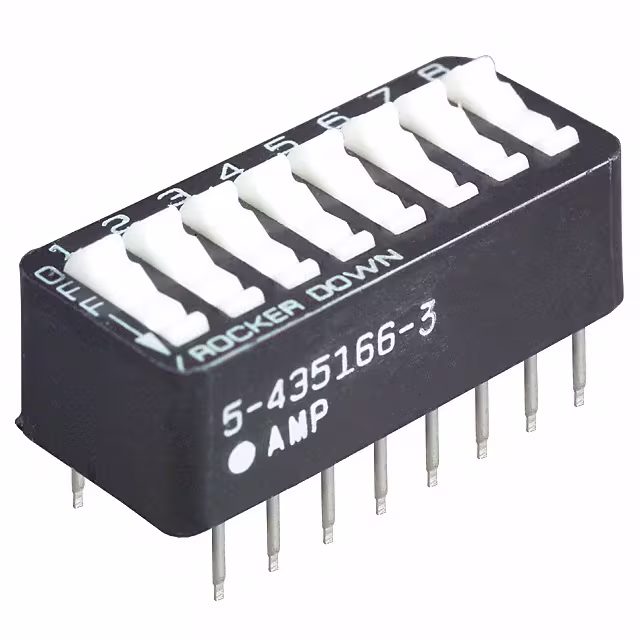

5-435166-3SW ROCKER DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,603 |
|
数据手册 |
7000 | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
435704-4SWITCH SHUNT DIP PROGRAMMABLE TE Connectivity ALCOSWITCH Switches |
1,624 |
|
数据手册 |
7600 | Tube | Obsolete | Programmable | 4 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|

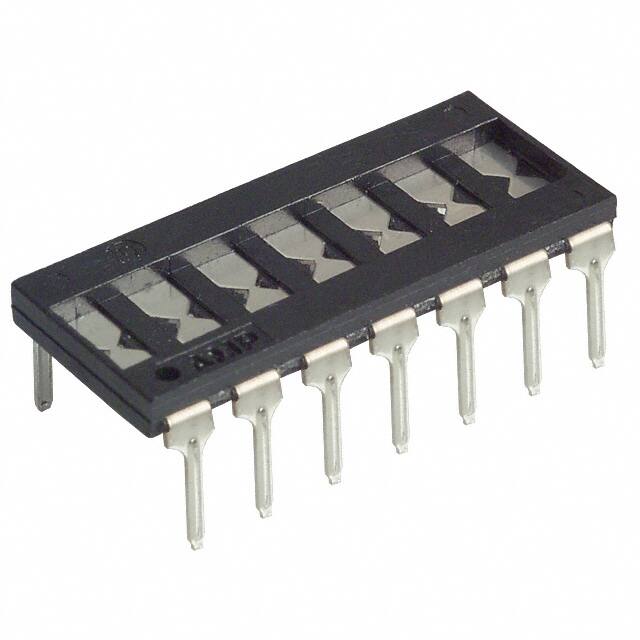

435704-7SWITCH SHUNT DIP PROGRAMMABLE TE Connectivity ALCOSWITCH Switches |
1,073 |
|
数据手册 |
7600 | Tube | Obsolete | Programmable | 7 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
435704-8SWITCH SHUNT DIP PROGRAMMABLE TE Connectivity ALCOSWITCH Switches |
3,494 |
|
数据手册 |
7600 | Tube | Obsolete | Programmable | 8 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
|
1-435704-0SWITCH SHUNT DIP PROGRAMMABLE TE Connectivity ALCOSWITCH Switches |
1,253 |
|
数据手册 |
7600 | Tube | Obsolete | Programmable | 10 | - | - | Breakable (Shunt) | Flush, Recessed | Copper Alloy | Tin | 0.079" (2.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -55°C ~ 105°C |
