DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDSP02SGLFNTU04SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
758 |
|
数据手册 |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS04SNRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
984 |
|
数据手册 |
EDS | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDSP02SGRNSTU04SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
766 |
|
数据手册 |
EDSP | Tube | Active | SPST | 2 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDS04SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
472 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS10SNRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
470 |
|
数据手册 |
EDS | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS06SNNNTR04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,578 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDSP10SGRNSTU04SWITCH PIANO DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
1,008 |
|
数据手册 |
EDSP | Tube | Active | SPST | 10 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
EDS06SNRNTR04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
888 |
|
数据手册 |
EDS | Tape & Reel (TR) | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.136" (3.45mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|
EDS08SNNNTU04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
950 |
|
数据手册 |
EDS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.152" (3.85mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
|

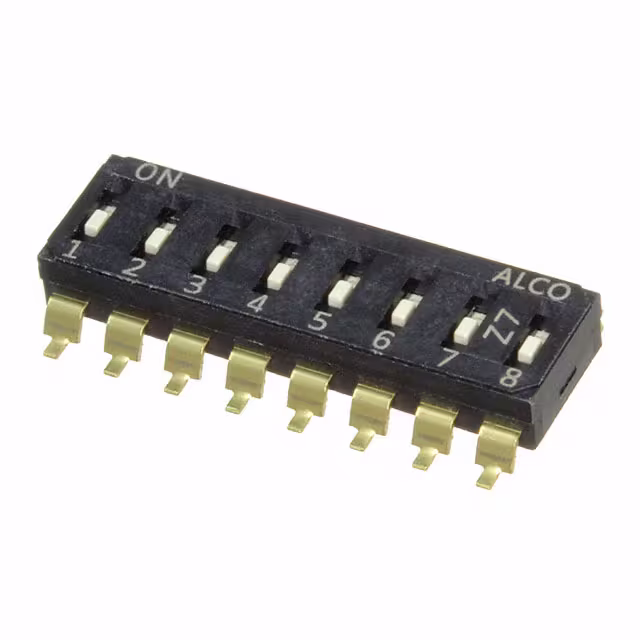

EDS08SGRNTU04QSWITCH SLIDE DIP SPST 0.025A 24V TE Connectivity ALCOSWITCH Switches |
897 |
|
数据手册 |
EDS | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 85°C |
