DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
219-8LPSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,184 |
|
数据手册 |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.200" (5.08mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-8MSTJSWITCH SLIDE DIP SPST 0.1A 20V |
2,027 |
|
数据手册 |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
219-8MSTJFSWITCH SLIDE DIP SPST 0.1A 20V |
4,587 |
|
数据手册 |
219 | Tube | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.210" (5.33mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
206-211RASWITCH SLIDE DIP DPST 0.05A 24V |
3,851 |
|
数据手册 |
206RA | Tube | Active | DPST | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
206-5RASWITCH SLIDE DIP SPST 0.05A 24V |
4,498 |
|
数据手册 |
206RA | Tube | Active | SPST | 5 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
218-4LPSTFSWITCH SLIDE DIP SPST 0.025A 24V |
1,935 |
|
数据手册 |
218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
DS01-254-L-09BESWITCH SLIDE DIP SPST 0.025A 24V |
3,184 |
|
数据手册 |
DS01-254 | Tube | Active | SPST | 9 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS01-254-S-10BESWITCH SLIDE DIP SPST 0.025A 24V |
1,113 |
|
数据手册 |
DS01-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
DS01-254-L-10BESWITCH SLIDE DIP SPST 0.025A 24V |
3,016 |
|
数据手册 |
DS01-254 | Tube | Active | SPST | 10 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.264" (6.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

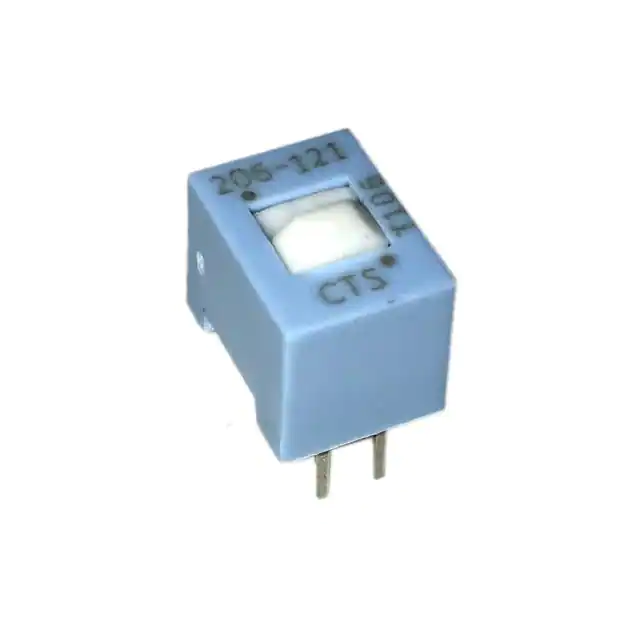

206-121STSWITCH SLIDE DIP SPDT 0.05A 24V |
2,739 |
|
数据手册 |
206 | Tube | Active | SPDT | 1 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
CFS-0303TBSWITCH SLIDE DIP SPST 0.1A 6V |
3,650 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.185" (4.70mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
CFS-0302TASWITCH SLIDE DIP SPST 0.1A 6V |
1,033 |
|
数据手册 |
CFS | Tape & Reel (TR) | Active | SPST | 3 | 100mA | 6VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.177" (4.50mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KJ03RXRSWITCH SLIDE DIP SPST 0.025A 24V |
1,215 |
|
数据手册 |
KJ | Tape & Reel (TR) | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ03RTTSWITCH SLIDE DIP SPST 0.025A 24V |
1,976 |
|
数据手册 |
KJ | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.140" (3.55mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
KJ04RXTSWITCH SLIDE DIP SPST 0.025A 24V |
1,234 |
|
数据手册 |
KJ | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

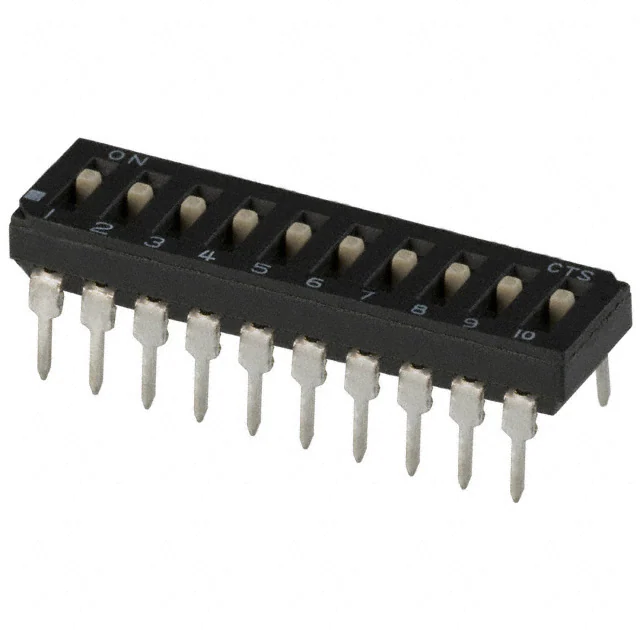

209-10MSSWITCH SLIDE DIP SPST 0.1A 20V |
3,244 |
|
数据手册 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.190" (4.83mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESSWITCH SLIDE DIP SPST 0.1A 20V |
3,519 |
|
数据手册 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESDSWITCH SLIDE DIP SPST 0.1A 20V |
2,863 |
|
数据手册 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESFSWITCH SLIDE DIP SPST 0.1A 20V |
2,757 |
|
数据手册 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
209-10ESFDSWITCH SLIDE DIP SPST 0.1A 20V |
4,197 |
|
数据手册 |
209 | Tube | Active | SPST | 10 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.204" (5.18mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -40°C ~ 85°C |
