DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

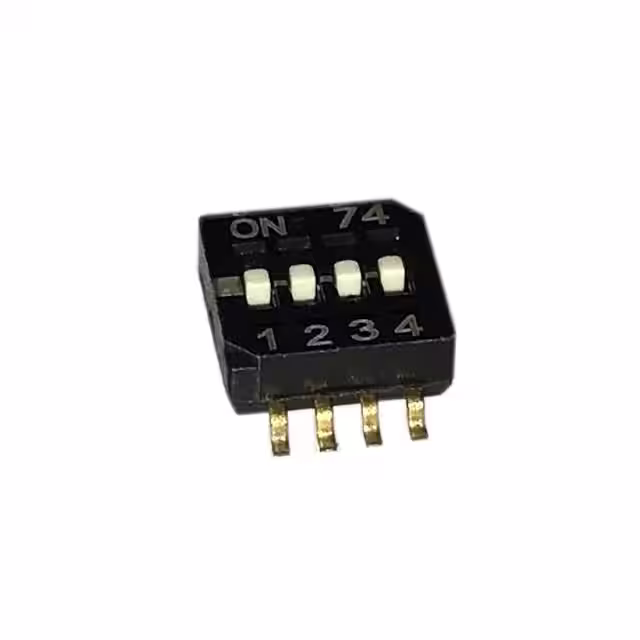

218-4LPSSWITCH SLIDE DIP SPST 0.025A 24V |
4,359 |
|
数据手册 |
218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|

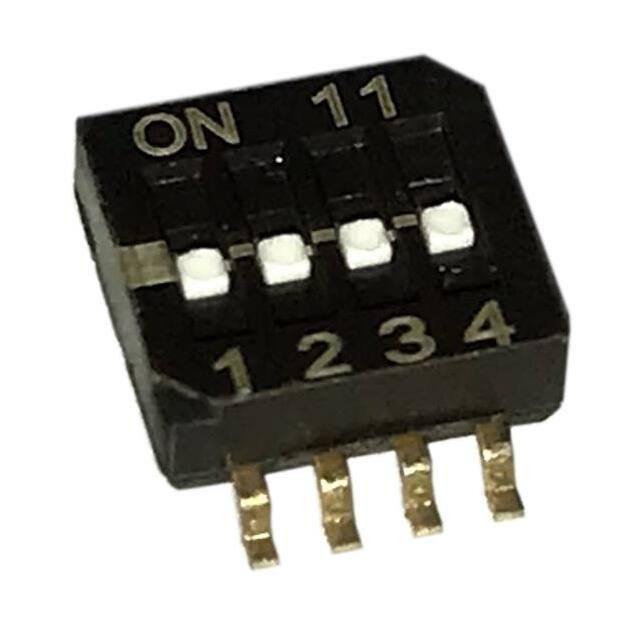

218-4LPSFSWITCH SLIDE DIP SPST 0.025A 24V |
4,752 |
|
数据手册 |
218 | Tube | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
218-4LPSTRFSWITCH SLIDE DIP SPST 0.025A 24V |
1,684 |
|
数据手册 |
218 | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.104" (2.65mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
ADF04TSWITCH SLIDE DIP SPST 0.025A 24V |
1,165 |
|
数据手册 |
ADF | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -30°C ~ 85°C |
|
|
206-7ESWITCH SLIDE DIP SPST 0.05A 24V |
3,774 |
|
数据手册 |
206 | Tube | Active | SPST | 7 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 85°C |
|
|
CAS-120TB2SWITCH SLIDE SPST 0.1A 6V |
2,376 |
|
数据手册 |
CAS | Tape & Reel (TR) | Active | SPST | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | Gull Wing | - | - | - | -40°C ~ 85°C |
|
|
CAS-120TA2SWITCH SLIDE SPST 0.1A 6V |
3,558 |
|
数据手册 |
CAS | Tape & Reel (TR) | Active | SPST | - | 100mA | - | Flush | - | Copper Alloy | Gold | - | Surface Mount | J Lead | - | - | - | -40°C ~ 85°C |
|
RTE0200G01SWITCH ROTARY DIP SPDT 0.1A 50V |
1,664 |
|
数据手册 |
RTE | Tape & Reel (TR) | Obsolete | SPDT | 2 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
RTE0300G01SWITCH ROTARY DIP SP3T 0.1A 50V |
4,645 |
|
数据手册 |
RTE | Tape & Reel (TR) | Obsolete | SP3T | 3 | 100mA | 50VDC | Rotary for Tool | Flush, Recessed | Bronze | Silver | 0.168" (4.27mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|

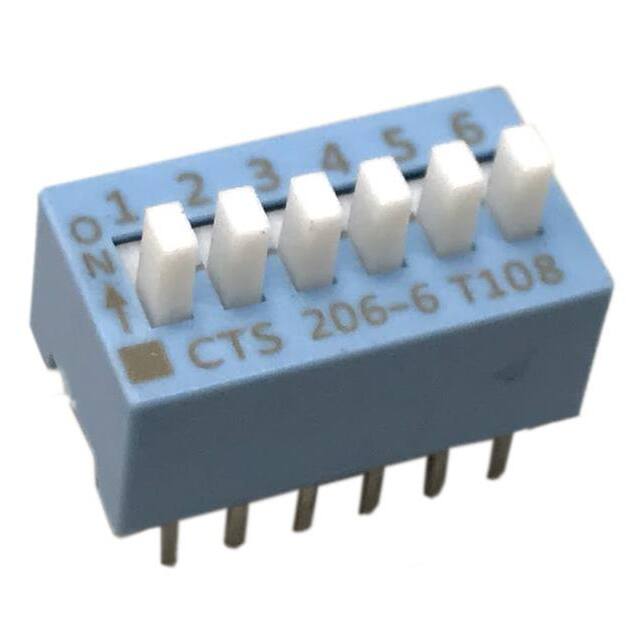

206-6ESSWITCH SLIDE DIP SPST 0.05A 24V |
1,232 |
|
数据手册 |
206 | Tube | Active | SPST | 6 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.434" (11.02mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
206-212SSWITCH SLIDE DIP DPST 0.05A 24V |
3,226 |
|
数据手册 |
206 | Tube | Active | DPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.334" (8.48mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
|
204-2STRSWITCH SLIDE DIP SPST 0.05A 24V |
3,436 |
|
数据手册 |
204 | Tape & Reel (TR) | Active | SPST | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.394" (10.00mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-3RASSWITCH SLIDE DIP SPST 0.05A 24V |
2,503 |
|
数据手册 |
206RA | Tube | Active | SPST | 3 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.400" (10.16mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
KJ02EXRSWITCH SLIDE DIP SPST 0.025A 24V |
1,205 |
|
数据手册 |
KJ | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.161" (4.10mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KJ02RXRSWITCH SLIDE DIP SPST 0.025A 24V |
1,516 |
|
数据手册 |
KJ | Tape & Reel (TR) | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Beryllium Copper | Gold | 0.138" (3.50mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
KP05ETSWITCH PIANO DIP SPST 0.025A 24V |
2,968 |
|
数据手册 |
KP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
|
KP05RTSWITCH PIANO DIP SPST 0.025A 24V |
1,290 |
|
数据手册 |
KP | Tube | Active | SPST | 5 | 25mA | 24VDC | Piano | Flush, Recessed | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
219-8MSTRFSWITCH SLIDE DIP SPST 0.1A 20V |
4,547 |
|
数据手册 |
219 | Tape & Reel (TR) | Active | SPST | 8 | 100mA | 20VDC | Slide (Standard) | Raised | Beryllium Copper | Gold | 0.170" (4.33mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals, Tape Seal | -55°C ~ 85°C |
|
|
206-122SWITCH SLIDE DIP SPDT 0.05A 24V |
1,866 |
|
数据手册 |
206 | Tube | Active | SPDT | 2 | 50mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.299" (7.60mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | Epoxy Sealed Terminals | -55°C ~ 85°C |
|
DS02-254-2L-06BESWITCH PIANO DIP SPST 0.025A 24V |
2,689 |
|
数据手册 |
DS02-254 | Tube | Obsolete | SPST | 6 | 25mA | 24VDC | Piano | Flush, Recessed | Copper Alloy | Gold | 0.378" (9.60mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
