DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7813J-1-051ESWITCH ROTARY DIP SPDT 0.1A 16V |
1,885 |
|
数据手册 |
7813 | Tape & Reel (TR) | Active | SPDT | 2 | 100mA | 16VAC/DC | Rotary for Tool | Flush, Recessed | - | - | 0.087" (2.20mm) | Surface Mount | J Lead | - | No | - | -55°C ~ 125°C |
|
A6SR-4104-PSWITCH PIANO DIP SPST 0.025A 24V |
1,934 |
|
数据手册 |
A6SR | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.197" (5.00mm) | Surface Mount, Right Angle | Gull Wing | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
A6E-2104-NSWITCH SLIDE DIP SPST 0.025A 24V |
3,017 |
|
数据手册 |
A6E-N | Tube | Active | SPST | 2 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.277" (7.05mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
428527320909SW ROTARY DIP OCT COMP 0.15A 24V |
4,283 |
|
数据手册 |
WS-ROTV | Tube | Active | Octal Complement | 8 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.256" (6.50mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
428527420916SWITCH ROTARY DIP HEX 0.15A 24V |
3,362 |
|
数据手册 |
WS-ROTV | Tube | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.543" (13.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP67 - Dust Tight, Waterproof | -40°C ~ 85°C |
|
A6D-4103SWITCH SLIDE DIP SPST 0.03A 30V |
2,964 |
|
数据手册 |
A6D | Tube | Active | SPST | 4 | 30mA | 30VDC | Slide (Standard) | Raised | - | Gold | 0.213" (5.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | IP64 - Dust Tight, Water Resistant | -20°C ~ 70°C |
|
BD08AVSWITCH SLIDE DIP SPST 0.1A 5V |
3,062 |
|
数据手册 |
BD | Tube | Active | SPST | 8 | 100mA | 5VDC | Slide (Standard) | Raised | Phosphor Bronze | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
428427320910SWITCH ROTARY DIP BCD 0.15A 24V |
3,735 |
|
数据手册 |
WS-ROTU | Tube | Active | BCD | 10 | 150mA | 24VDC | Rotary for Tool | Flush, Recessed | - | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -40°C ~ 85°C |
|
76RSB10STSWITCH ROCKER DIP SPST 0.15A 30V |
4,785 |
|
数据手册 |
76 | Tube | Active | SPST | 10 | 150mA | 30VDC | Rocker | Flush, Recessed | Copper Alloy | Gold | 0.292" (7.41mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|

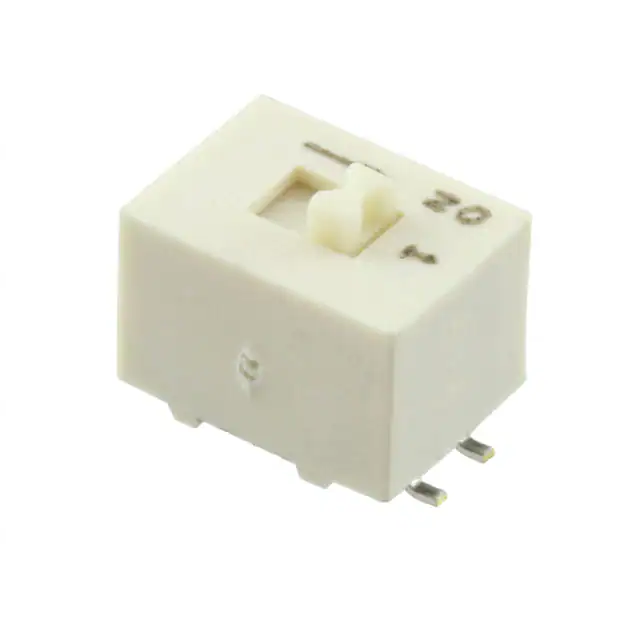

78HF01GWRTSWITCH SLIDE DIP DPST 0.15A 30V |
3,718 |
|
数据手册 |
78H | Tape & Reel (TR) | Active | DPST | 1 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.327" (8.30mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6KSV-164RSSWITCH ROTARY DIP HEX 0.025A 24V |
3,234 |
|
数据手册 |
A6KS | Tube | Active | Hexadecimal | 16 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.293" (7.45mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
DS04-254-2L-01BKSWITCH SLIDE DIP SPST 0.025A 24V |
4,018 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 1 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.144" (3.66mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
KP06ESWITCH PIANO DIP SPST 0.025A 24V |
1,716 |
|
数据手册 |
KP | Tube | Active | SPST | 6 | 25mA | 24VDC | Piano | Raised | Phosphor Bronze | Gold | 0.374" (9.50mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS04-254-1L-07BKSWITCH SLIDE DIP SPST 0.025A 24V |
1,388 |
|
数据手册 |
DS04-254 | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.166" (4.21mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
DS03-254-05BESWITCH SLIDE DIP SPST 0.025A 24V |
3,614 |
|
数据手册 |
DS03-254 | Tube | Active | SPST | 5 | 25mA | 24VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.390" (9.90mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
A6TN-3104SWITCH SLIDE DIP SPST 0.025A 24V |
2,360 |
|
数据手册 |
A6TN | Tube | Active | SPST | 3 | 25mA | 24VDC | Slide (Standard) | Raised | - | - | 0.228" (5.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
A6FR-8101SWITCH PIANO DIP SPST 0.025A 24V |
2,965 |
|
数据手册 |
A6FR | Tube | Active | SPST | 8 | 25mA | 24VDC | Piano | Flush, Recessed | - | - | 0.402" (10.20mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -20°C ~ 70°C |
|
418117270907SWITCH SLIDE DIP SPST 0.025A 24V |
3,177 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 7 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.189" (4.80mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418117170906SWITCH SLIDE DIP SPST 0.025A 24V |
1,192 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | - | Gold | 0.224" (5.70mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
418127270908SWITCH SLIDE DIP SPST 0.025A 24V |
4,983 |
|
数据手册 |
WS-DITV | Tube | Active | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Raised | - | Gold | 0.173" (4.40mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
