DIP 开关
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 电路 | 位置数量 | 电流额定值（安培） | 电压额定值 | 执行器类型 | 执行器水平 | 触点材料 | 触点表面处理 | 板上高度 | 安装类型 | 端接样式 | 间距 | 可清洗 | 特性 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A6KS-104RS-R100SWITCH ROTARY DIP BCD 0.025A 24V |
1,716 |
|
数据手册 |
A6KS | Tape & Reel (TR) | Active | BCD | 10 | 25mA | 24VDC | Rotary with Shaft | Raised | - | Gold | 0.236" (6.00mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 80°C |
|
78B09SRATSWITCH SLIDE DIP SPST 0.15A 30V |
4,744 |
|
数据手册 |
78 | Tube | Active | SPST | 9 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
|
78B10RATSWITCH SLIDE DIP SPST 0.15A 30V |
4,429 |
|
数据手册 |
78 | Bulk | Active | SPST | 10 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|
|
PT65525SWITCH ROTARY DIP BCD 0.15A 24V |
2,912 |
|
数据手册 |
PT65 | Bulk | Active | BCD | 6 | 150mA | 24VDC | Rotary with Knob | Raised | Phosphor Bronze | Gold | 0.469" (11.90mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|
CRD16RL1ABSWITCH ROTARY DIP HEX 0.4VA 20V |
4,071 |
|
数据手册 |
CRD | Bulk | Active | Hexadecimal | 16 | 0.4VA | 20VAC/DC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.414" (10.51mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -20°C ~ 85°C |
|
JS0408FP4-SSWITCH SLIDE DIP SPST 0.025A 24V |
4,275 |
|
数据手册 |
JS | Tube | Obsolete | SPST | 8 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.087" (2.20mm) | Surface Mount | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
A6HR-0104-R100SWITCH PIANO DIP SPST 0.025A 24V |
2,792 |
|
数据手册 |
A6HR | Tape & Reel (TR) | Active | SPST | 10 | 25mA | 24VDC | Piano | Raised | - | Gold | 0.165" (4.20mm) | Surface Mount, Right Angle | Gull Wing | 0.050" (1.27mm), Half | No | - | -30°C ~ 85°C |
|
|
PT65303L508SWITCH ROTARY DIP HEX 0.15A 24V |
3,639 |
|
数据手册 |
PT65 | Bulk | Active | Hexadecimal | 16 | 150mA | 24VDC | Rotary with Shaft | Raised | Phosphor Bronze | Gold | 0.394" (10.00mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed - Flux Protection | -20°C ~ 70°C |
|

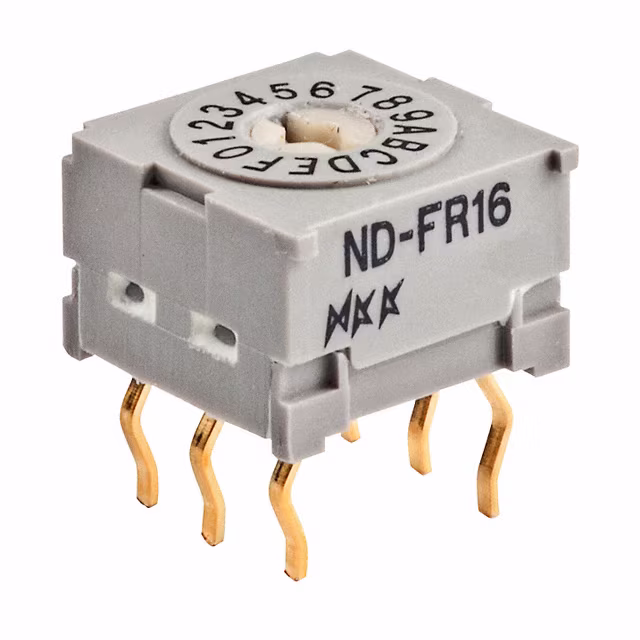

NDFR16PSWITCH ROTARY DIP HEX 0.1A 5V |
4,717 |
|
数据手册 |
ND | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.205" (5.20mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

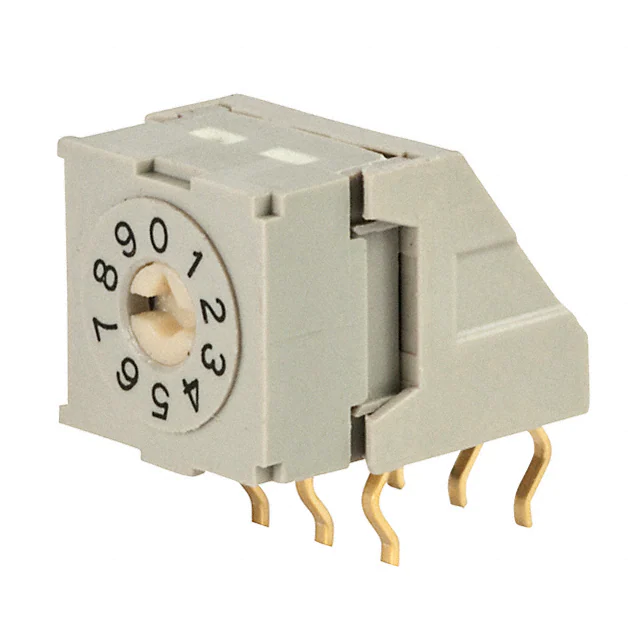

NDFR10HSWITCH ROTARY DIP BCD 0.1A 5V |
4,001 |
|
数据手册 |
ND | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.312" (7.92mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | Process Sealed | -25°C ~ 75°C |
|

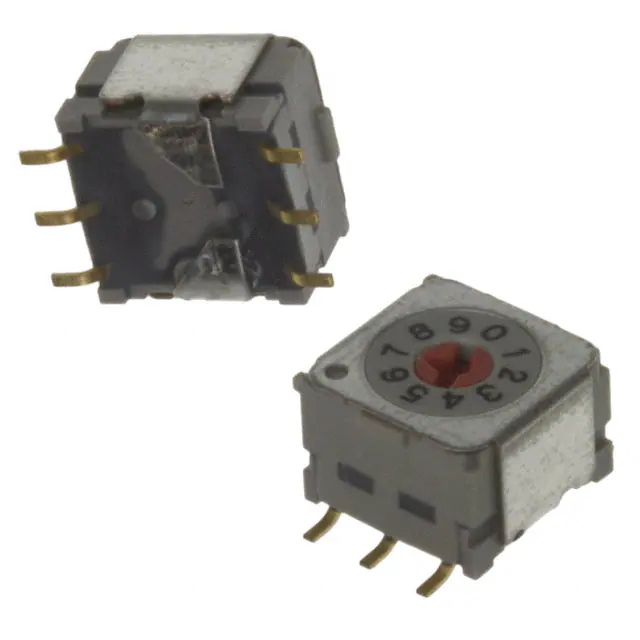

ND3FC10PSW ROTARY DIP BCD COMP 0.1A 5V |
3,650 |
|
数据手册 |
ND3 | Tray | Obsolete | BCD Complement | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|

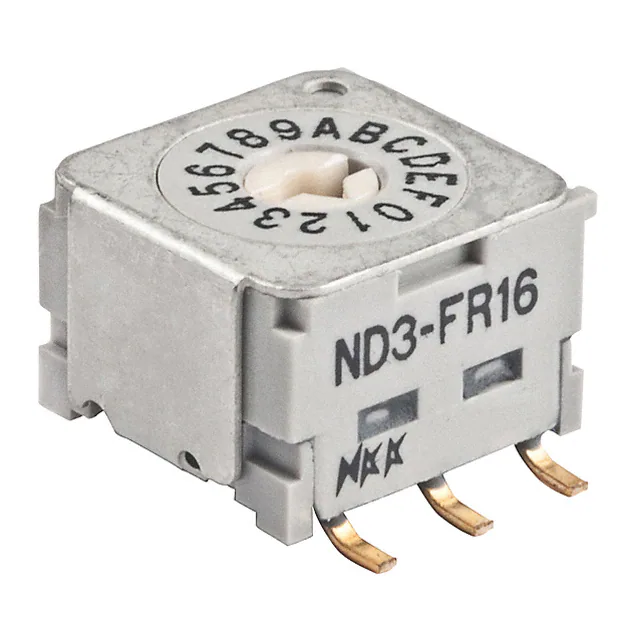

ND3FR16PSWITCH ROTARY DIP HEX 0.1A 5V |
1,959 |
|
数据手册 |
ND3 | Tray | Obsolete | Hexadecimal | 16 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
ND3FR10PSWITCH ROTARY DIP BCD 0.1A 5V |
2,212 |
|
数据手册 |
ND3 | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
78J05STSWITCH SLIDE DIP SPDT 0.15A 30V |
4,370 |
|
数据手册 |
78 | Bulk | Active | SPDT | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.315" (8.00mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Tape Seal | -40°C ~ 85°C |
|
ND3KR10PSWITCH ROTARY DIP BCD 0.1A 5V |
2,153 |
|
数据手册 |
ND3 | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Beryllium Copper | Gold | 0.346" (8.80mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
|
78F05RATSWITCH SLIDE DIP DPST 0.15A 30V |
1,932 |
|
数据手册 |
78 | Bulk | Active | DPST | 5 | 150mA | 30VDC | Slide (Standard) | Raised | Copper Alloy | Gold | 0.380" (9.64mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -40°C ~ 85°C |
|

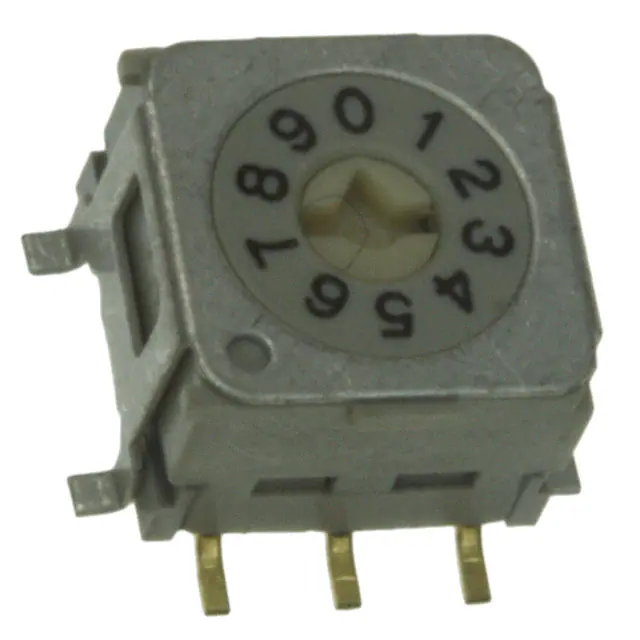

ND3FR10BSWITCH ROTARY DIP BCD 0.1A 5V |
100 |
|
数据手册 |
ND3 | Tray | Obsolete | BCD | 10 | 100mA | 5VDC | Rotary for Tool | Flush, Recessed | Beryllium Copper | Gold | 0.220" (5.59mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | Epoxy Sealed Terminals | -25°C ~ 85°C |
|
3-435470-1SW TOGGLE DIP DPDT 0.025A 24V |
3,553 |
|
数据手册 |
7000 | Tube | Obsolete | DPDT | 1 | 25mA | 24VDC | Toggle | Raised | Copper Alloy | Gold | 0.460" (11.68mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
|
FR01AC16HBSW ROTARY DIP HEX COMP 0.1A 5V |
2,970 |
|
数据手册 |
FR01 | Bulk | Active | Hexadecimal Complement | 16 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
|
|
FR01AC10HBSW ROTARY DIP BCD COMP 0.1A 5V |
3,193 |
|
数据手册 |
FR01 | Bulk | Active | BCD Complement | 10 | 100mA | 5VDC | Rotary with Shaft | Raised | Copper Alloy | Gold | 0.433" (11.00mm) | Panel Mount, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -25°C ~ 85°C |
