液体、液位
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 电源 | 灵敏度 | 特性 | 控制到传感器的距离（最大值） | 输出类型 | 触点形式 | 触点额定值 @ 电压 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84870710CONTROL LIQ LEV 24-240VAC/DC DIN |
2,479 |
|
数据手册 |
C-Lynx HNE | Bulk | Obsolete | High/Low Level | 24 ~ 240VAC/DC | - | Delay Timer | 100m | Relay | SPDT (1 Form C) | 5A @ 250VDC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
LLD-120ADRAIN LIQUID LEVEL CTRL, 120VAC, |
2,686 |
|
数据手册 |
- | Bulk | Active | Constant Level | 100 ~ 125VAC | 5 ~ 100kOhm | Adjustable Sensitivity | - | Relay | - | 10A @ 120VAC | Socketable | Plug In, 8 Pin (Octal) | 0°C ~ 40°C |
|
|
LLA-120AHIGH/LOW LEVEL ALARM, 120VAC, 8- |
2,536 |
|
数据手册 |
- | Bulk | Active | Constant Level | 100 ~ 125VAC | - | Level Indication | - | Relay | - | 10A @ 120VAC | Socketable | Plug In, 8 Pin (Octal) | 0°C ~ 40°C |
|
|
LLF-120AFILL LIQUID LEVEL CTRL, 120VAC, |
4,787 |
|
数据手册 |
- | Bulk | Active | Constant Level | 100 ~ 125VAC | 5 ~ 100kOhm | Adjustable Sensitivity | - | Relay | - | 10A @ 120VAC | Socketable | Plug In, 8 Pin (Octal) | 0°C ~ 40°C |
|
ISR-24V-10K2 CHANNEL IS RELAY, 24V 10K OHMS |
4,613 |
|
数据手册 |
- | Bulk | Active | Constant Level | 24VAC/DC | 10kOhm | - | 304.8m | Relay | - | 5A @ 250VAC | DIN Rail | Screw Terminal | 0°C ~ 55°C |
|
|
ISR-12V-10K2 CHANNEL IS RELAY, 12V 10K OHMS |
4,643 |
|
数据手册 |
- | Bulk | Active | Constant Level | 12VAC/DC | 10kOhm | - | 304.8m | Relay | - | 5A @ 250VAC | DIN Rail | Screw Terminal | 0°C ~ 55°C |
|
|
ISR-24V-100K2 CHANNEL IS RELAY, 24V 100K OHM |
1,702 |
|
数据手册 |
- | Bulk | Active | Constant Level | 24VAC/DC | 100kOhm | - | 304.8m | Relay | - | 5A @ 250VAC | DIN Rail | Screw Terminal | 0°C ~ 55°C |
|
ISL-24V-10K2 CHANNEL IS LATCH RELAY, 24V 10 |
2,398 |
|
数据手册 |
- | Bulk | Active | Constant Level | 24VAC/DC | 10kOhm | - | 304.8m | Relay | - | 5A @ 250VAC | DIN Rail | Screw Terminal | 0°C ~ 55°C |
|
LCS-20CONTROL LIQ LEVEL 240VAC CHASSIS |
3,327 |
|
数据手册 |
LCS | Bulk | Obsolete | High/Low Level | 240VAC | 0 ~ 100kOhm | Adjustable Sensitivity | - | Relay | SPDT (1 Form C) | 10A @ 120VAC | Chassis Mount | Screw Terminal | 0°C ~ 60°C |
|

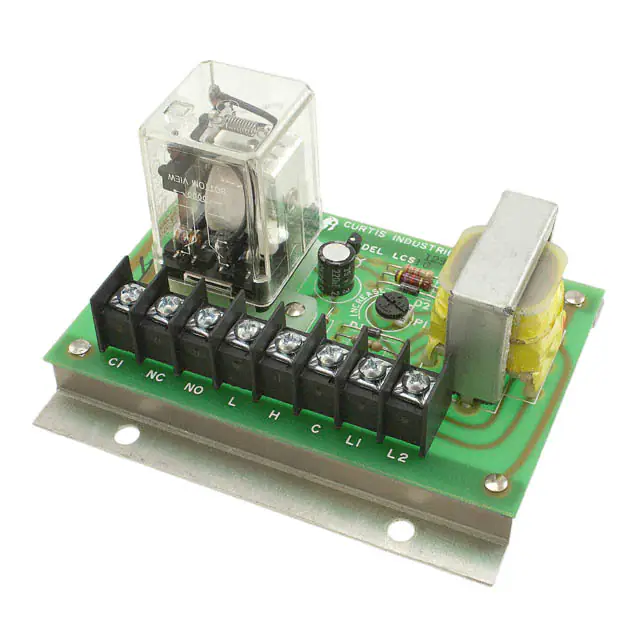

LCS-10CONTROL LIQ LEVEL 120VAC CHASSIS |
2,188 |
|
数据手册 |
LCS | Bulk | Obsolete | High/Low Level | 120VAC | 0 ~ 100kOhm | Adjustable Sensitivity | - | Relay | SPDT (1 Form C) | 10A @ 120VAC | Chassis Mount | Screw Terminal | 0°C ~ 60°C |
|
PDC-115ADUPLEX PUMP CONTROLLER, 120VAC, |
3,449 |
|
数据手册 |
- | Box | Active | Constant Level | 115VAC | - | Level Indication | - | Solid State | - | 10A @ 120VAC | - | Screw Terminal | 0°C ~ 65°C |
|
WFLTV-SM-2011SOCKET MNT LIQ LEVEL CONTROL |
1,963 |
|
数据手册 |
- | Box | Active | Conductive Liquid Level | 110VAC | - | - | - | Relay | - | - | Chassis Mount, DIN Rail | - | - |
|
LASC-DM-201-24VDCAUTO-SENSITIVITY LIQ LVL CONTRL |
4,544 |
|
数据手册 |
- | Box | Active | Conductive Liquid Level | 24VDC | - | Auto-Sensitivity | - | Relay | - | - | DIN Rail | - | - |
|
|
61F-GPN-V50 AC24VWATER LEAK DETECTOR 24VAC |
4,051 |
|
数据手册 |
61F | Bulk | Obsolete | Leak Detection | 24VAC | ±10 ~ 50kOhm | Adjustable Sensitivity | - | Relay | DPDT (2 Form C) | 3A @ 250VAC | Socketable | Plug In, 8 Pin (Octal) | -10°C ~ 50°C |
|
61F-GPN-V50-AC110CNTRL LIQ LEV 110VAC SOCKETABLE |
2,252 |
|
数据手册 |
61F | Bulk | Obsolete | Leak Detection | 110VAC | 0 ~ 50kOhm | Adjustable Sensitivity | - | Relay | SPDT (2 Form C) | 3A @ 250VAC | Socketable | Plug In, 11 Pin (Octal) | -10°C ~ 50°C |
|
|
61F-GPN-V50 AC100CNTRL LIQ LEV 100VAC SOCKETABLE |
4,369 |
|
数据手册 |
61F | Bulk | Obsolete | Leak Detection | 100VAC | 0 ~ 50kOhm | Adjustable Sensitivity | - | Relay | SPDT (2 Form C) | 3A @ 250VAC | Socketable | Plug In, 11 Pin (Octal) | -10°C ~ 50°C |
|
WFLTV-DM-6011DIN MNT LIQ LEVEL CONTROL |
2,109 |
|
数据手册 |
- | Box | Active | Conductive Liquid Level | 110VAC | - | - | - | Relay | - | - | DIN Rail | - | - |
|
LASC-DM-601-24VDCAUTO-SENSITIVITY LIQ LVL CONTRL |
3,915 |
|
数据手册 |
- | Box | Active | Conductive Liquid Level | 24VDC | - | Auto-Sensitivity | - | Relay | - | - | DIN Rail | - | - |
|
|
8802100200TL400-I industrial level transmi |
2,841 |
|
数据手册 |
- | Retail Package | Active | High/Low Level | 8 ~ 33VDC | - | - | 4m | Relay | - | - | Chassis Mount | Cable Leads | -20°C ~ 80°C |
|
|
LLD-240ADRAIN LIQUID LEVEL CTRL, 240VAC, |
3,142 |
|
数据手册 |
- | Bulk | Active | Constant Level | 200 ~ 240VAC | 5 ~ 100kOhm | Adjustable Sensitivity | - | Relay | - | 10A @ 120VAC | Socketable | Plug In, 8 Pin (Octal) | 0°C ~ 40°C |
