液体、液位
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 类型 | 电压 - 电源 | 灵敏度 | 特性 | 控制到传感器的距离（最大值） | 输出类型 | 触点形式 | 触点额定值 @ 电压 | 安装类型 | 端接样式 | 工作温度 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
84870700CONTROL LIQ LEV 24-240VAC/DC DIN |
1,666 |
|
数据手册 |
C-Lynx HNM | Bulk | Active | High/Low Level | 24 ~ 240VAC/DC | 250Ohm ~ 1MOhm | Delay Timer | 100m | Relay | DPDT (2 Form C) | 5A @ 250VDC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
LLC843F10PCONTROL LIQ LEV 120VAC 3SEC |
2,402 |
|
数据手册 |
LLC8 | Bulk | Active | Constant Level | 120VAC | Fixed, 10kOhm | LED Indicator | - | Relay | SPDT (1 Form C) | 10A @ 120VAC | Chassis Mount | Quick Connect - 0.187"/0.250" | -40°C ~ 60°C |
|
LLC845F25PCONTROL LIQ LEV 120VAC 5SEC |
2,705 |
|
数据手册 |
LLC8 | Bulk | Active | Constant Level | 120VAC | Fixed, 25kOhm | LED Indicator | - | Relay | SPDT (1 Form C) | 10A @ 120VAC | Chassis Mount | Quick Connect - 0.187"/0.250" | -40°C ~ 60°C |
|
LLC54AACONTROL LIQ LEV 120VAC DRAIN |
2,141 |
|
数据手册 |
LLC5 | Bulk | Active | High/Low Level | 120VAC | 1kOhm ~ 100kOhm | Adjustable Sensitivity | - | Relay | SPDT (1 Form C) | 5A @ 240VAC | Socketable | Plug In, 8 Pin (Octal) | -20°C ~ 60°C |
|
RM35LM33MWHARMONY, MODULAR LIQUID LEVEL CO |
3,252 |
|
数据手册 |
Harmony | Box | Active | Liquid/Fuel Level Monitor | 24 ~ 240VAC/DC | - | Adjustable Sensitivity | - | Relay | - | 5A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
460-15-100-SLDSEAL LEAK DETECTOR/ 110-120V/ |
1,306 |
|
数据手册 |
- | Bulk | Active | Leak Detection | 110 ~ 120VAC | 4.7kOhm ~ 100kOhm | Alarm Leak - Audible and Contact and LED Indication, Adjustable Sensitivity | - | Relay | DPST-NO (2 Form A) | 8A @ 240VAC | DIN Rail | Screw Terminal | -40°C ~ 70°C |
|
K8AK-LS1 24VAC/DCCNTRL LIQ LEV 24VAC/DC DIN RAIL |
4,359 |
|
数据手册 |
K8AK-LS | Bulk | Active | High/Low Level | 24VAC/DC | 10kOhm ~ 100kOhm | Adjustable Sensitivity, Delay Timer | 100m | Relay | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 60°C |
|
|
K8AK-LS1 100-240VACCONTROL LIQ LEVEL 100-240VAC DIN |
4,864 |
|
数据手册 |
K8AK-LS | Bulk | Active | High/Low Level | 100 ~ 240VAC | 10kOhm ~ 100kOhm | Adjustable Sensitivity, Delay Timer | 100m | Relay | SPDT (1 Form C) | 3A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 60°C |
|
CLP2EA1C115CONTROL LIQ LEV DPDT 115V |
1,705 |
|
数据手册 |
CL | Box | Active | High/Low Level | 115VAC | 250Ohm ~ 500kOhm | Adjustable Sensitivity | - | Relay | DPDT (2 Form C) | 8A @ 250VAC | Socketable | Plug In, 11 Pin (Octal) | -20°C ~ 50°C |
|
LLC24B2F50NLIQUID LEVEL CONTROL |
3,085 |
|
数据手册 |
LLC2 | Bulk | Active | Constant Level | 120VAC | Fixed, 50kOhm | - | - | Relay | SPDT (1 Form C) | 10A @ 120VAC | Chassis Mount | Screw Terminal | -20°C ~ 55°C |
|
PC-102CICI-LTRELAY LEAK/TEMP DETECTOR/1 |
2,613 |
|
数据手册 |
PC-102 | Bulk | Active | Leak Detection | 120VAC | 4.7kOhm ~ 100kOhm | Adjustable Sensitivity | - | Relay | SPDT (1 Form C) x 2 | 5A @ 240VAC | DIN Rail | Screw Terminal | -20°C ~ 55°C |
|

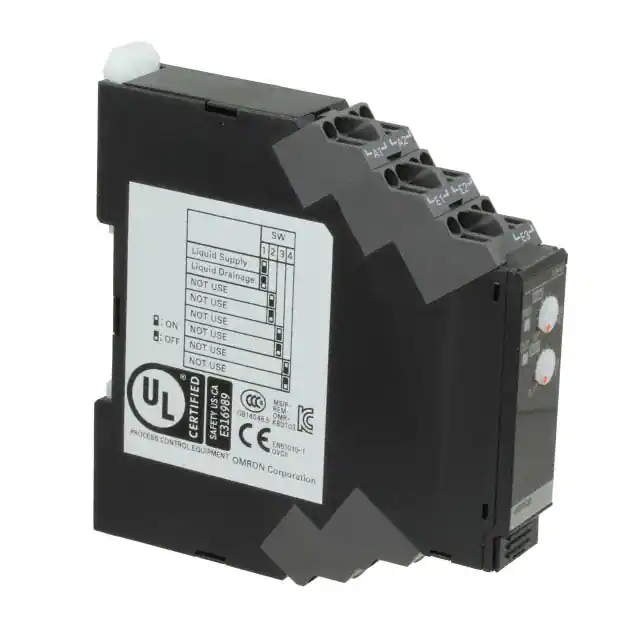

K8DT-LS1CDCONTROL LIQ LEV 24VAC/DC DIN |
2,448 |
|
数据手册 |
K8DT | Box | Active | Constant Level | 24VAC/DC | 10 ~ 100kOhm | Delay Timer | 100m | Relay | SPDT (1 Form C) | 5A @ 250VAC | DIN Rail | Spring Terminal | -20°C ~ 60°C |
|
3UG45011AW30LIQUID LEVEL MONITOR, 5-100 KOHM |
2,126 |
|
数据手册 |
3UG4 | Bulk | Active | High/Low Level | 24 ~ 240VAC/DC | 2 ~ 200kOhm | - | - | Relay | - | 3A @ 250VAC | DIN Rail | Screw Terminal | -25°C ~ 60°C |
|
CLD1EA1CM24COND LEVEL 1+1 FILL EMPTY DIN |
1,830 |
|
数据手册 |
CL | Box | Active | High/Low Level | 24VAC/DC | 5kOhm ~ 150kOhm | Adjustable Sensitivity | - | Relay | SPST-NO (1 Form A) | 8A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
CLD2EA1CM24CONTROL LIQ LEV DPDT 24 V AC/DC |
3,367 |
|
数据手册 |
CL | Box | Active | High/Low Level | 24VAC/DC | 250Ohm ~ 500kOhm | Adjustable Sensitivity | - | Relay | DPDT (2 Form C) | 8A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
CLD4MA2D115COND LEVEL 4+1 MULIT FUNC DIN |
2,735 |
|
数据手册 |
CL | Box | Active | High/Low Level | 115VAC | 250Ohm ~ 500kOhm | Adjustable Sensitivity | - | Relay | SPST-NO (1 Form A), SPDT (1 Form C) | 8A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
SQ4-C11CONTROL LIQ LEVEL 24VDC DIN RAIL |
3,739 |
|
数据手册 |
SQ4 | Box | Active | Leak Detection | 24VDC | - | Alarm Leak - Audible and Contact and LED Indication, Two Stage | - | Solid State | - | - | DIN Rail | Screw Terminal | -10°C ~ 55°C |
|
|
72.01.8.240.0002LEVEL CONTROL RELAY, ADJUSTABLE |
2,396 |
|
数据手册 |
72 | Box | Active | High/Low Level | 230 ~ 240VAC | 5kOhm ~ 450kOhm | Adjustable Sensitivity | - | Relay | SPDT (1 Form C) | - | DIN Rail | Screw Terminal | -20°C ~ 60°C |
|
RM35LV14MWHARMONY, MODULAR LIQUID LEVEL CO |
2,175 |
|
数据手册 |
Harmony | Box | Active | Liquid/Fuel Level Monitor | 24 ~ 240VAC/DC | - | Adjustable Sensitivity | - | Relay | - | 5A @ 250VAC | DIN Rail | Screw Terminal | -20°C ~ 50°C |
|
K8DT-LS1TACONTROL LIQ LEV 100-240VAC DIN |
2,286 |
|
数据手册 |
K8 | Box | Active | Constant Level | 100 ~ 240VAC | 10 ~ 100kOhm | Delay Timer | 100m | Solid State | - | - | DIN Rail | Screw Terminal | -20°C ~ 60°C |
