箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBS-11273BOX ABS GRAY 6.3"L X 3.75"W Bud Industries |
1,650 |
|
数据手册 |
Plastibox Style C | Bulk | Active | Box | 6.300" L x 3.750" W (160.02mm x 95.25mm) | 1.410" (35.81mm) | 23.6in² (152cm²) | Split Sides | Plastic, ABS | Gray | 0.110" (2.79mm) | Battery Compartment, 9V, PCB Supports | - | UL94 HB |
|
|
PI-1908BOX ABS GRAY 5.91"L X 3.16"W Bud Industries |
1,473 |
|
数据手册 |
PI | Bulk | Active | Box | 5.910" L x 3.160" W (150.11mm x 80.26mm) | 2.360" (59.94mm) | 18.7in² (121cm²) | Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.080" (2.03mm) | Card Guides, PCB Supports | - | UL94 V-0 |
|
|
PS-11276BOX ABS GRAY 6.3"L X 3.75"W Bud Industries |
1,415 |
|
数据手册 |
Plastibox Style C | Bulk | Active | Box | 6.300" L x 3.750" W (160.02mm x 95.25mm) | 1.410" (35.81mm) | 23.6in² (152cm²) | Split Sides | Plastic, ABS | Gray | 0.110" (2.79mm) | PCB Supports | - | UL94 HB |
|
|
CU-5473BOX ALUM NATURAL 4.69"L X 3.69"W Bud Industries |
1,657 |
|
数据手册 |
Econobox | Bulk | Active | Box | 4.688" L x 3.688" W (119.08mm x 93.68mm) | 1.340" (34.04mm) | 17.3in² (112cm²) | Cover Included | Metal, Aluminum | Natural | 0.094" (2.39mm) | - | - | - |
|

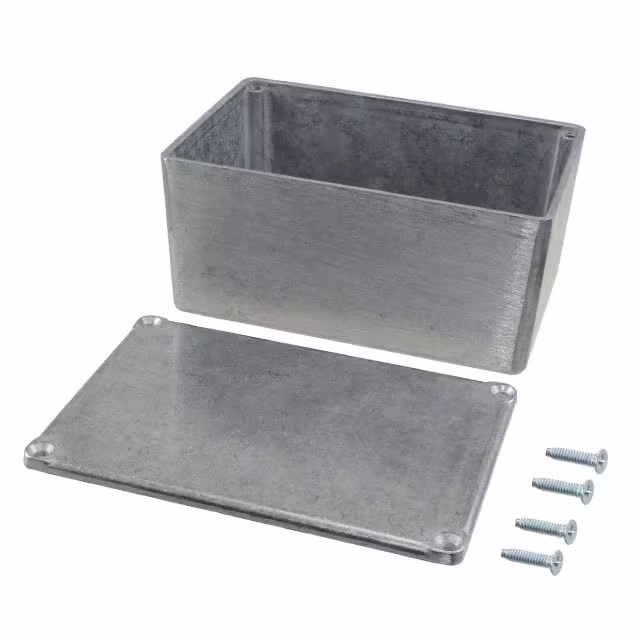

CU-472BOX ALUM NATURAL 4.75"L X 3.15"W Bud Industries |
3,934 |
|
数据手册 |
Econobox | Bulk | Active | Box | 4.750" L x 3.150" W (120.65mm x 80.01mm) | 2.330" (59.18mm) | 15.0in² (97cm²) | Cover Included | Metal, Aluminum | Natural | 0.094" (2.39mm) | - | - | - |
|
|
CUR-3281-MBBOX ABS BLACK 4.604"L X 3.10"W Bud Industries |
4,484 |
|
数据手册 |
Utilibox Style A | Bulk | Active | Box | 4.604" L x 3.104" W (116.94mm x 78.84mm) | 1.872" (47.55mm) | 14.2in² (92cm²) | Cover Included | Plastic, ABS | Black | 0.130" (3.30mm) | Mounting Flange, PCB Supports | - | UL94 5VA, UL94 V-0 |
|
|
CU-5479BOX ALUM NATURAL 4.38"L X 2.38"W Bud Industries |
1,618 |
|
数据手册 |
Econobox | Bulk | Active | Box | 4.375" L x 2.375" W (111.13mm x 60.33mm) | 2.136" (54.25mm) | 10.4in² (67cm²) | Cover Included | Metal, Aluminum | Natural | 0.065" (1.65mm) | - | - | - |
|
|
AN-1311-ABBOX ALUM BLACK 1.97"L X 1.77"W Bud Industries |
1,187 |
|
数据手册 |
AN-A | Bulk | Active | Box | 1.965" L x 1.770" W (49.91mm x 44.96mm) | 1.118" (28.40mm) | 3.48in² (22.5cm²) | Cover Included | Metal, Aluminum | Black | 0.120" (3.05mm) | PCB Supports, Watertight | IP68, NEMA 4X,6,6P,12,13 | - |
|
|
CU-2104-BBOX ALUM GRAY 5"L X 2.25"W Bud Industries |
4,939 |
|
数据手册 |
Mini-Box | Bulk | Active | Box | 5.000" L x 2.250" W (127.00mm x 57.15mm) | 2.250" (57.15mm) | 11.3in² (73cm²) | U Shaped Pieces | Metal, Aluminum | Gray | 0.040" (1.02mm) | - | - | - |
|
|
CU-471-GBOX ALUM GRAY 4.33"L X 3.25"W Bud Industries |
3,394 |
|
数据手册 |
Econobox | Bulk | Active | Box | 4.330" L x 3.250" W (109.98mm x 82.55mm) | 1.750" (44.45mm) | 14.1in² (91cm²) | Cover Included | Metal, Aluminum | Gray | 0.094" (2.39mm) | - | - | - |
