箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PT-11653-MBBOX ABS BLACK 5.63"L X 3.25"W Bud Industries |
2,638 |
|
数据手册 |
Plastibox Style H | Bulk | Active | Box | 5.625" L x 3.250" W (142.88mm x 82.55mm) | 1.140" (28.96mm) | 18.3in² (118cm²) | Split Sides | Plastic, ABS | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports | - | UL94 5VA |
|

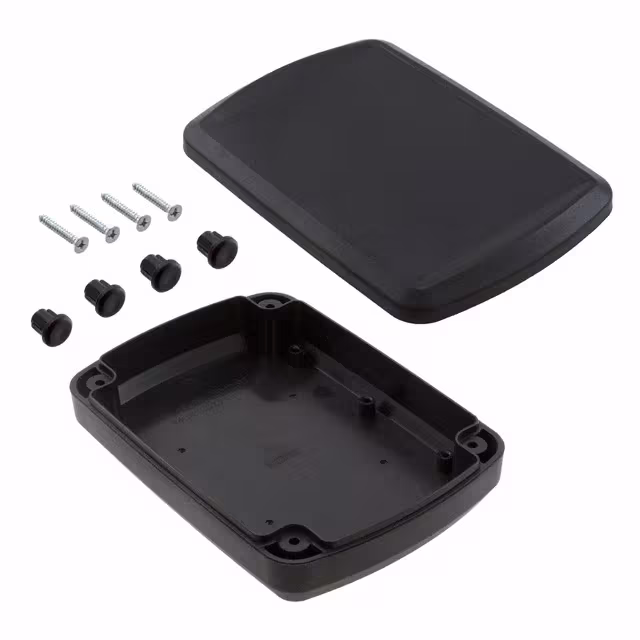

TB-32610-BBOX ABS BLACK 5.51"L X 3.94"W Bud Industries |
2,939 |
|
数据手册 |
TB | Bulk | Active | Box | 5.512" L x 3.937" W (140.00mm x 100.00mm) | 1.181" (30.00mm) | 21.7in² (140cm²) | Split Sides | Plastic, ABS | Black | 0.091" (2.30mm) | PCB Supports | - | UL94 HB |
|

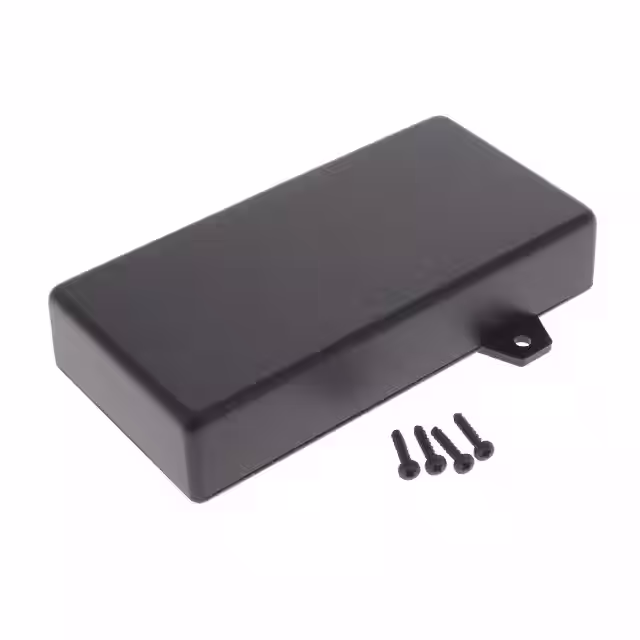

CU-743-MBBOX PLAS BLACK 5.03"L X 2.525"W Bud Industries |
4,632 |
|
数据手册 |
Utilibox Style D | Bulk | Active | Box | 5.030" L x 2.525" W (127.76mm x 64.14mm) | 1.025" (26.04mm) | 12.7in² (82cm²) | Cover Included | Plastic, Polystyrene | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports | - | - |
|
|
CU-745-MBBOX PLAS BLACK 5.03"L X 2.525"W Bud Industries |
4,552 |
|
数据手册 |
Utilibox Style D | Bulk | Active | Box | 5.030" L x 2.525" W (127.76mm x 64.14mm) | 1.615" (41.02mm) | 12.7in² (82cm²) | Cover Included | Plastic, Polystyrene | Black | 0.100" (2.54mm) | Mounting Flange, PCB Supports | - | - |
|
|
CUR-3282BOX ABS BLACK 4.612"L X 4.612"W Bud Industries |
3,590 |
|
数据手册 |
Utilibox Style A | Bulk | Active | Box | 4.612" L x 4.612" W (117.14mm x 117.14mm) | 2.356" (59.84mm) | 21.3in² (137cm²) | Cover Included | Plastic, ABS | Black | 0.130" (3.30mm) | PCB Supports | - | UL94 5VA, UL94 V-0 |
|

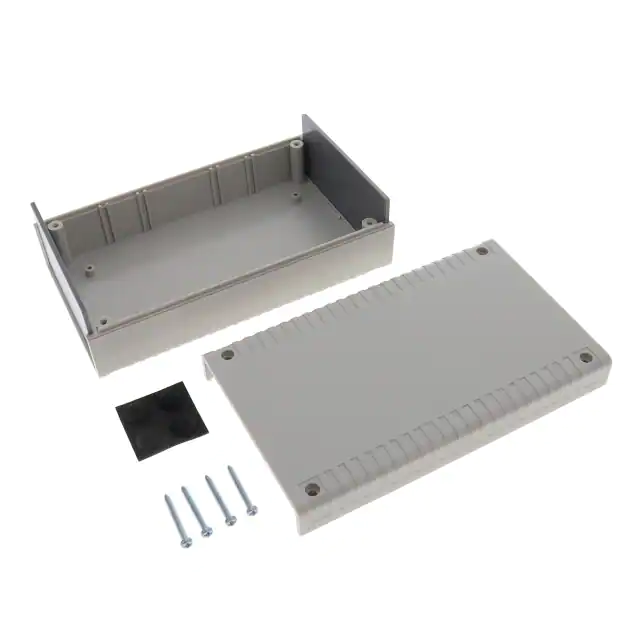

PC-11461BOX ABS GRAY 6.22"L X 3.74"W Bud Industries |
4,918 |
|
数据手册 |
Plasticase Style E | Bulk | Active | Box | 6.220" L x 3.740" W (157.99mm x 95.00mm) | 1.850" (46.99mm) | 23.2in² (150cm²) | Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.120" (3.05mm) | Card Guides, PCB Supports | - | UL94 HB |
|
|
PC-11462BOX ABS GRAY 6.22"L X 3.74"W Bud Industries |
3,080 |
|
数据手册 |
Plasticase Style E | Bulk | Active | Box | 6.220" L x 3.740" W (157.99mm x 95.00mm) | 2.283" (57.99mm) | 23.2in² (150cm²) | Split Sides and End Panel(s) | Plastic, ABS | Gray | 0.120" (3.05mm) | Card Guides, PCB Supports | - | UL94 HB |
|
|
AN-1318-ABALUMINUM ENCLOSURE BLACK (2.2 X Bud Industries |
2,918 |
|
数据手册 |
AN | Bulk | Active | Enclosure | 2.190" L x 1.610" W (55.63mm x 40.89mm) | 1.220" (30.99mm) | 3.53in² (22.8cm²) | Cover Included | Metal, Aluminum | Natural | 0.060" (1.52mm) | - | IP68, NEMA 4, 4X, 6, 6P, 12, 13 | - |
|
|
4001336BOX HH-3642 MOD TO CUST REQ Bud Industries |
4,605 |
|
数据手册 |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - |
|
|
PB-1581BOX ABS BLACK 2.08" X 1.28" 10PC Bud Industries |
3,263 |
|
数据手册 |
Style A | Bulk | Active | Box, Potting | 2.079" L x 1.280" W (52.81mm x 32.51mm) | 0.445" (11.30mm) | 2.66in² (17.2cm²) | Open End(s) | Plastic, ABS | Black | 0.070" (1.78mm) | - | - | UL94 V-0 |
