箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-CGS-102307BOX PLAS LGT GRY 9.06"L X 3.94"W Boxco |
2,156 |
|
数据手册 |
S | Bulk | Active | Box | 9.055" L x 3.937" W (230.00mm x 100.00mm) | 2.756" (70.00mm) | 35.6in² (230cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CGS-151507BOX PLAS LGT GRY 5.91"L X 5.91"W Boxco |
2,347 |
|
数据手册 |
S | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 2.953" (75.00mm) | 34.9in² (225cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

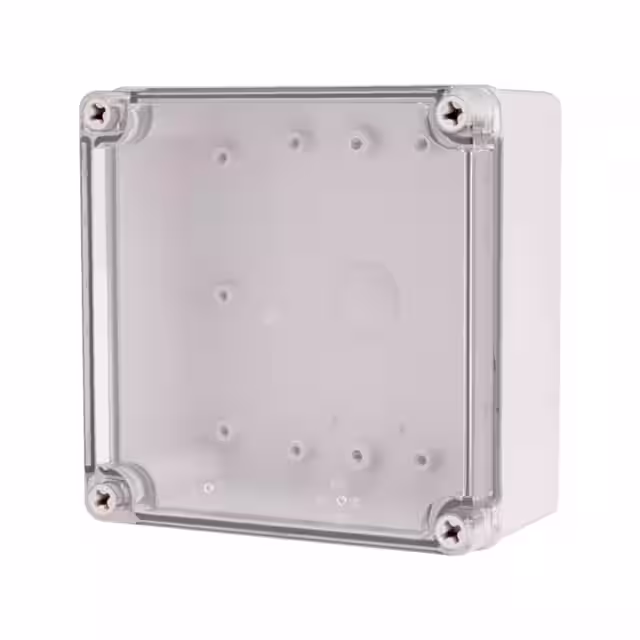

BC-CTS-151507BOX PLASTIC CLR 5.91"L X 5.91"W Boxco |
1,364 |
|
数据手册 |
S | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 2.953" (75.00mm) | 34.9in² (225cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

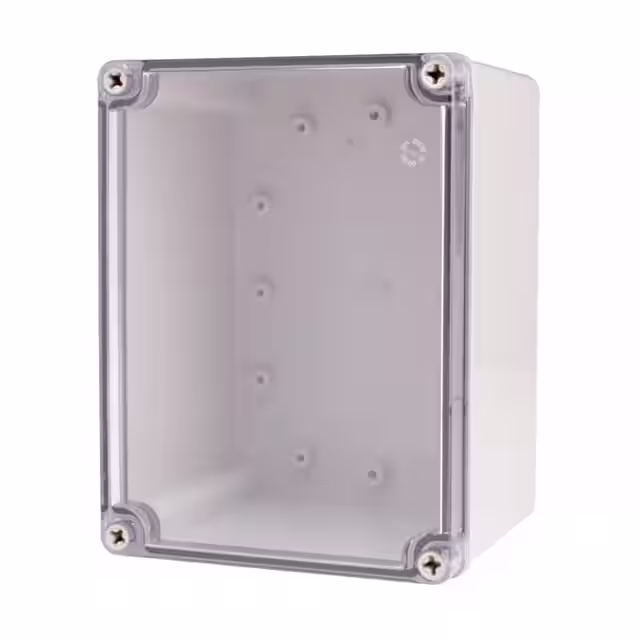

BC-ATS-152013BOX ABS CLEAR 7.87"L X 5.91"W Boxco |
2,358 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 5.118" (130.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

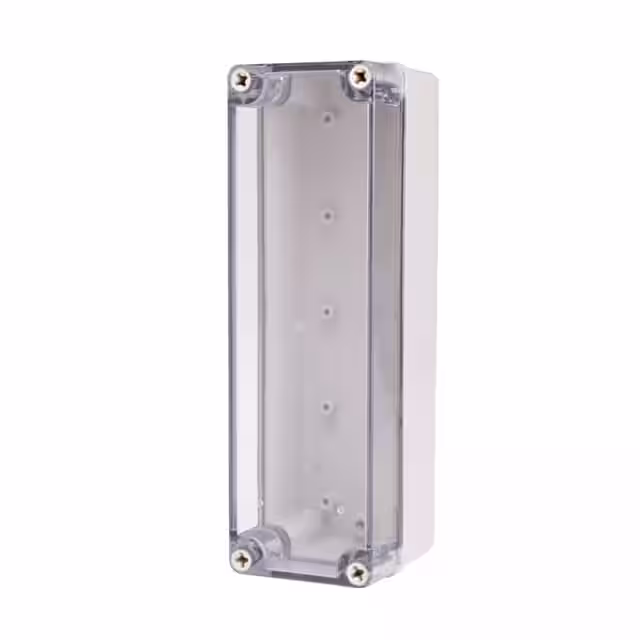

BC-CTS-082508BOX PLASTIC CLR 9.84"L X 3.15"W Boxco |
2,589 |
|
数据手册 |
S | Bulk | Active | Box | 9.843" L x 3.150" W (250.00mm x 80.00mm) | 3.346" (85.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CGS-121707BOX PLAS LGT GRY 6.89"L X 4.92"W Boxco |
2,781 |
|
数据手册 |
S | Bulk | Active | Box | 6.890" L x 4.921" W (175.00mm x 125.00mm) | 2.953" (75.00mm) | 33.9in² (219cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-CGS-161607BOX PLAS LGT GRY 6.3"L X 6.3"W Boxco |
1,308 |
|
数据手册 |
S | Bulk | Active | Box | 6.299" L x 6.299" W (160.00mm x 160.00mm) | 2.756" (70.00mm) | 39.7in² (256cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-AGG-15PJUNCTION BOX ABS 7.87"L X 3.94"W Boxco |
4,755 |
|
数据手册 |
TB | Bulk | Active | Junction Box | 7.874" L x 3.937" W (200.00mm x 100.00mm) | 2.756" (70.00mm) | 31.0in² (200cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-CTS-151510BOX PLASTIC CLR 5.91"L X 5.91"W Boxco |
2,190 |
|
数据手册 |
S | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 3.937" (100.00mm) | 34.9in² (225cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

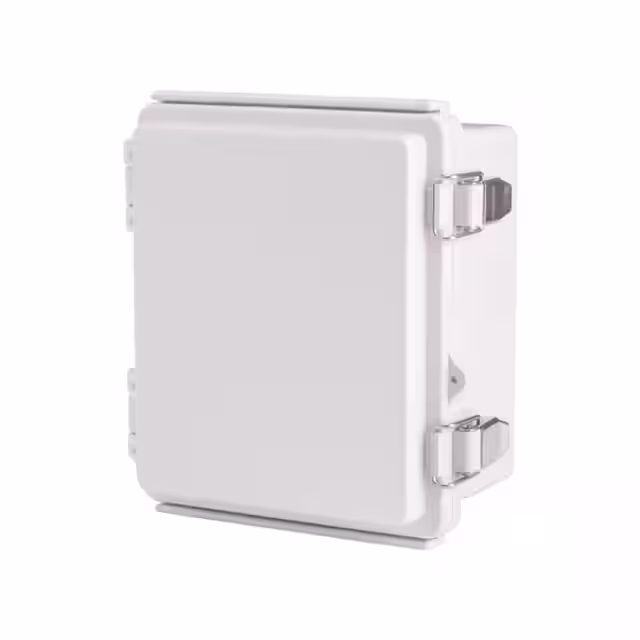

BC-CGP-131508BOX PLAS LGT GRY 6.1"L X 5.32"W Boxco |
3,008 |
|
数据手册 |
P | Bulk | Active | Box | 6.102" L x 5.315" W (155.00mm x 135.00mm) | 3.346" (85.00mm) | 32.4in² (209cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
