箱体
| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

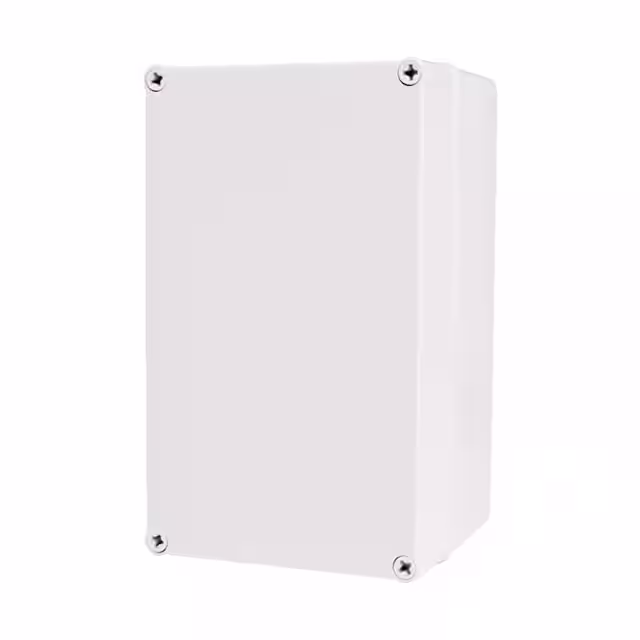

BC-AGS-152513BOX ABS LGT GRY 9.84"L X 5.91"W Boxco |
3,386 |
|
数据手册 |
S | Bulk | Active | Box | 9.843" L x 5.906" W (250.00mm x 150.00mm) | 5.118" (130.00mm) | 58.1in² (375cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

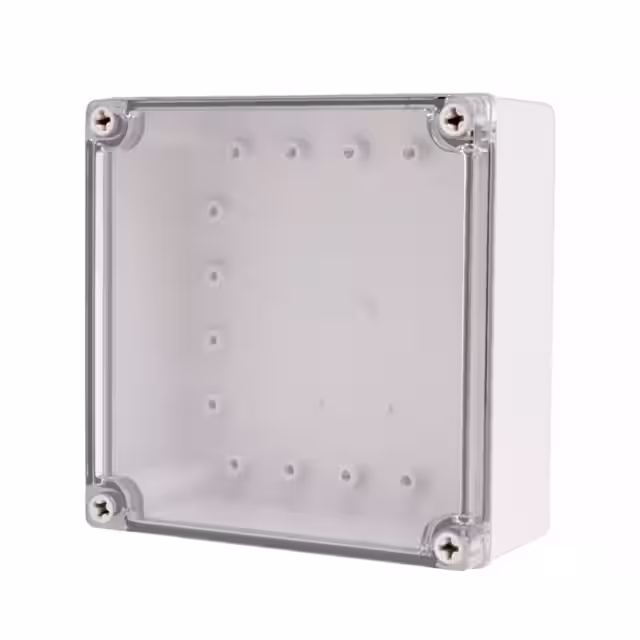

BC-CTS-161607BOX PLASTIC CLEAR 6.3"L X 6.3"W Boxco |
3,846 |
|
数据手册 |
S | Bulk | Active | Box | 6.299" L x 6.299" W (160.00mm x 160.00mm) | 2.756" (70.00mm) | 39.7in² (256cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

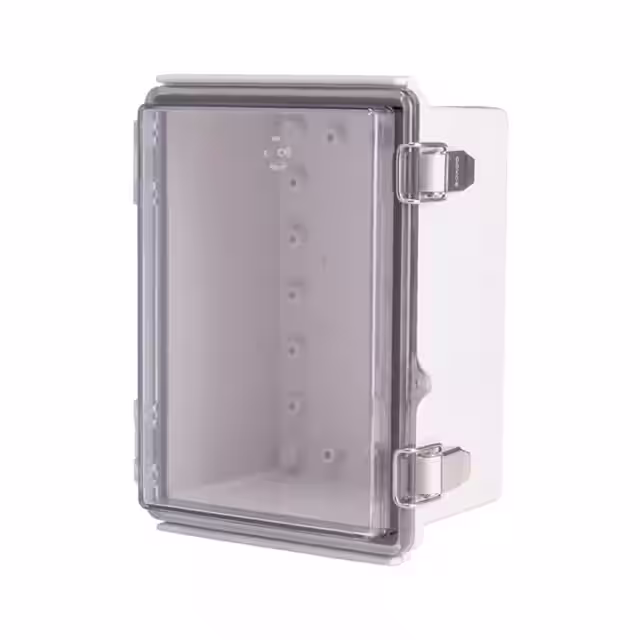

BC-ATP-131810BOX ABS CLEAR 7.28"L X 5.32"W Boxco |
4,227 |
|
数据手册 |
P | Bulk | Active | Box | 7.283" L x 5.315" W (185.00mm x 135.00mm) | 3.937" (100.00mm) | 38.7in² (250cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-AGP-172210BOX ABS GRAY 8.661"L X 6.693"W Boxco |
1,384 |
|
数据手册 |
P | Bulk | Active | Box | 8.661" L x 6.693" W (220.00mm x 170.00mm) | 4.134" (105.00mm) | 58.0in² (374cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS | Light Gray | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-AGS-212310BOX ABS LGT GRY 9.06"L X 8.27"W Boxco |
1,614 |
|
数据手册 |
S | Bulk | Active | Box | 9.055" L x 8.268" W (230.00mm x 210.00mm) | 3.937" (100.00mm) | 74.9in² (483cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

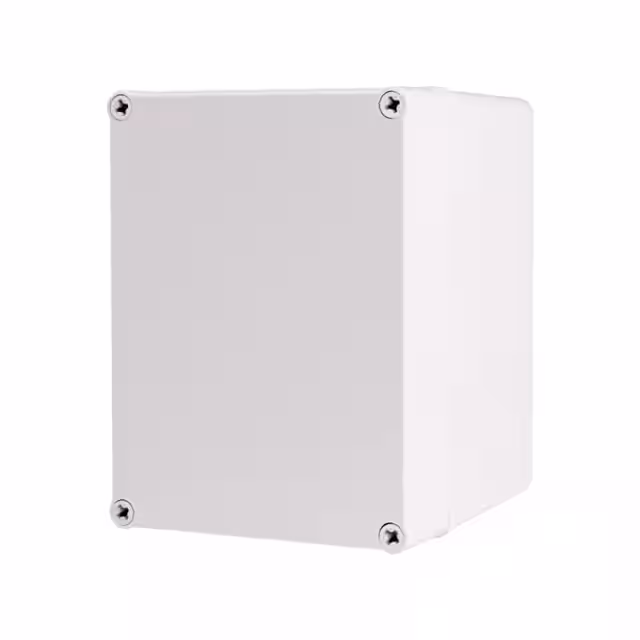

BC-AGS-152016BOX ABS LGT GRY 7.87"L X 5.91"W Boxco |
3,430 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 5.906" W (200.00mm x 150.00mm) | 6.299" (160.00mm) | 46.5in² (300cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-ATP-151512BOX ABS CLEAR 5.91"L X 5.91"W Boxco |
3,862 |
|
数据手册 |
P | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 4.724" (120.00mm) | 34.9in² (225cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

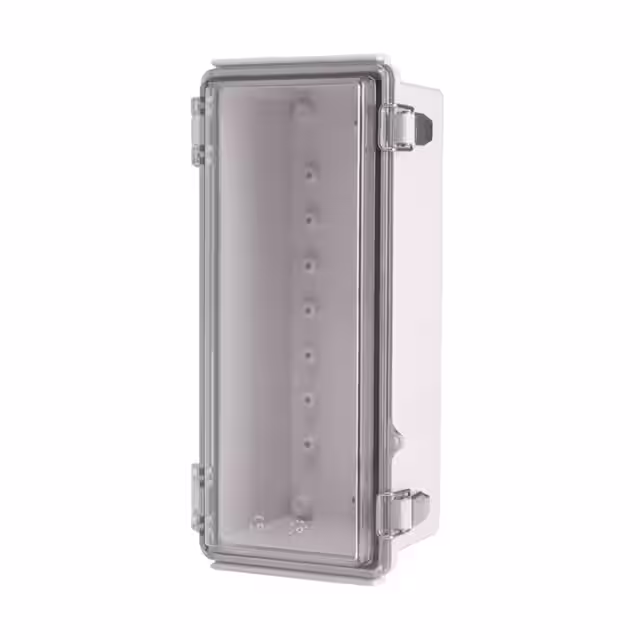

BC-ATP-112610BOX ABS CLEAR 10.24"L X 4.33"W Boxco |
3,448 |
|
数据手册 |
P | Bulk | Active | Box | 10.236" L x 4.331" W (260.00mm x 110.00mm) | 3.937" (100.00mm) | 44.3in² (286cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

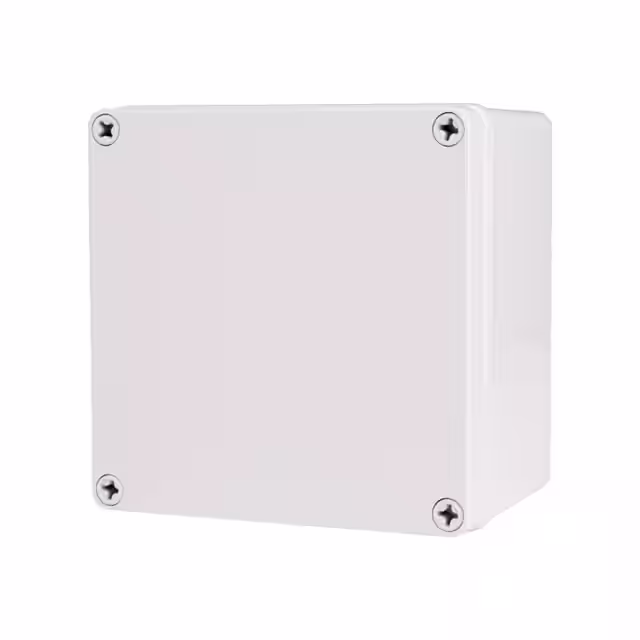

BC-CGS-151510BOX PLAS LGT GRY 5.91"L X 5.91"W Boxco |
4,926 |
|
数据手册 |
S | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 3.937" (100.00mm) | 34.9in² (225cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-ATS-202010BOX ABS CLEAR 7.87"L X 7.87"W Boxco |
1,546 |
|
数据手册 |
S | Bulk | Active | Box | 7.874" L x 7.874" W (200.00mm x 200.00mm) | 3.937" (100.00mm) | 62.0in² (400cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
