| 图片 | 制造商型号 | 库存情况 | 数量 | 数据手册 | 系列 | 包装 | 产品状态 | 容器类型 | 尺寸 / 尺寸 | 高度 | 面积（长 x 宽） | 设计 | 材质 | 颜色 | 厚度 | 特性 | 额定值 | 材料阻燃等级 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
BC-AGS-121710BOX ABS LGT GRY 6.89"L X 4.92"W Boxco |
2,512 |
|
数据手册 |
S | Bulk | Active | Box | 6.890" L x 4.921" W (175.00mm x 125.00mm) | 3.937" (100.00mm) | 33.9in² (219cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

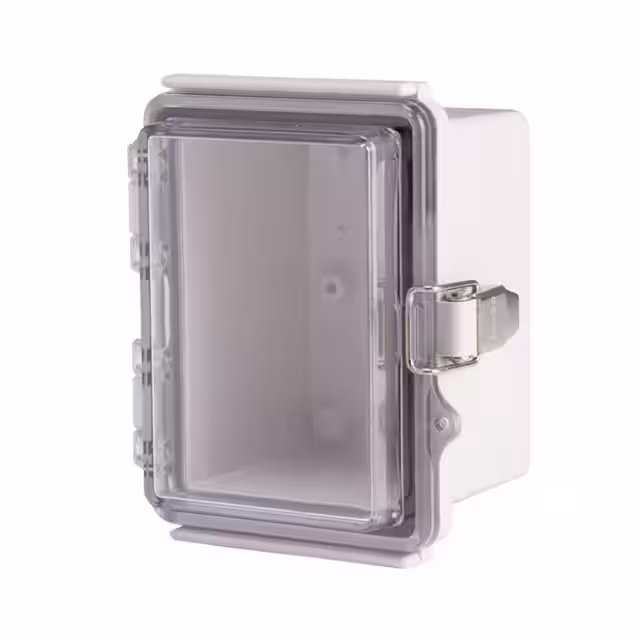

BC-CTP-091208BOX PLASTIC CLR 4.72"L X 3.54"W Boxco |
1,602 |
|
数据手册 |
P | Bulk | Active | Box | 4.724" L x 3.543" W (120.00mm x 90.00mm) | 3.346" (85.00mm) | 16.7in² (108cm²) | Hinged Door, Stainless Steel Latch | Plastic, Polycarbonate/Fiberglass | Light Gray, Clear Cover | 0.126" (3.20mm) | Flame Retardant, Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|

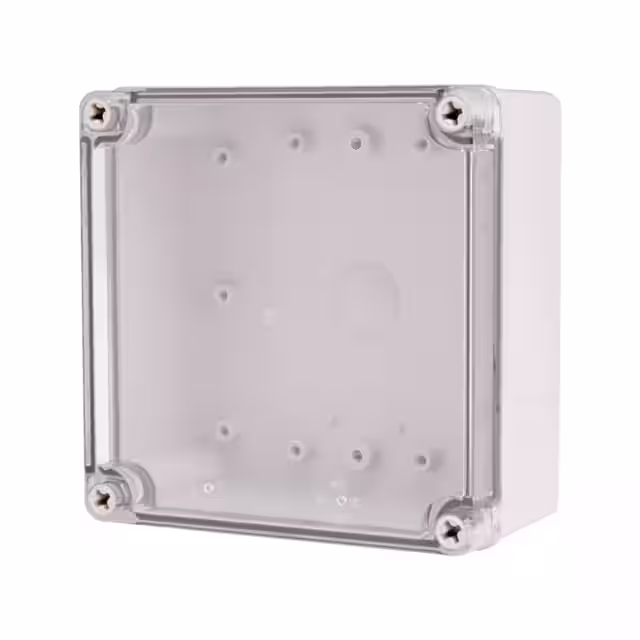

BC-ATS-151507BOX ABS CLEAR 5.906"L X 5.906"W Boxco |
2,675 |
|
数据手册 |
S | Bulk | Active | Box | 5.906" L x 5.906" W (150.00mm x 150.00mm) | 2.953" (75.00mm) | 34.9in² (225cm²) | Lift-Off Screw Cover | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-ABB-10PJUNCT BOX ABS 4.016"L X 3.583"W Boxco |
3,040 |
|
数据手册 |
TB | Bulk | Active | Junction Box | 4.016" L x 3.583" W (102.00mm x 91.00mm) | 1.693" (43.00mm) | 14.4in² (93cm²) | Lift-Off Screw Cover | Plastic, ABS | Grayish Blue | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-AGG-10PJUNCT BOX ABS 4.016"L X 3.583"W Boxco |
3,195 |
|
数据手册 |
TB | Bulk | Active | Junction Box | 4.016" L x 3.583" W (102.00mm x 91.00mm) | 1.693" (43.00mm) | 14.4in² (93cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|
BC-ATP-101507BOX ABS CLEAR 5.91"L X 3.94"W Boxco |
4,360 |
|
数据手册 |
P | Bulk | Active | Box | 5.906" L x 3.937" W (150.00mm x 100.00mm) | 2.756" (70.00mm) | 23.3in² (150cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
|

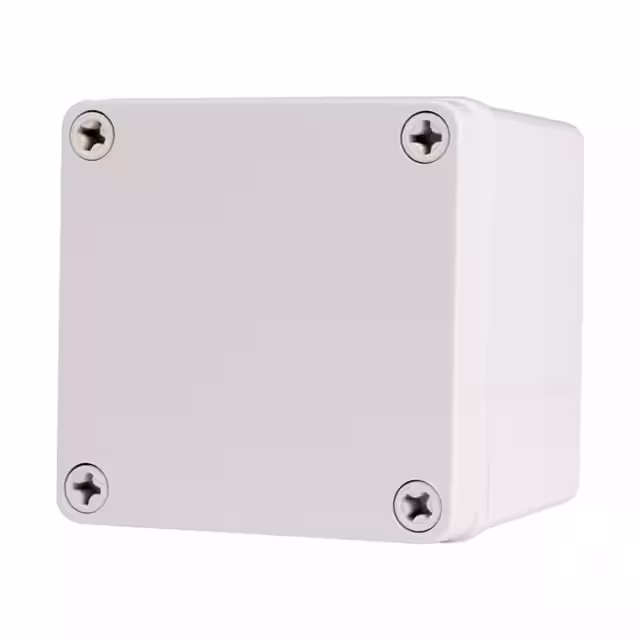

BC-CGS-101010BOX PLAS LGT GRY 3.94"L X 3.94"W Boxco |
2,827 |
|
数据手册 |
S | Bulk | Active | Box | 3.937" L x 3.937" W (100.00mm x 100.00mm) | 3.937" (100.00mm) | 15.5in² (100cm²) | Lift-Off Screw Cover | Plastic, Polycarbonate/Fiberglass | Light Gray | - | Flame Retardant, Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 5VA, UL94 V-0, UL94 HB |
|
BC-AGS-141709BOX ABS LGT GRY 6.69"L X 5.51"W Boxco |
3,033 |
|
数据手册 |
S | Bulk | Active | Box | 6.693" L x 5.512" W (170.00mm x 140.00mm) | 3.740" (95.00mm) | 36.9in² (238cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|
BC-AGS-142309BOX ABS LGT GRY 9.06"L X 5.51"W Boxco |
2,467 |
|
数据手册 |
S | Bulk | Active | Box | 9.055" L x 5.512" W (230.00mm x 140.00mm) | 3.740" (95.00mm) | 49.9in² (322cm²) | Lift-Off Screw Cover | Plastic, ABS | Light Gray | - | Sealing Gasket, Wall Mount | IP66, IP67, NEMA 4X,6, UL 508A | UL94 HB |
|

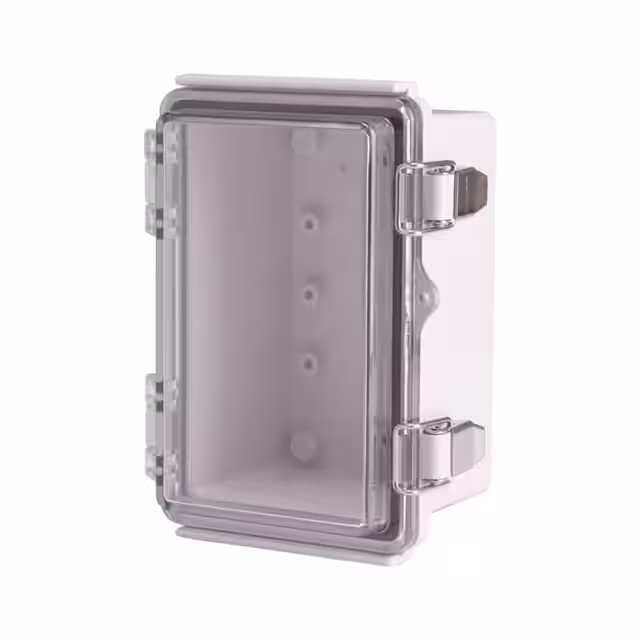

BC-ATP-101508BOX ABS CLEAR 5.91"L X 3.94"W Boxco |
2,191 |
|
数据手册 |
P | Bulk | Active | Box | 5.906" L x 3.937" W (150.00mm x 100.00mm) | 3.346" (85.00mm) | 23.3in² (150cm²) | Hinged Door, Stainless Steel Latch | Plastic, ABS Body, Polycarbonate Cover | Light Gray, Clear Cover | 0.126" (3.20mm) | Hinged, Latches, Lockable, Sealing Gasket | IP66, IP67, NEMA 4X,6 | UL94 HB |
